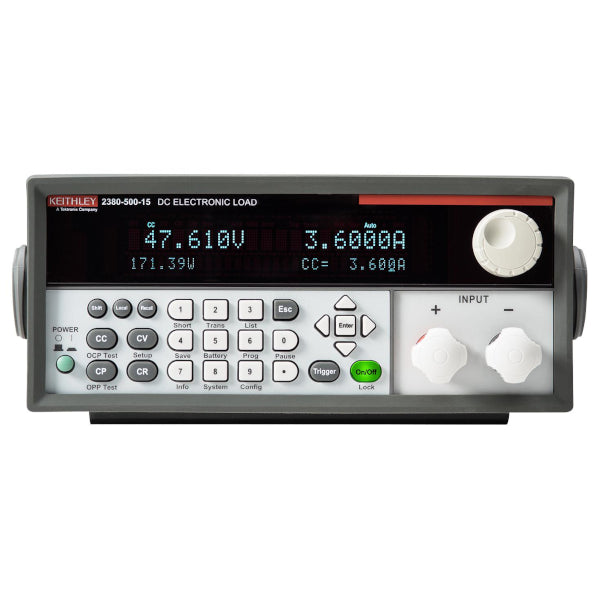

Keithley 2380-500-30 Programmable DC Electronic Load
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Number of Outputs - 1
- Maximum Voltage - 500 V
- Maximum Current - 30 A
- Connectivity - GPIB, USB, RS232
- Operation Modes - CV, CC, CR, CP
Discover the possibilities
More information
Description
Keithley 2380-500-30 Programmable DC Electronic Load
Series 2380 programmable DC Electronic Loads are single output, standalone loads with 200W, 250W and 750W models. Multiple operation modes with up to 25 kHz of dynamic cycling, superior voltage/current resolution and readback accuracy together with multiple interface choices make the Series 2380 ideal for testing a power source in your bench.
Features | Benefits |
| Multiple operation modes: constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CP) | Enable users to test their devices under multiple working modes using one instrument |
| 0.1 mV/0.01mA voltage/current readback resolution and 0.025%/0.05% voltage/current readback accuracy | Provides high confidence in the readings |
| Up to 25 kHz dynamic cycling mode with adjustable slew rate | Enable users to validate the transient performance of DC power sources when subjected to high speed load changes |
| List mode with up to 7 groups of list files | Provides a fast and accurate way to conduct complicated test steps with internal and external synchronization events |
| Diverse test modes: battery test mode, LED simulated load test mode, voltage rise/fall time measurement mode, over current/power protection test mode | Covers a wide range of applications using one instrument |
| Multiple built-in protection functions: over temperature protection (OTP), over voltage protection (OVP), over current protection (OCP), over power protection (OPP), reverse voltage protection (RVP) | Ensures the protection of the DUT and the Series 2380 electronic from damage |
| Built-in GPIB, USB, RS232 interfaces | Meet different test interface needs |
For more information: Tektronix
