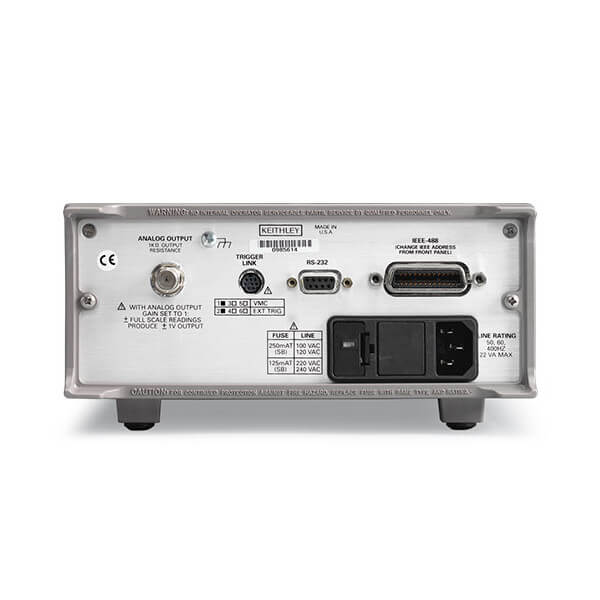

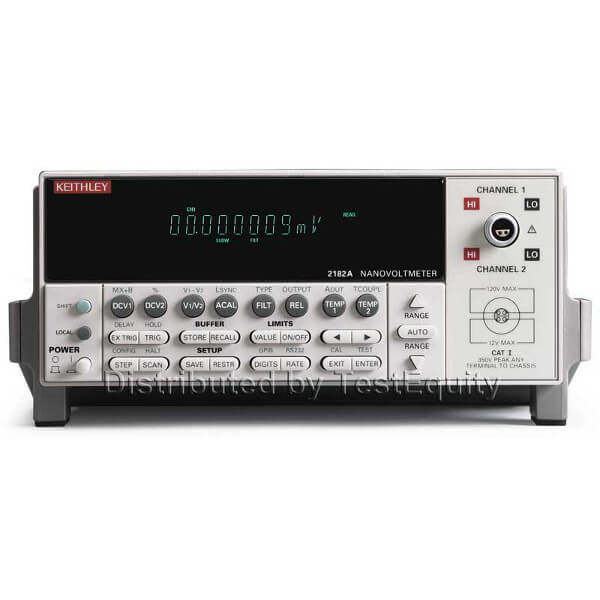

Keithley 2182A Nanovoltmeter
59.350,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Voltage - 1nV - 100V
- Temperature - -200°C - 1820°C
- Resistance - 10nΩ to 200MΩ (requires 6220 or 6221)
- Number of Channels - 2
- Buffer Size - 1,024rdgs
%0A%20%09Number%20of%20Channels%20-%202%0A%20%09Buffer%20Size%20-%201,024rdgs%0A
){kind=link}
Discover the possibilities
More information
Description
Keithley 2182A Nanovoltmeter
The two-channel Model Keithley 2182A Nanovoltmeter is optimized for making stable, low noise voltage measurements and for characterizing low resistance materials and devices reliably and repeatably. It provides higher measurement speed and significantly better noise performance than alternative low voltage measurement solutions. It offers a simplified delta mode for making resistance measurements in combination with a reversing current source, such as the Model 6220 or 6221.
Features |
Benefits |
| 1nV sensitivity | Provides accurate, ultra-low voltage measurements. |
| Typically just 15nVp-p noise at 1s response time, 40–50nV p-p noise at 60ms | Ensures low noise levels over a wide range of useful response times. |
| Dual channels | Supports measuring voltage, temperature, or the ratio of an unknown resistance to a reference resistor. |
| Measurement cycle is synchronized to the power line AC cycle | Minimizes variations due to readings that begin at different phases of the line cycle. The result is exceptionally high immunity to line interference with little or no shielding and filtering required. |
| Built-in thermocouple linearization and cold junction compensation | Simplifies making accurate temperature measurements. |
| Internal polarity reversal measurement technique | Eliminates thermal error sources. |
| Optimized for use with Model 6220/6221 current sources | Allows both instruments to be operated like a single instrument when making differential conductance, pulsed, and resistance measurements. |
| Delta mode current reversal measurement technique when combined with the 6220 or 6221 | Enables resistance measurements down to 10nΩ. |
| 2182A/6221 combination synchronizes signal pulses and measurements | Minimizes the amount of power dissipated into a temperature-sensitive DUT. |
For more information: Tektronix
Click here for related products: Digital Multimeters
Documents
Options
Keithley 2182A Nanovoltmeter
| Datasheet | Accessory | Description |
|---|---|---|
| View Datasheet | 2000-BENCHKIT | MULTI MODEL BENCH CONVERSION KIT |
| View Datasheet | 2107-30 | LOW THERMAL INPUT CABLE |
| View Datasheet | 2107-4 | LOW THERMAL INPUT CABLE |
| 2107-50 | LOW THERMAL CABLE, 50FT, (15M) | |
| View Datasheet | 2182-KIT | LOW THERMAL CONNECTOR KIT |
| View Datasheet | 2188 | LOW THERMAL SHORTING PLUG |
| View Datasheet | 4288-1 | SINGLE FIXED RACK MOUNTING KIT |
| View Datasheet | 4288-5 | RACK KIT |
| View Datasheet | 7009-5 | 5 FT. SHIELDED RS-232 CABLE |
