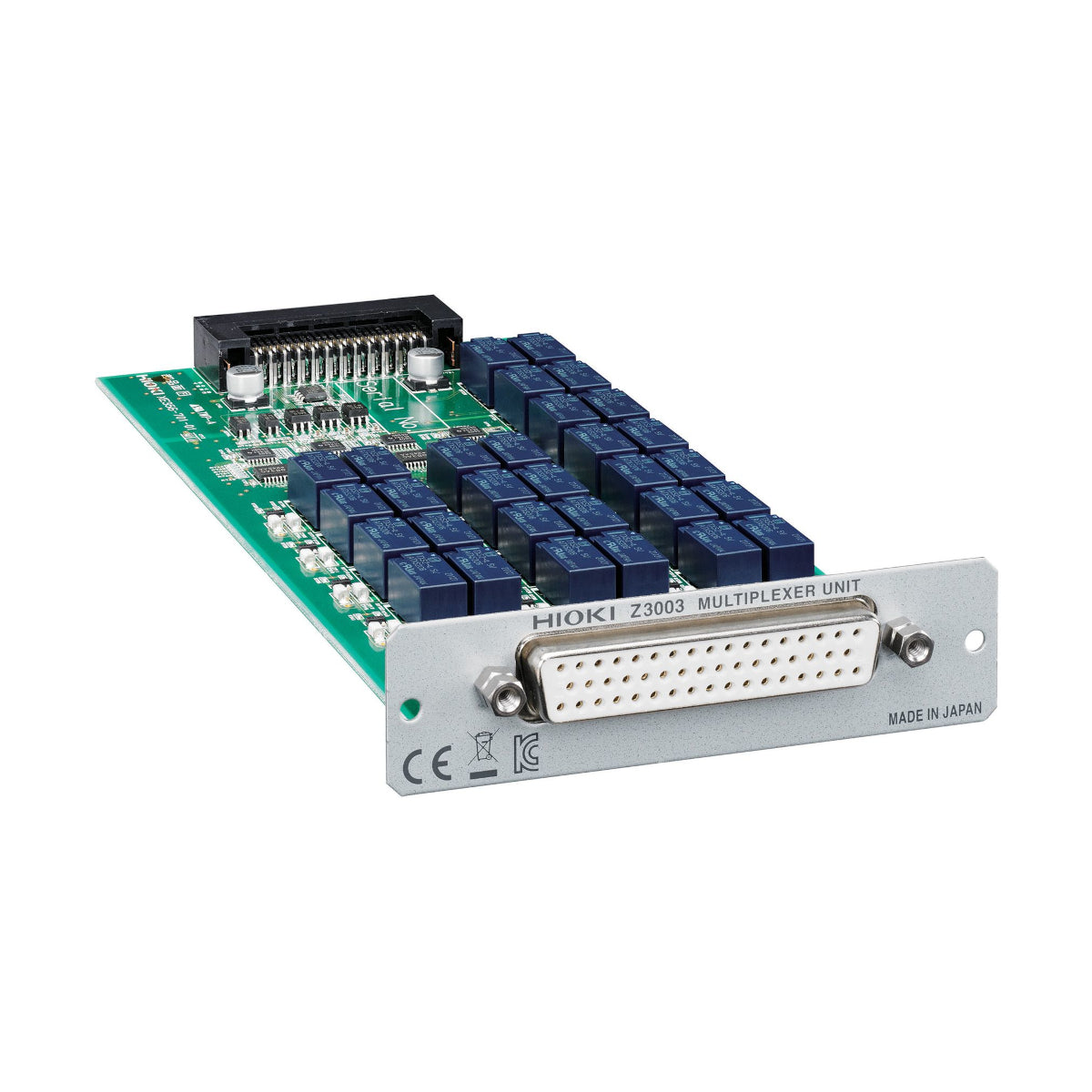

Hioki Z3003 Multiplexer Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Measurement Channels: > 4-terminal measurement: 10 channels > 2-terminal measurements: 21 channels
- Contact Type: Mechanical relay
- Maximum Allowable Voltage: 30 V RMS, 42.4 V peak, or 60 V DC
- Maximum Allowable Power: 30 W (DC, resistive load)
- Operating Temperature: 0°C to 40°C
- Connector: D-sub 50-pin receptacle
- Dimensions: 92 mm (W) × 24.5 mm (H) × 182 mm (D)
- Weight: 180 g
Discover the possibilities
More information
Description
The Z3003 Multiplexer Unit is a versatile module designed for multipoint measurement by freely combining measurement terminals. It is the optional multiplexer unit for Hioki resistance meters such as the RM3545-02 and RM3545A-02, providing 10 channels of 4-terminal measurements for comprehensive multi-point signal assessments. The Z3003 can be embedded into compatible devices, making it ideal for various applications requiring high-precision and flexible measurement configurations.
Specifications
Documents
Options
Video
The Z3003 Multiplexer Unit is a versatile module designed for multipoint measurement by freely combining measurement terminals. It is the optional multiplexer unit for Hioki resistance meters such as the RM3545-02 and RM3545A-02, providing 10 channels of 4-terminal measurements for comprehensive multi-point signal assessments. The Z3003 can be embedded into compatible devices, making it ideal for various applications requiring high-precision and flexible measurement configurations.
