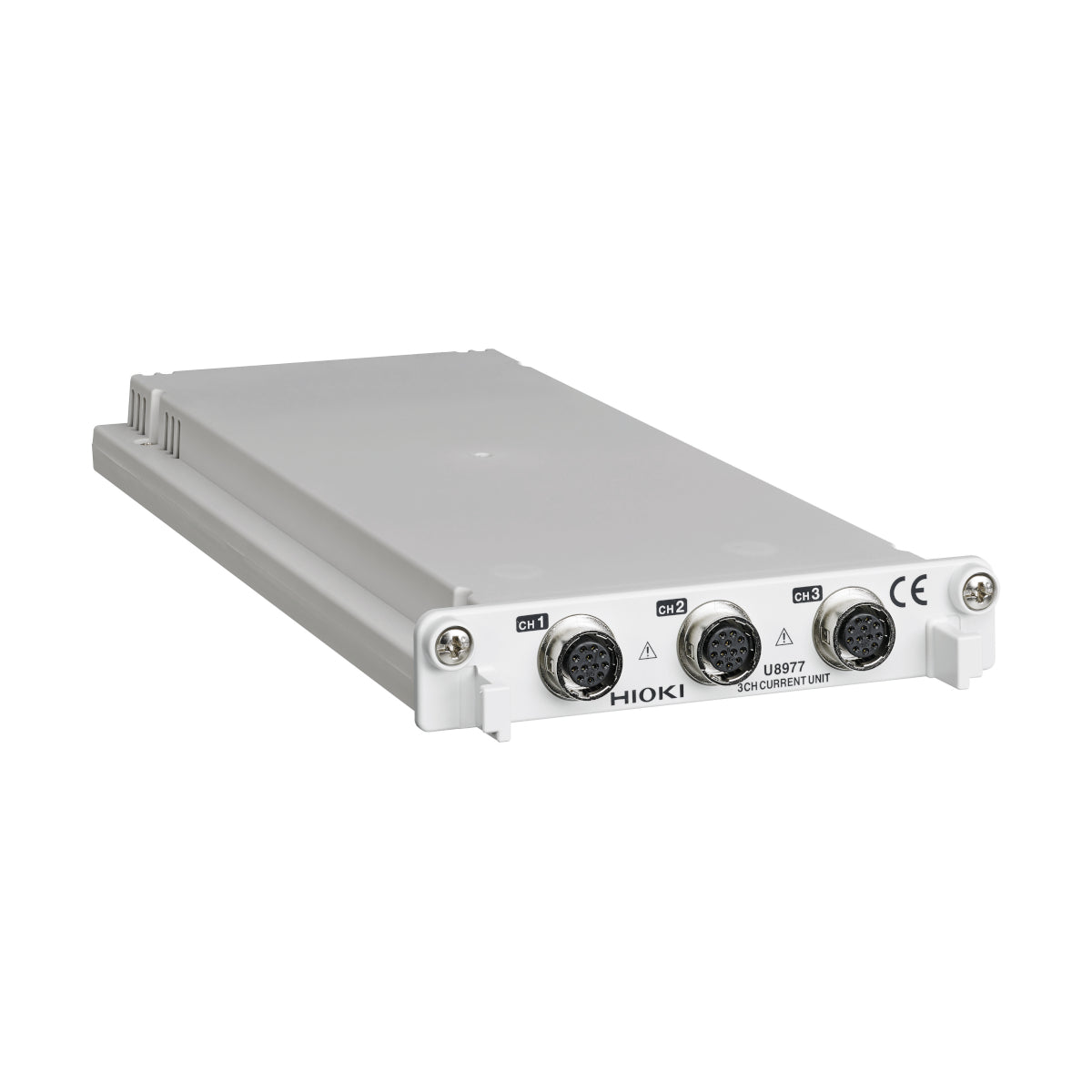

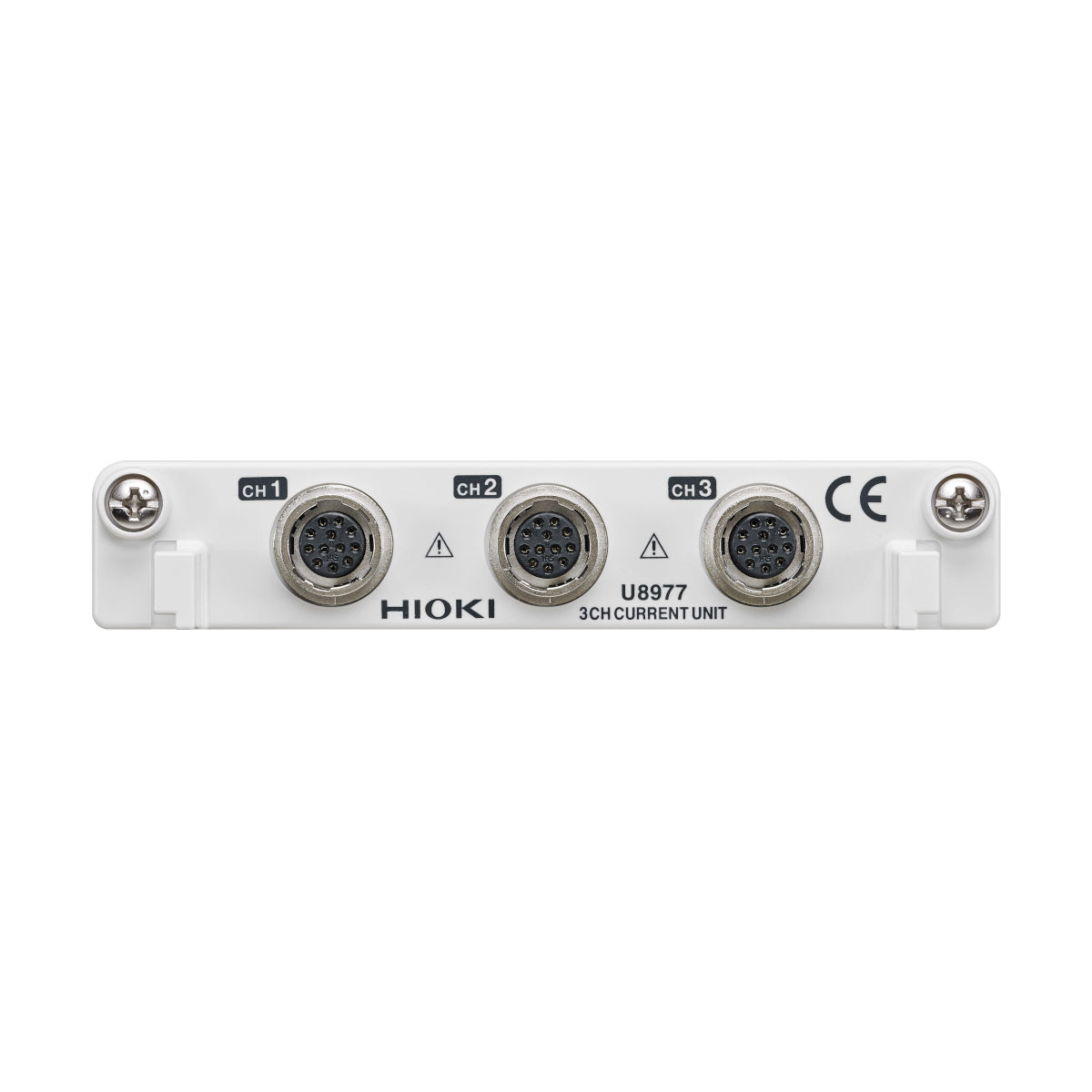

Hioki U8977 3CH Current Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Dedicated Current Input Module Capable of Supplying Power to Current Sensors
Discover the possibilities
More information
Description
Key Features
- Achieve large current measurement with high accuracy
- 3 channel input
- Automatically recognize and scale simply by connecting the sensor
- High speed sampling of 5 MS/s ensures high-speed phenomena are captured
- High 16-bit A/D resolution
- For Memory HiCorder MR6000, MR6000-01（ver. 2.10 or later), MR8740T (ver. 2.00 or later), and MR8847A （ver. 2.00 or later)
Single solution for 3-phase current measurement
The U8977 delivers a sampling rate of 5 MS/s, frequency characteristics of 2 MHz, 16-bit A/D resolution, and DC accuracy of 0.3% f.s. to facilitate wideband, high-precision current measurement using Hioki current sensors.
Automatic configuration of sensor scaling values
When you connect a current sensor, the MR6000 will automatically detect the model and set the appropriate scaling value.
Power is supplied from the current unit
Since current sensor power is supplied directly from the current unit, there’s no need to provide a sensor power supply.
Specifications
Basic specifications
Accuracy guaranteed: 1 year
| Measurement functions | Number of channels: 3, Current measurement with optional current sensor | |||||
|---|---|---|---|---|---|---|
| Input terminals | Dedicated connector terminal (ME 15 W) (Input resistance 1 MΩ, GND is common with the recorder main unit) | |||||
| Applicable current sensor | - Directly connectible current sensors 9272-05, CT6830, CT6831, CT6841A, CT6843A, CT6844A, CT6845A, CT6846A, CT6862-05, CT6863-05, CT6872, CT6872-01, CT6873, CT6873-01, CT6875A, CT6875A-1, CT6876A, CT6876A-1, CT6877A, CT6877A-1, CT6904, CT6904A, CT6904A-1, CT6904A-2, CT6904A-3 - Current sensor to be connected using the optional CT9920 Conversion Cable {convert PL14 terminal to ME15W (12-pin) terminal} CT7631, CT7636, CT7642, CT7731, CT7736, CT7742, CT7044, CT7045, CT7046 | |||||
| Measurement range | - For the directly connectible current sensors, the instrument automatically recognizes the rating of the current sensor. 200 mA, 400 mA, 1 A, 2 A, 4 A, 10 A (rating: 2 A) 2 A, 4 A, 10 A, 20 A, 40 A, 100 A (rating: 20 A) 4 A, 10 A, 20 A, 40 A, 100 A, 200 A (rating: 50 A) 20 A, 40 A, 100 A, 200 A, 400 A, 1000 A (rating: 200 A) 40 A, 100 A, 200 A, 400 A, 1000 A, 2000 A (rating: 500 A) 100 A, 200 A, 400 A, 1000 A, 2000 A, 4000 A (rating: 1000 A) - For the current sensors that require Model CT9920 for connection, choose a conversion rate or a model number. 200 A (CT7631, CT7731) 200 A, 400 A, 1000 A (CT7636, CT7736) 2000 A, 4000 A (CT7642, CT7742) 2000 A, 4000 A, 10000 A (CT7044, CT7045, CT7046) 2000 A, 4000 A, 10000 A, 20000 A, 40000 A, 100000 A (0.1 mV/A) 200 A, 400 A, 1000 A, 2000 A, 4000 A, 10000 A (1 mV/A) 20 A, 40 A, 100 A, 200 A, 400 A, 1000 A (10 mV/A) 2 A, 4 A, 10 A, 20 A, 40 A, 100 A (100 mV/A) 0.2 A, 0.4 A, 1 A, 2 A, 4 A, 10 A (1000 mV/A) | |||||
| Measurement resolution | 1/32000 of measurement range (using 16-bit A/D conversion) | |||||
| Highest sampling rate | 5 MS/s (3 channel simultaneous sampling) | |||||
| Measurement accuracy | ±0.3% f.s. (with 5 Hz filter, add accuracy and characteristics of the current sensor to be used) | |||||
| Frequency characteristics | DC to 2 MHz ±3 dB | |||||
| Input coupling | DC/GND | |||||
| Low pass filter | 5/ 500/ 5 k/ 200 kHz | |||||
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) | |||||
| Included accessories | None | |||||
