Hioki U8556 Current Module
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- 5 input channels with individual signal conditioning
- 1 ms simultaneous update interval
- Operating temperature -20 oC to 55 oC
- Up to 4 modules per LR8450 Series Data Logger
- Can be combined with a large variety of current sensors from 2 A to 6000 A
Discover the possibilities
More information
Description

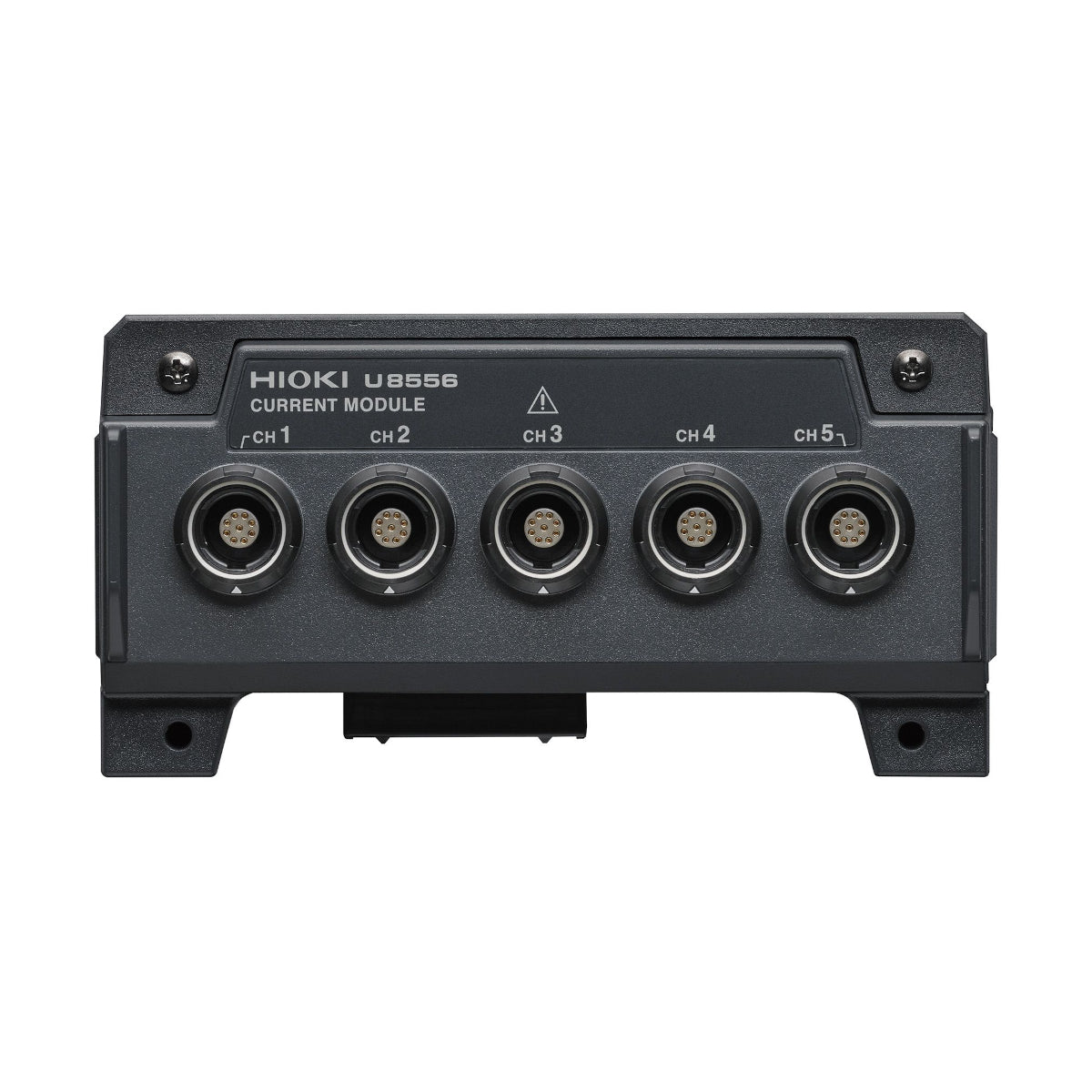

5-channel plug-in interface and signal conditioning module for the LR8450 Series Data Logger to connect HIOKI Current Sensors with a PL14 connector
USPs:
- Individual scaling for each current sensor
- Current logging from 100 µA to 2 kA DC in one device
- Up to 20 channels precision current logging with 1 ms update interval
- High-voltage Electric Vehicle (EV) battery current logging and low power circuit current logging possible with a single device
Applications:
- Development and analysis tool for improving the fuel efficiency of EVs
- Consumption monitoring of EV high-voltage batteries and low-voltage circuits like power steering, seat heating, interior lighting etc.
- Optimizing the overall energy consumption of EVs to extend the driving range
- Optimizing the overall energy consumption of electric construction vehicles or electric agricultural vehicles to extend the time between charging
The U8556 Current Module is the interface between up to 5 clamp-on current sensors and the LR8450 Series Data logger. Each input channel has its own signal conditioning which enables individual scaling and simultaneous 1 ms recording. It is exclusively designed to add current logging functionality to the highly versatile LR8450 Series Data Loggers. Up to four U8556 modules can be connected to a single LR8450 Series Data Logger.
The module can be used with the ultra-compact yet high-precision current sensors CT7812 and CT7822 as well as with a variety of other HIOKI current sensor types reaching from 2 A to 6 kA. These can be used in any combination in accordance with the application and test requirements, providing extended usability of the data logger. All temperature-compensated https://www.hioki.com/euro-en/products/multichannel-data-loggers/multichannel/id_1266366 HIOKI current sensors with a PL14 connector are suitable to be used in combination with the new U8556 Current Module.
