Hioki ST9000 Discharge Detection Upgrade
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Optional function for the ST4030A Impulse Winding Tester to detect microscopic partial discharges obscured by noise. Detect pseudo-shorts with high accuracy
Discover the possibilities
More information
Description
The ST9000 Discharge Detection Upgrade for the Impulse Winding Tester ST4030A provides detection enhancements to spot discharge that is buried in noise.
Key Features
- Option additional function for ST4030A

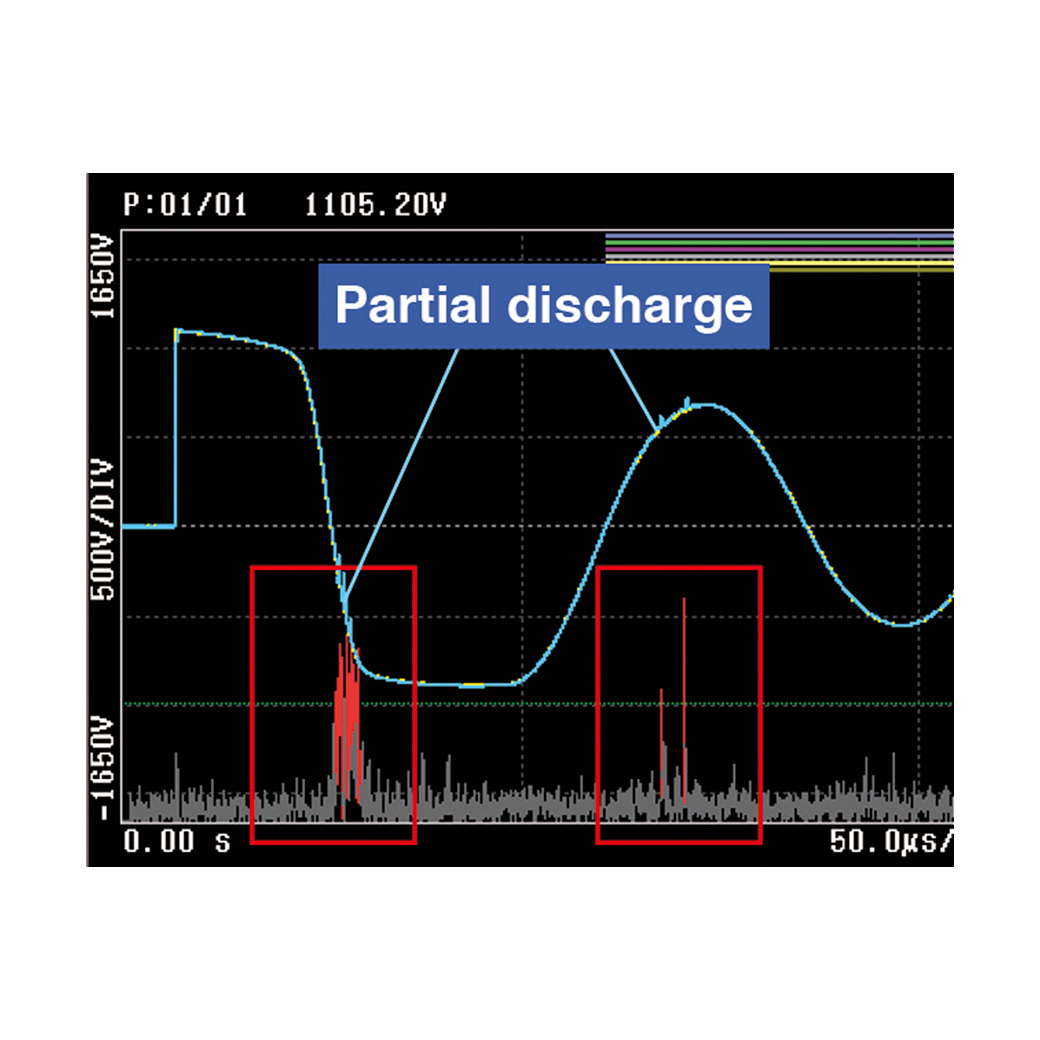

- Detect microscopic partial discharges obscured by noise to determine defective insulation (pseudo-shorts)
- Hioki original filter (*1)
- Peripheral equipment (antenna for discharge detection etc.) not required to easily detect discharge
*1:Noise components within the high frequency components appearing within the entire response waveform are removed to extract only the partial discharge component in order to make a pass/fail determination. Jointly developed with Aisin AW Co., Ltd.
Specifications
Documents
Datasheet:
Options
Model No. (Order Code)
| ST9000 | Factory option firmware for the ST4030A |
|---|
Note: The Discharge Detection Upgrade ST9000 is a factory option for the Impulse Winding Tester ST4030A. Please specify at the time of order.
Video
The ST9000 Discharge Detection Upgrade for the Impulse Winding Tester ST4030A provides detection enhancements to spot discharge that is buried in noise.
Key Features
- Option additional function for ST4030A
- Detect microscopic partial discharges obscured by noise to determine defective insulation (pseudo-shorts)
- Hioki original filter (*1)
- Peripheral equipment (antenna for discharge detection etc.) not required to easily detect discharge
*1:Noise components within the high frequency components appearing within the entire response waveform are removed to extract only the partial discharge component in order to make a pass/fail determination. Jointly developed with Aisin AW Co., Ltd.
Datasheet:
Model No. (Order Code)
| ST9000 | Factory option firmware for the ST4030A |
|---|
Note: The Discharge Detection Upgrade ST9000 is a factory option for the Impulse Winding Tester ST4030A. Please specify at the time of order.
