Hioki MR8848 Memory HiCorder
Expected delivery time is 4-5 weeks
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Engineered for Extremes, Trusted for Precision
Discover the possibilities
More information
Description
Infrastructure such as electric power facilities, data center UPSs, and railroads must operate with stability and zero downtime. High-precision waveform recording with the Memory HiCorder is essential to ensure safe and reliable operation of critical infrastructure.
Sturdy High-Speed DAQ System

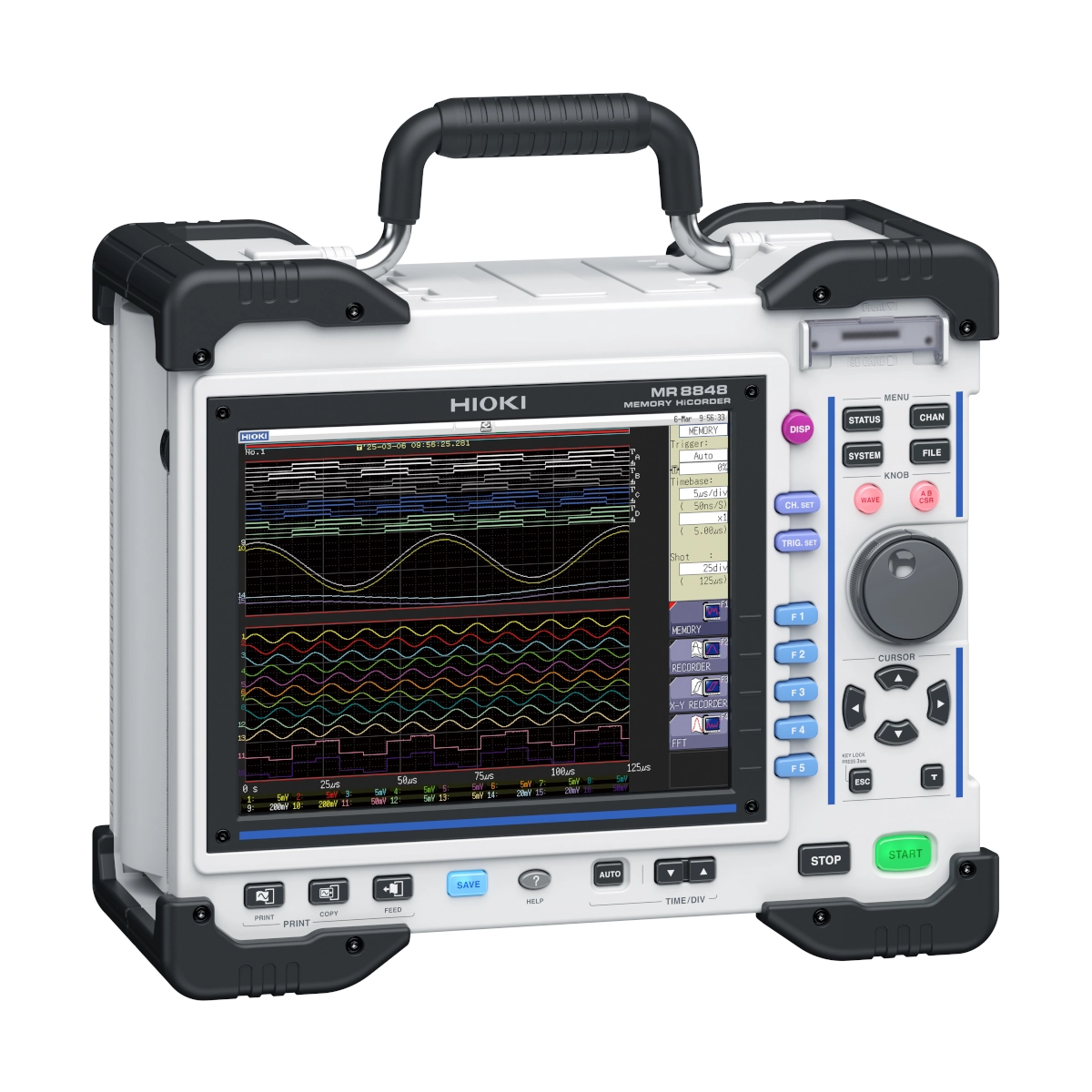

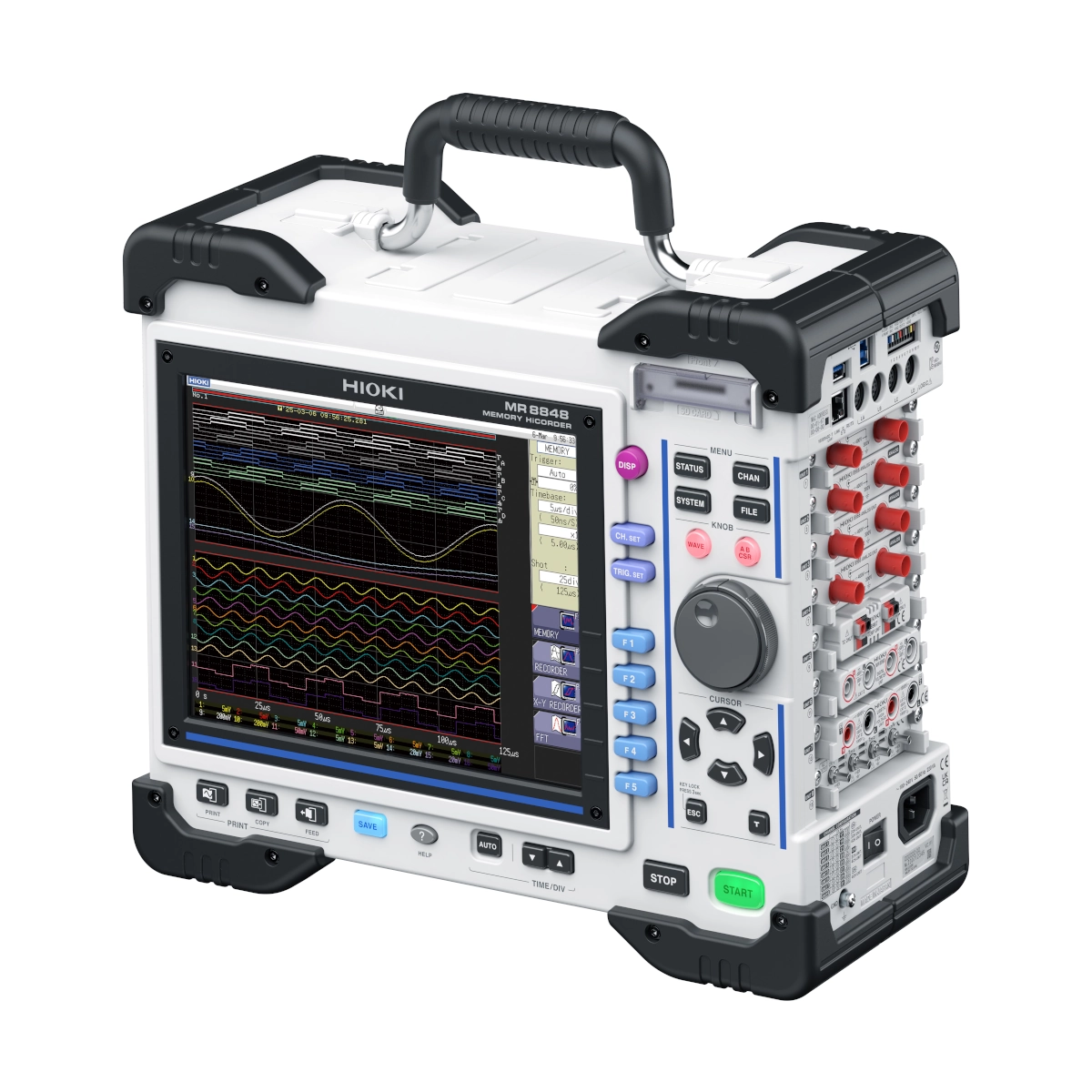

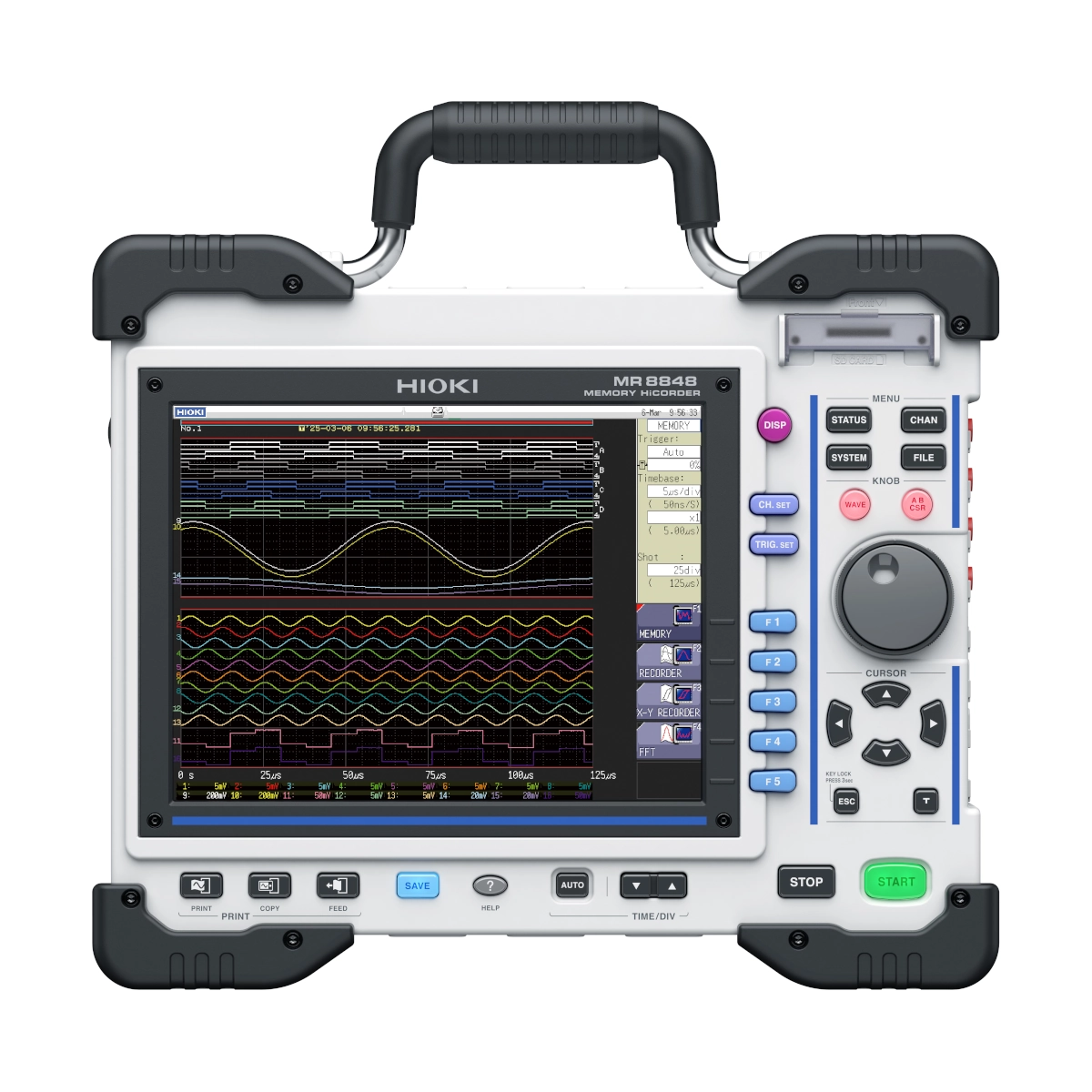

The Memory HiCorder MR8848 is a recording device used in fields such as power plants, railways, and industrial plants to measure transient phenomena.
The robust housing design has passed rigorous tests such as drop tests and vibration tests.
With high-speed sampling that captures the voltage and current waveforms of inverters, large-capacity memory that stores entire events, and multi-channel measurements that allow for the verification of correlations between multiple signals, it ensures that you won't miss critical waveforms.
Key Features
- Work anywhere with a durable, shock-resistant, portable design
- Safely measure with isolated channels
- Handle complex tasks using 32 analog & 64 logic channels
- Record for extended periods with high-capacity memory
- Make pass/fail judgments with waveform & numerical analysis
- Check printed waveforms on-site using a built-in printer (optional)
Note: MR8848 cannot operate alone. You need to purchase and install one or more optional input modules, etc.
For Evaluation Testing and Troubleshooting
Robust Housing

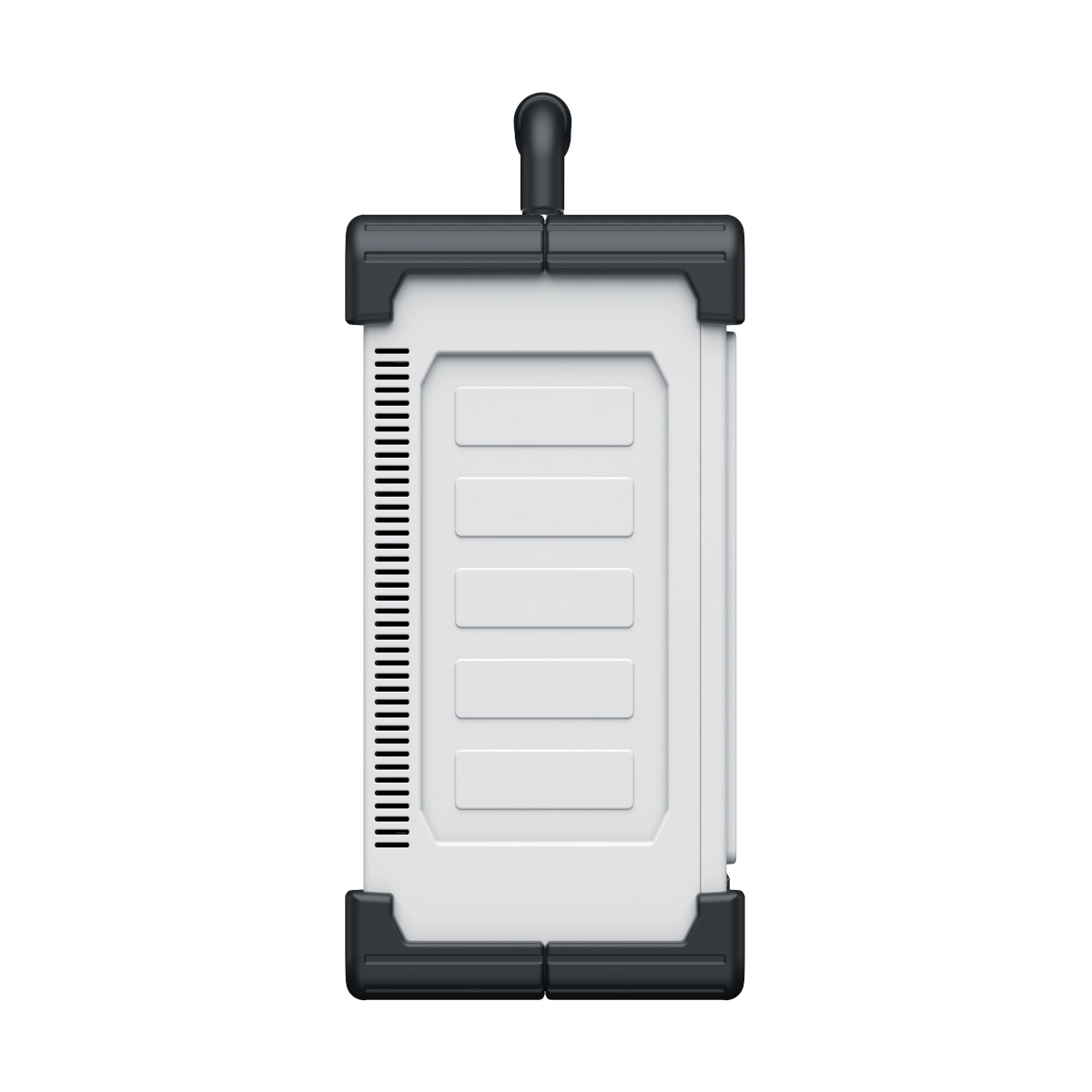

To minimize the risk of failure due to drops and shocks, the Memory HiCorder MR8848 employs a rugged housing with protectors for enhanced durability.
Safe and Reliable Measurements
When inspecting lines of differing electrical systems simultaneously (e.g., power lines and signals), short-circuit are a serious risk. Unlike oscilloscopes, memory HiCorders have isolated channels, so short-circuit accidents will not occur between differing circuits.
Correlation Analysis of Various Physical Phenomena
Troubleshooting and analysis can be more in depth than ever before through simultaneous recording of various physical phenomena.
The Memory HiCorder MR8848 records and analyzes multiple physical parameters—including voltage, current, temperature, vibration, pressure, and strain—for identifying correlations and root causes.

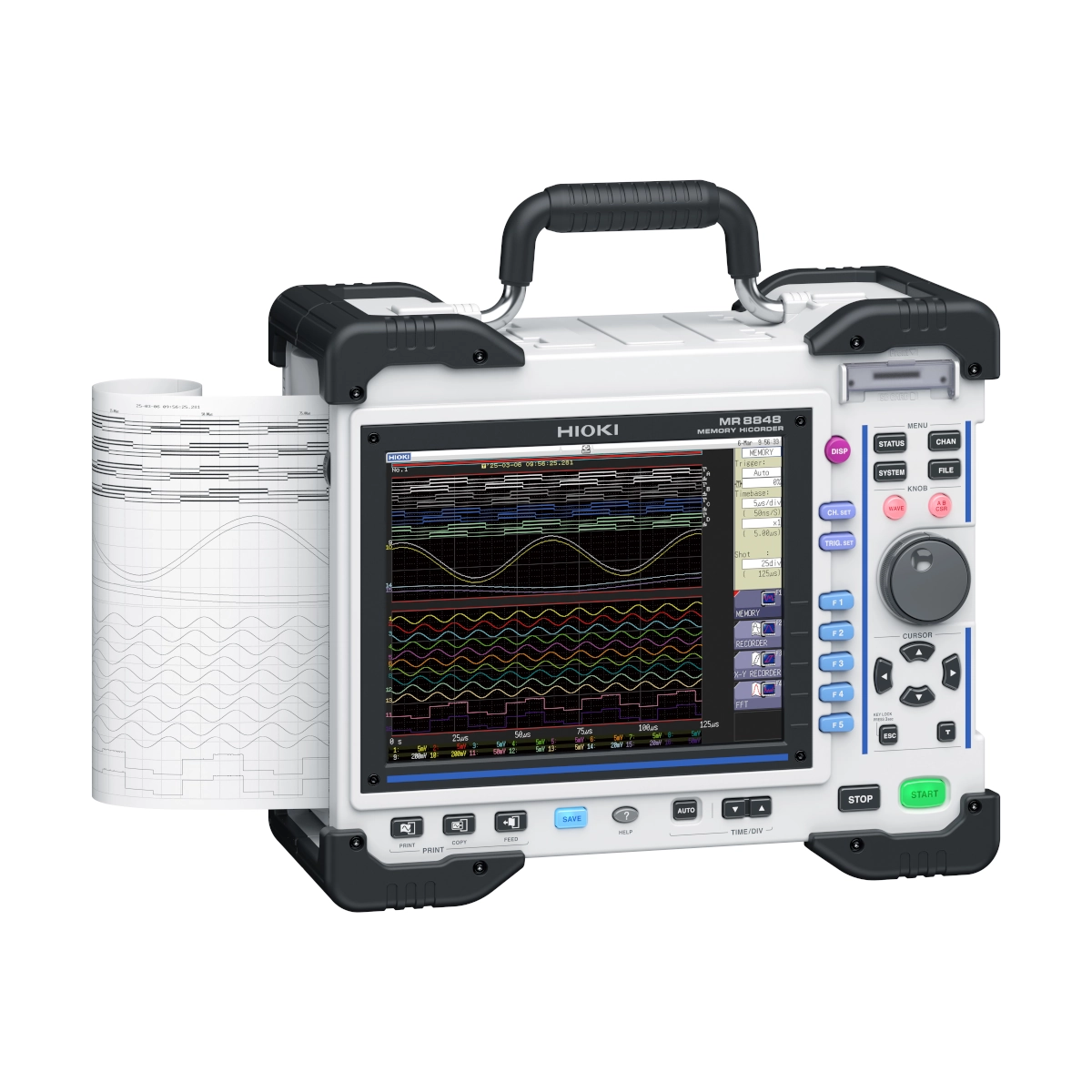

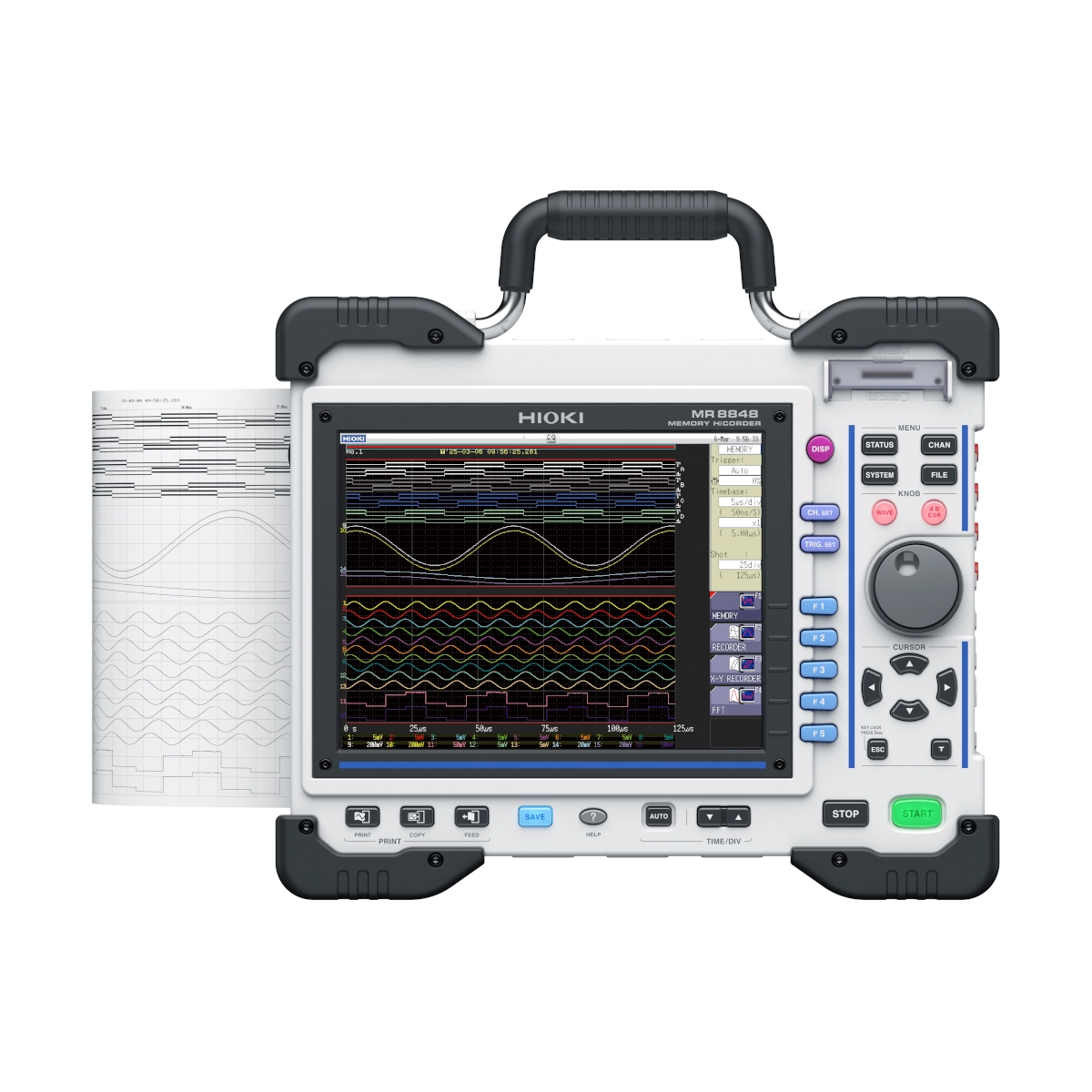

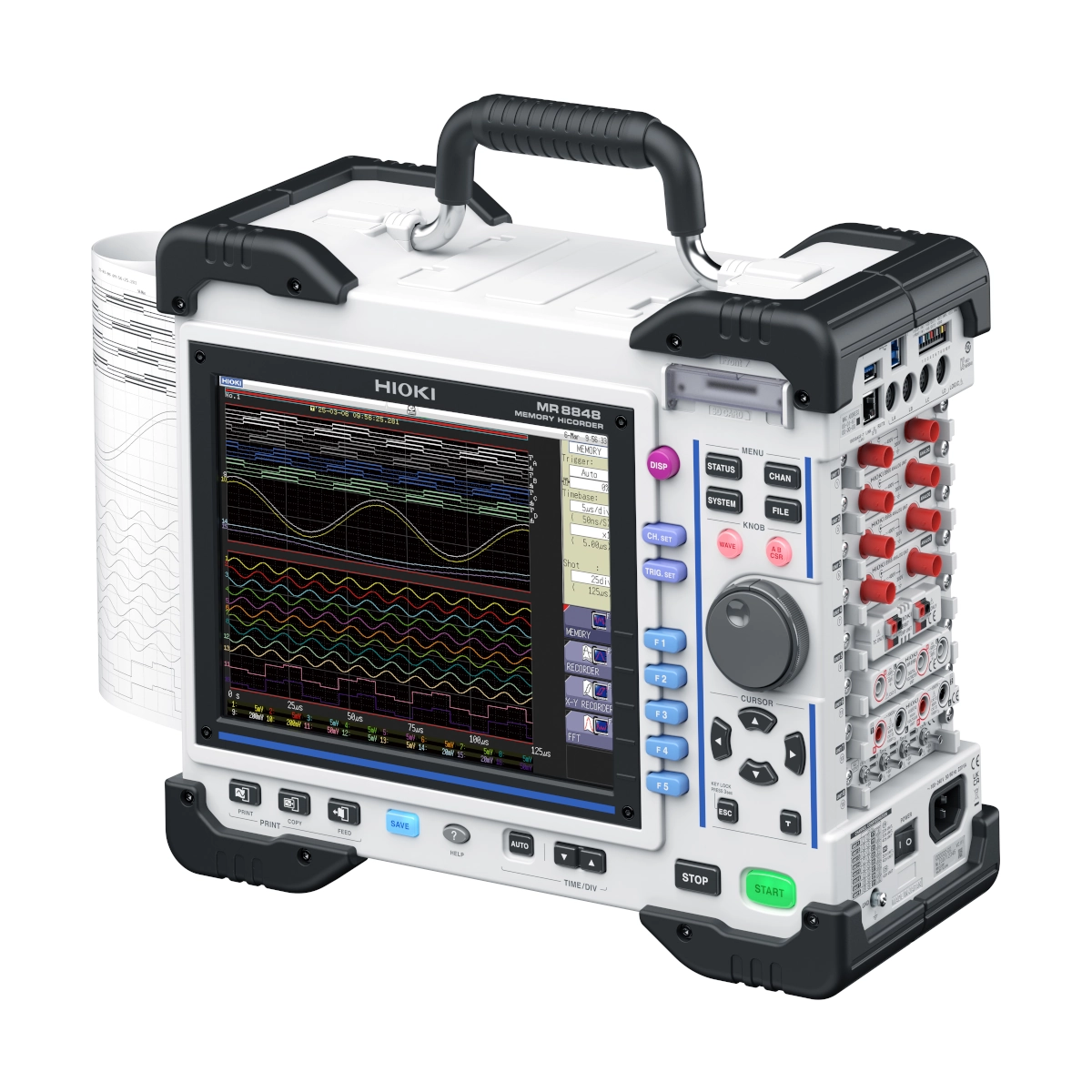

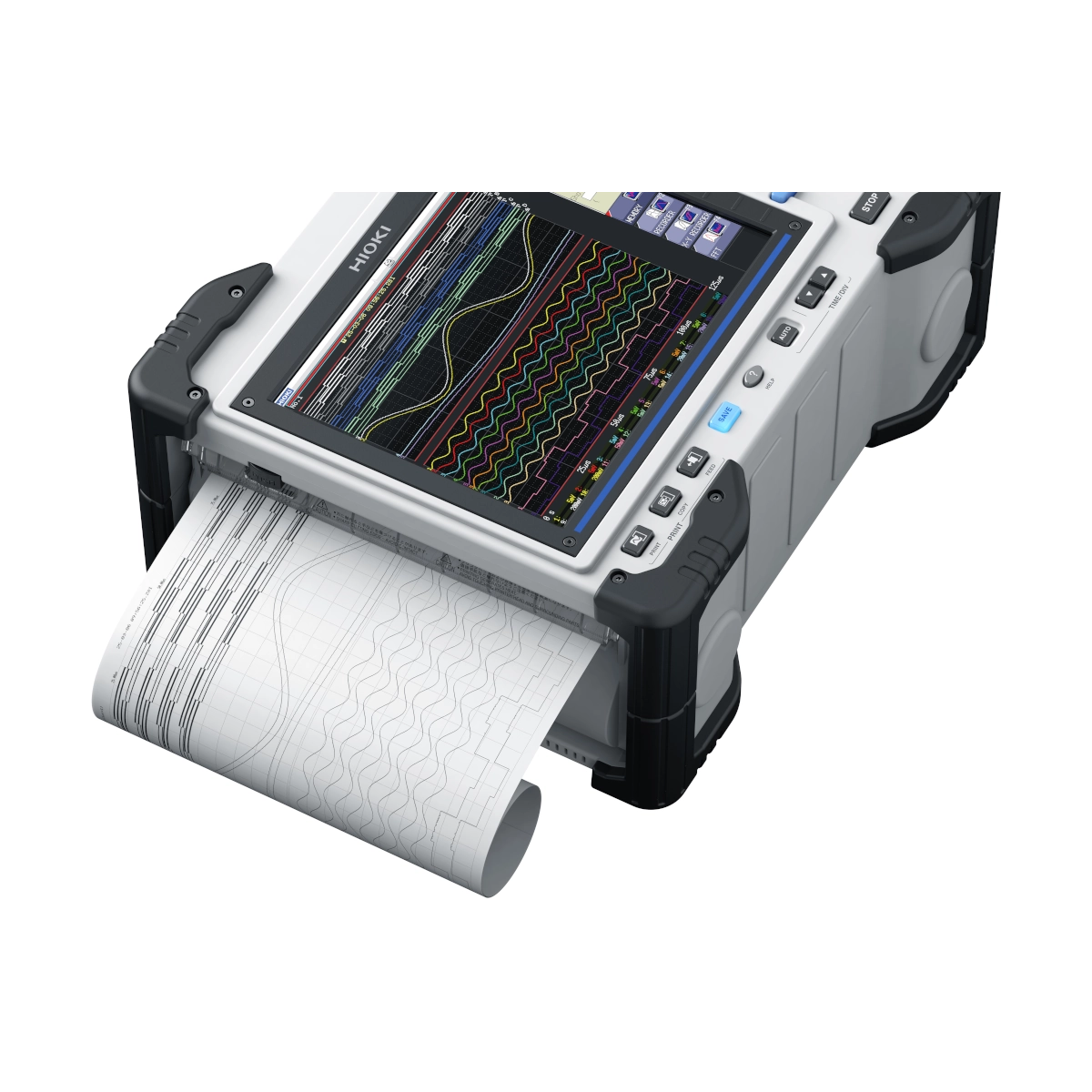

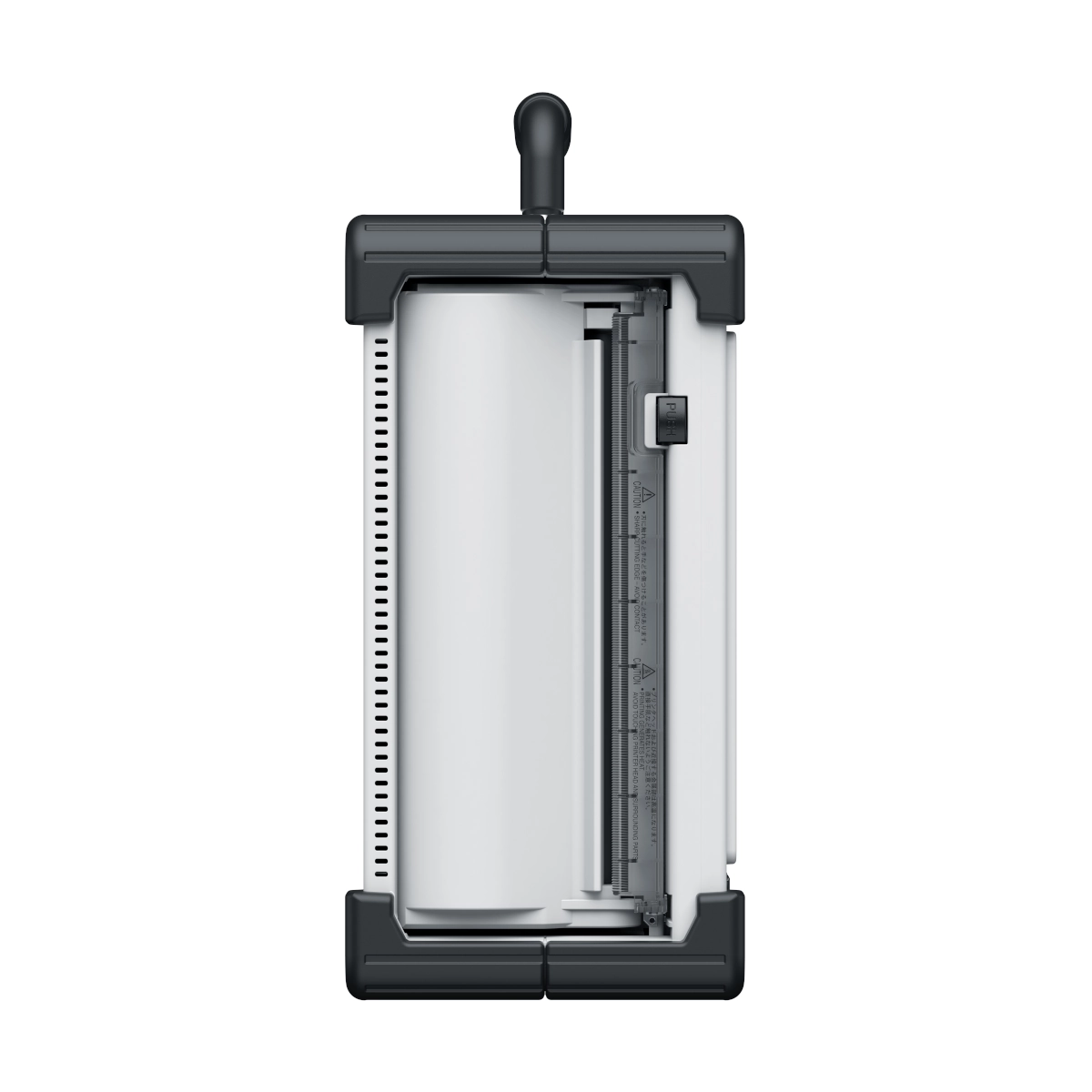

Onsite, Tamper-Proof Printing (Factory-Installed Option)
The factory-option printer lets you immediately print and share tamper-proof hard copies of your measurements right at the site, so that data cannot be tempered with.
Record Long-Duration Waveforms with High-Capacity Storage
Long-term waveform recording becomes possible by storing data on the large-capacity 1 TB SSD (U8334) with the Direct Write to Storage option (MR9001-01).
For example, in railway vehicle measurement, the Memory HiCorder will record over 10 parameters at a sampling rate of 10 µs/S for more than an hour.
Specifications
Basic specifications
Accuracy guaranteed: 1 year
| Measurement functions | Memory function (waveform recording), Recorder function (peak/trough recording), X-Y Recorder function, FFT function |
|---|---|
| Max. number of channels | 16 ch analog + 16 ch logic 32 ch analog + 16 ch logic (when U8975 or U8978 × 8 is attached) 10 ch analog + 64 ch logic (when main unit logic + Logic Unit 8973 × 3 is attached) 20 ch analog + 64 ch logic (when U8975 or U8978 × 5 + main unit logic + Logic Unit 8973 × 3 is attached) |

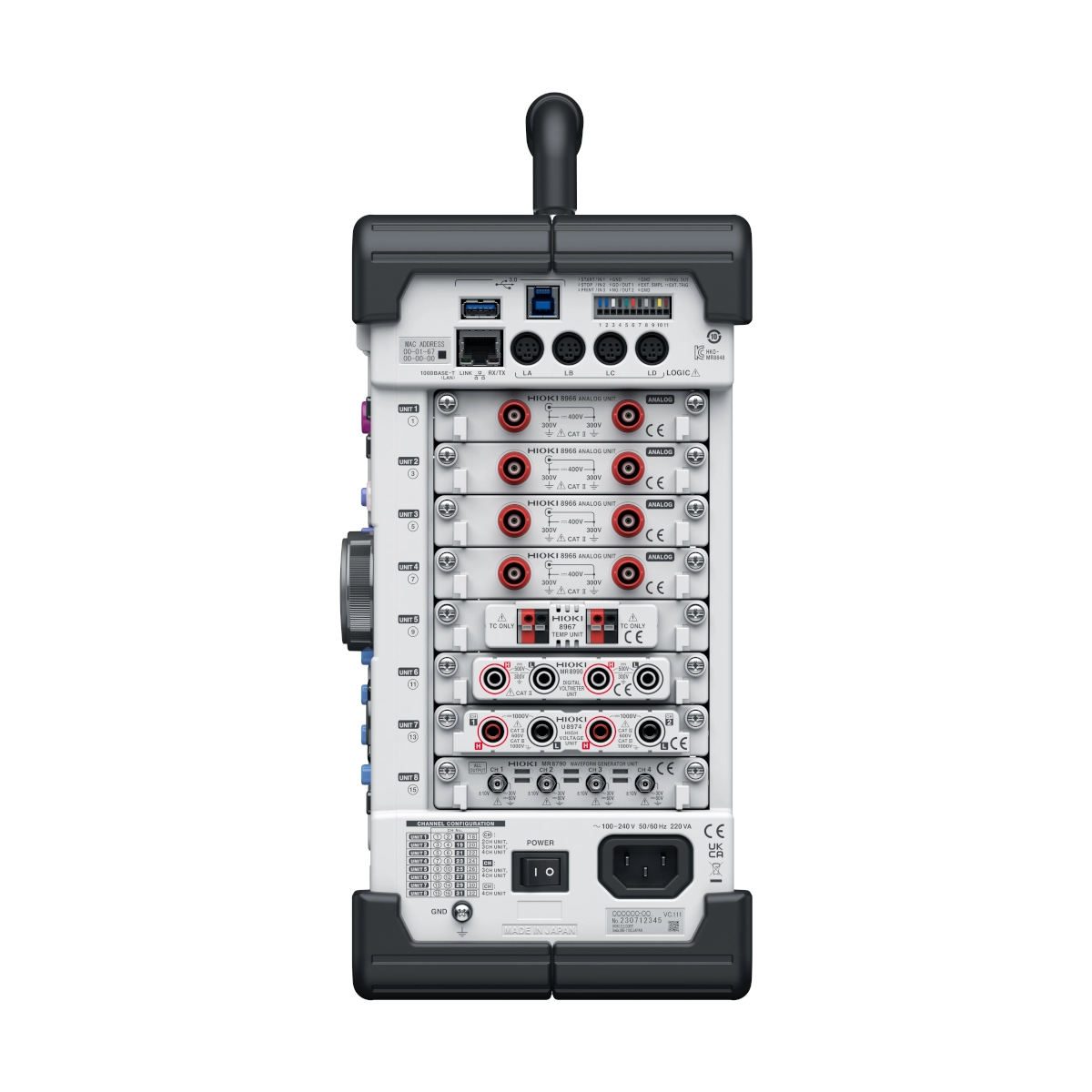

| Module slots | Up to 8 modules Restrictions: Current Unit 8971: up to 4 modules can be installed. Logic Unit 8973: up to 3 modules can be installed. 3CH Current Unit U8977: up to 3 modules can be installed. |
| Number of main unit logic channels | 16 (The GND of the logic probe input connector is common with the main unit GND) When the Digital Voltmeter Unit MR8990 is installed in Unit 1 and 2, the main unit logic cannot be used. Following restrictions when using the main unit logic (when logic measurement is turned ON): - The measurement resolution of the modules installed in Unit 1 and 2 will be limited to 12 bits. - Frequency modules installed in Unit 1 and 2 cannot be used. |
| Max. sampling speed | 20 MS/s for simultaneous use of all channels (when using the Analog Unit 8966) 10 MS/s for external sampling |
| Memory capacity | Total 512 megawords (no memory expansion) (16 megawords/ch using 32 analog channels, 256 megawords/ch using 2 analog channels) |
| Power supply | 100 V to 240 V AC, 50/60 Hz, 10 V to 28 V DC (when using the DC Power Unit 9784) |
| Max. rated power | 130 VA (220 VA when using the Printer Unit U8351) |
| External interfaces | LAN, USB, external control terminals |
| External storage | SD card slot, built-in drive (1 TB, factory-installed option), USB flash drive |
| Printer | When the factory-installed option Printer Unit U8351 is installed. Thermal recording method, use the Recording Paper 9231, recording speed 50 mm/s |
| Other functions | Trigger, numerical calculation, waveform calculation, storage partitioning, cursor measurement, monitor, position display (VIEW), waveform evaluation, waveform generation |
| Dimensions and weight | Approx. 351W × 261H × 140D mm (13.8W × 10.3H × 5.5D in.) (excluding protrusions) Approx. 365W × 307H × 160D mm (14.4W × 12.1H × 6.3D in.) (including protrusions) Approx. 6.9 kg (15.2 lbs.) (main unit only) Approx. 7.4 kg (16.3 lbs.) (when the Printer Unit U8351 is installed) |
| Included accessories | Startup Guide × 1, Operating Precautions × 1, input cord label × 1, power cord × 1, Recording Paper 9231 (when Printer Unit U8351 is installed) × 1, roll paper attachment (when Printer Unit U8351 is installed) × 1 |
