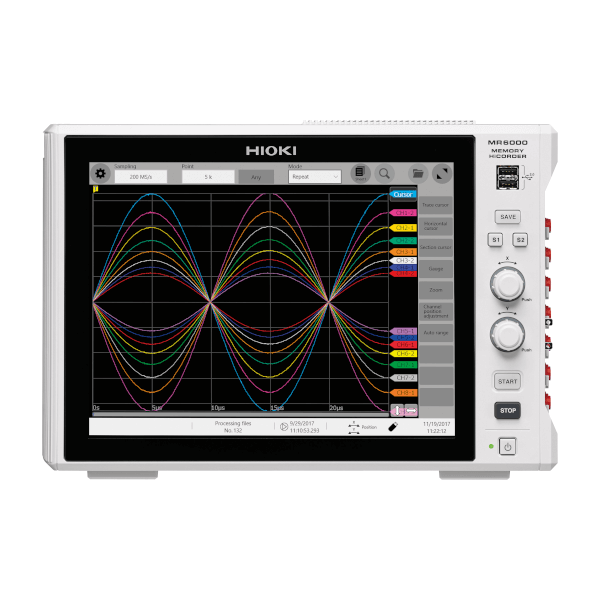

Hioki MR6000 Memory HiCorder
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- 24 bit A/D resolution
- 32 different signals
- 200 MS/s sampling speed
- 1000 V DC isolated inputs
Discover the possibilities
More information
Description
Hioki MR6000 Memory HiCorder
The Hioki MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen. World class specifications, operability and design - Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording.
Key Features
• Work efficiently and intuitively using the MR6000’s large touch panel
• Capture momentary phenomena by performing isolation measurement at up to 200 MS/s (when using the High Speed Analog Unit U8976)
• Enjoy a stress-free user experience thanks to dramatically faster saving of data
• Save data in real time while measurement continues.
• Take advantage of new functionality added by the latest firmware update (April 2020)
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
MR6000 | MR6000-01 | |
Additional function | N/A | Real-time waveform calculation, Digital Filter calculation |
Number of input units | Max. 8 units | |
Number of channels | Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) | |
Measurement ranges (20 div full-scale) | 10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range | |
Max. allowable input | 400 V DC (when using the U8976), 200 V DC (when using the U8975) | |
Frequency characteristics | DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975) | |
Max. sampling rate | 200 MS/s, all channnels simultaneously (when using the U8976) External sampling: 10 MS/s | |
Recording methods | Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period | |
Storage memory capacity | 1 G-words | |
Removable storage | SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI. | |
Display | 12.1 inch XGA-TFT color LCD (1024 × 768 dots) | |
External interfaces | LAN, USB, SD, SATA, Monitor output | |
Power supply | 100 to 240 V AC (50/60 Hz) (300 VA max.) | |
Dimensions and mass | 353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only) | |
Accessories | Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only) |
Documents
Hioki MR6000 Memory HiCorder
Hioki MR6000 DatasheetOptions
Hioki MR6000 Memory HiCorder
Input Modules
Input cords not included. Please purchase separately. When using 9709 with CURRENT UNIT 8971, a total of 7 current probes can be used.
FREQ UNIT 8970
|
|
ANALOG UNIT 8966
|
|
HIGH RESOLUTION UNIT 8968
|
|
DIGITAL VOLTMETER UNIT MR8990
|
|
STRAIN UNIT U8969
|
|
4CH ANALOG UNIT U8975
|
|
CHARGE UNIT U8979
|
|
3CH CURRENT UNIT U8977
|
|
TEMP UNIT 8967
|
|
DC/RMS UNIT 8972
|
|
LOGIC UNIT 8973
|
|
HIGH VOLTAGE UNIT U8974
|
|
HIGH SPEED ANALOG UNIT U8976
|
|
4CH ANALOG UNIT U8978
|
|
CURRENT UNIT 8971
|
Output Modules
Output cords not included. Please purchase separately.
PULSE GENERATOR UNIT MR8791
|
|
WAVEFORM GENERATOR UNIT MR8790
|
|
ARBITRARY WAVEFORM GENERATOR UNIT U8793
|
Video
Hioki MR6000 Memory HiCorder
Hioki MR6000 Memory HiCorder - Change the Way You Measure, Record and Analyze
The MR6000’s 12.1-inch capacitive touch panel facilitates smooth, intuitive operation by allowing you to select settings simply by tapping them and to zoom in on waveforms with standard finger gestures. Moreover, the Waveform Search function makes it easy to search large volumes of measurement data for the waveforms you wish to view. The instrument can also automatically search all measured data for anomalous waveforms.
Frequency band and isolated performance that let you accurately capture high switching frequencies
The MR6000 provides isolated channels that can accept 400 V DC direct input while maintaining high-speed sampling at 200 MS/s, allowing it to accurately capture switching waveforms in evaluation testing of inverter and power supply designs that are required to deliver high levels of efficiency. Smooth operation lets you read trace values simply by flicking the flicking the cursor to the side.
Save Time Reduced to 1/30th
Transferring very large amounts of data measured over a long period of time used to be very time-consuming. The MR6000 features a brand new interface and faster internal processing, reducing the time required to save measurement data to media. For example, a save operation that took 1 minute on the previous model now completes in 2 seconds. This saves you the trouble of waiting for data to be saved and improves work efficiency.
