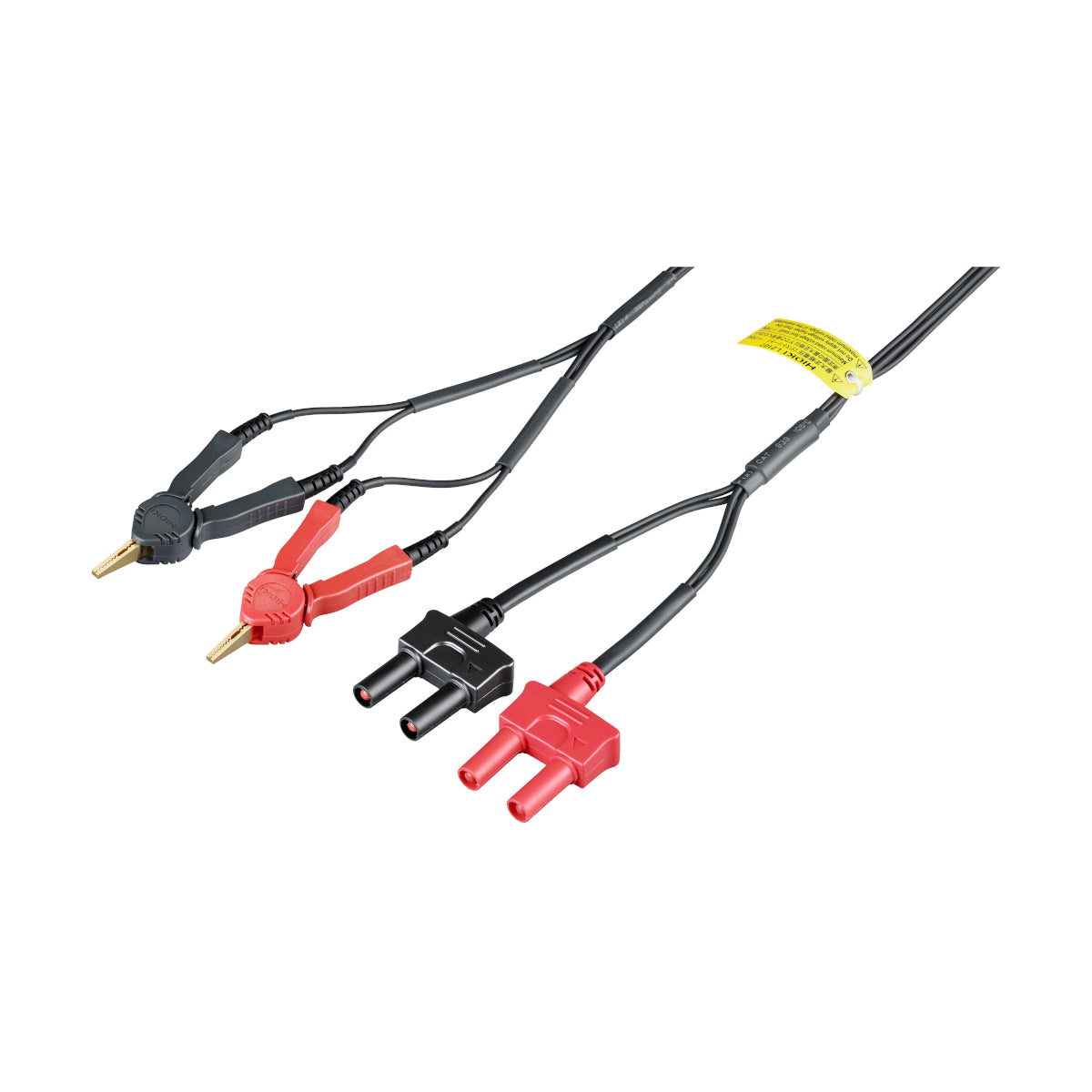

Hioki L2107 Clip Type Leads

The L2107 clip type lead with Kelvin clamps is an accessory for 3226, 3227, 3239, 3541, 3540, 3561, BT3562, BT3563, RM3548.

Technical Details:

• Operating environment: Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.)
• Operating temperature and humidity: 0°C to 40°C (32°F to 104°F), 80% RH or less (no condensation)
• Storage temperature and humidity: -10°C to 50°C (14°F to 122°F), 80% RH or less (no condensation)
• Dimensions: Overall length approx. 1100 mm (43.31"")
• Mass: Approx. 125 g (4.4 oz.)
• Rated current: 3 AAC/DC continuous
• Maximum rated voltage to earth: 30 V rms, 42.4 V peak, 60 V DC
• Cable flex service life: 15,000 times until a break develops (under conditions specified by Hioki) • Spring service life: 15,000 open/close cycles (under conditions specified by Hioki)
