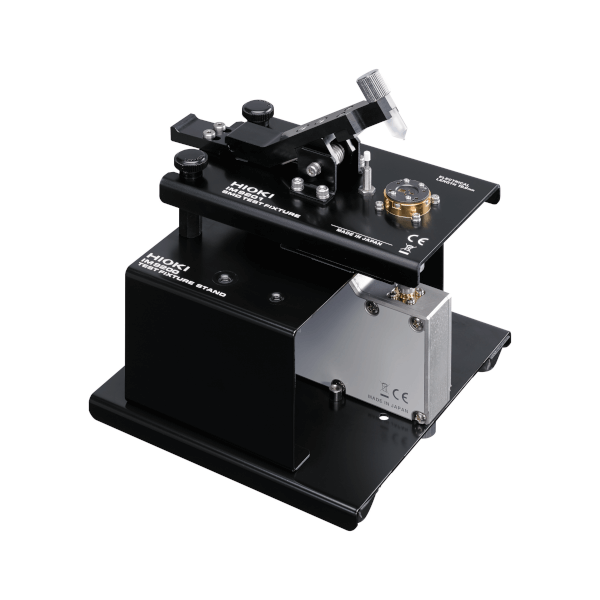

Hioki IM9201 SMD Test Fixture
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
3GHz High Frequency Test Fixture for 6 Different SMD Sizes
Discover the possibilities
More information
Description
Hioki IM9201 SMD Test Fixture
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.
Key Features
• SMD TEST FIXTURE exclusively for the IM7580 series
• 2 device guides let you measure 6 different SMD sizes
• Definitive 3GHz high frequency analysis made easy
• Supports SMD sizes (EIA) 0201, 0402, 0603, 0805, 1206, and 1210
| Frequency range | DC to 3 GHz |
|---|---|
| Dimensions of measurable DUT | 0201, 0402, 0603, 0805, 1206, 1210 (EIA) |
| Electrode structure | 2-terminal connection to bottom electrodes |
| Maximum voltage | ±42 Vpeak (AC+DC) |
| Additional error | Impedance: ±Ze [%]Phase: θe = ±0.58 × Ze [° ]Ze = Ae + (Zse / Zx + Yoe × Zx) × 100Zx: Impedance measurement value [Ω]Ae: 4 × f² [%]Zse: (100 + 500 × f) / 1000 [Ω]Yoe: (10 + 100 × f) / 1000000 [S]f [GHz] |
| Supported units | IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587 |
| Accessories | Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1 |
Documents
Hioki IM9201 SMD Test Fixture
Hioki IM9201 SMD Test Fixture datasheetOptions
Video
Hioki IM9201 SMD Test Fixture
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.
Key Features
• SMD TEST FIXTURE exclusively for the IM7580 series
• 2 device guides let you measure 6 different SMD sizes
• Definitive 3GHz high frequency analysis made easy
• Supports SMD sizes (EIA) 0201, 0402, 0603, 0805, 1206, and 1210
| Frequency range | DC to 3 GHz |
|---|---|
| Dimensions of measurable DUT | 0201, 0402, 0603, 0805, 1206, 1210 (EIA) |
| Electrode structure | 2-terminal connection to bottom electrodes |
| Maximum voltage | ±42 Vpeak (AC+DC) |
| Additional error | Impedance: ±Ze [%]Phase: θe = ±0.58 × Ze [° ]Ze = Ae + (Zse / Zx + Yoe × Zx) × 100Zx: Impedance measurement value [Ω]Ae: 4 × f² [%]Zse: (100 + 500 × f) / 1000 [Ω]Yoe: (10 + 100 × f) / 1000000 [S]f [GHz] |
| Supported units | IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587 |
| Accessories | Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1 |
