Hioki IM9110 SMD Test Fixture
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
High-Precision Two-terminal Fixture for Measuring Ultra Small “008004” (EIA) Components
%20Components
){kind=link}
Discover the possibilities
More information
Description

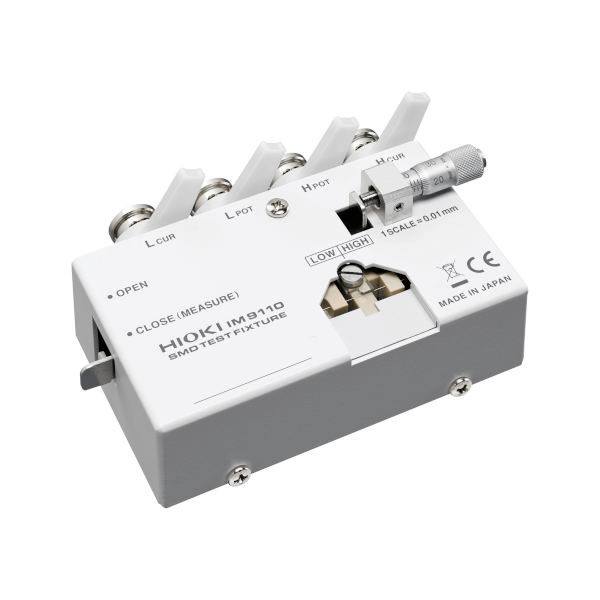

Hioki IM9110 SMD Test Fixture
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9110 is a general-purpose SMD test fixture for the IM7580 series impedance analyzers that accommodates ultra-small components and delivers repeatable results.
Key Features
• Easily place samples via built-in cover that keeps the sample from popping out
• Advanced contact technology delivers highly reproducible measurement results.
| Connection with sample | 2-terminal connection from opposite sides |
|---|---|
| Measurable sample sizes | 0.25 ±20% × 0.125 ±10% × 0.125 ±10% mm (EIA size category: 008004)Please contact Hioki for information about other sizes. |
| Allowable input voltage / current | Voltage: ±42 V peak (AC + DC)Current: 0.15 A rms (±0.15 A DC) |
| Measurement frequency range | DC to 1 MHz |
| Supported units | IM3590, IM3570, IM3536, IM3533, IM3533-01, IM3523, 3511-50, 3506-10, 3532-50 (legacy product), 3522-50 (legacy product) |
| Accessories | Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1 |
Documents
Hioki IM9110 SMD Test Fixture
Hioki IM9110 SMD Test Fixture datasheetOptions
