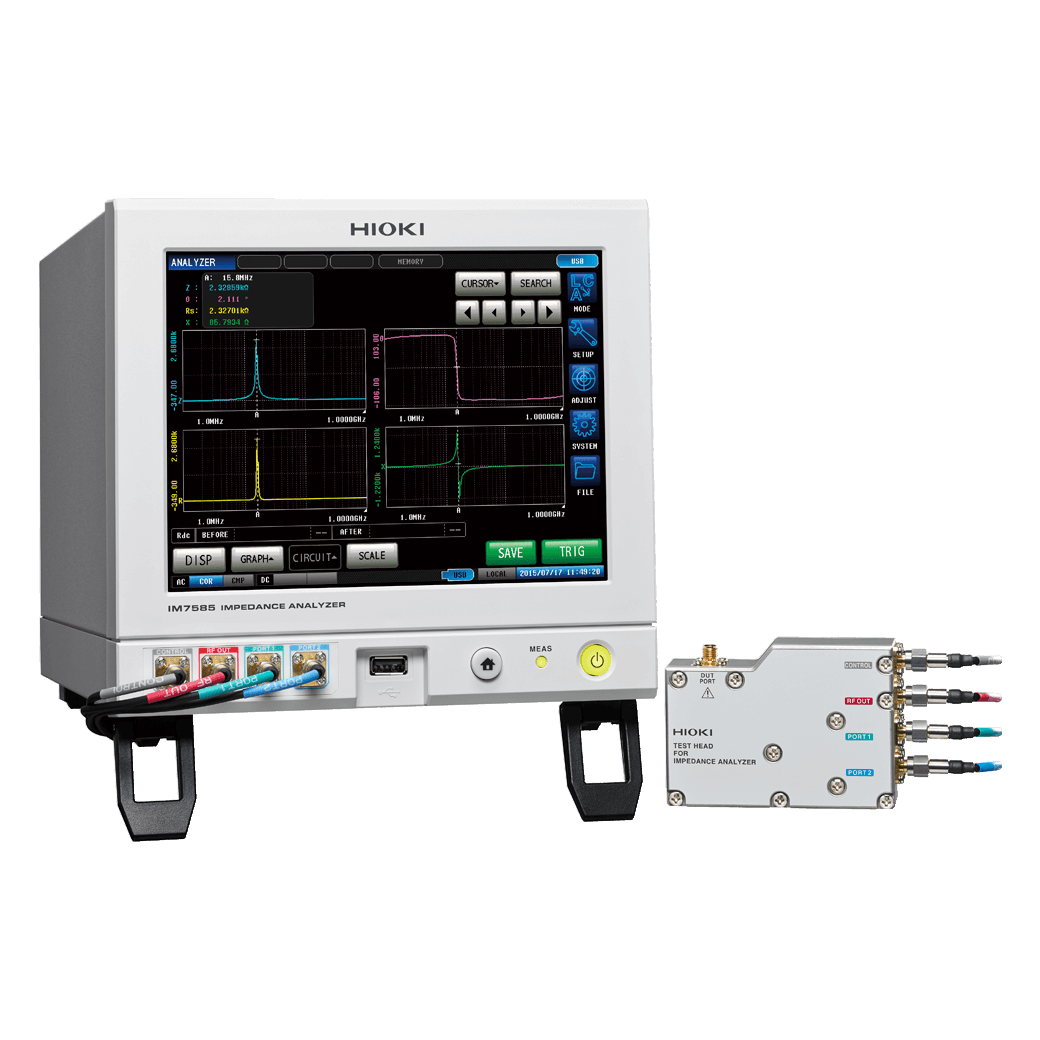

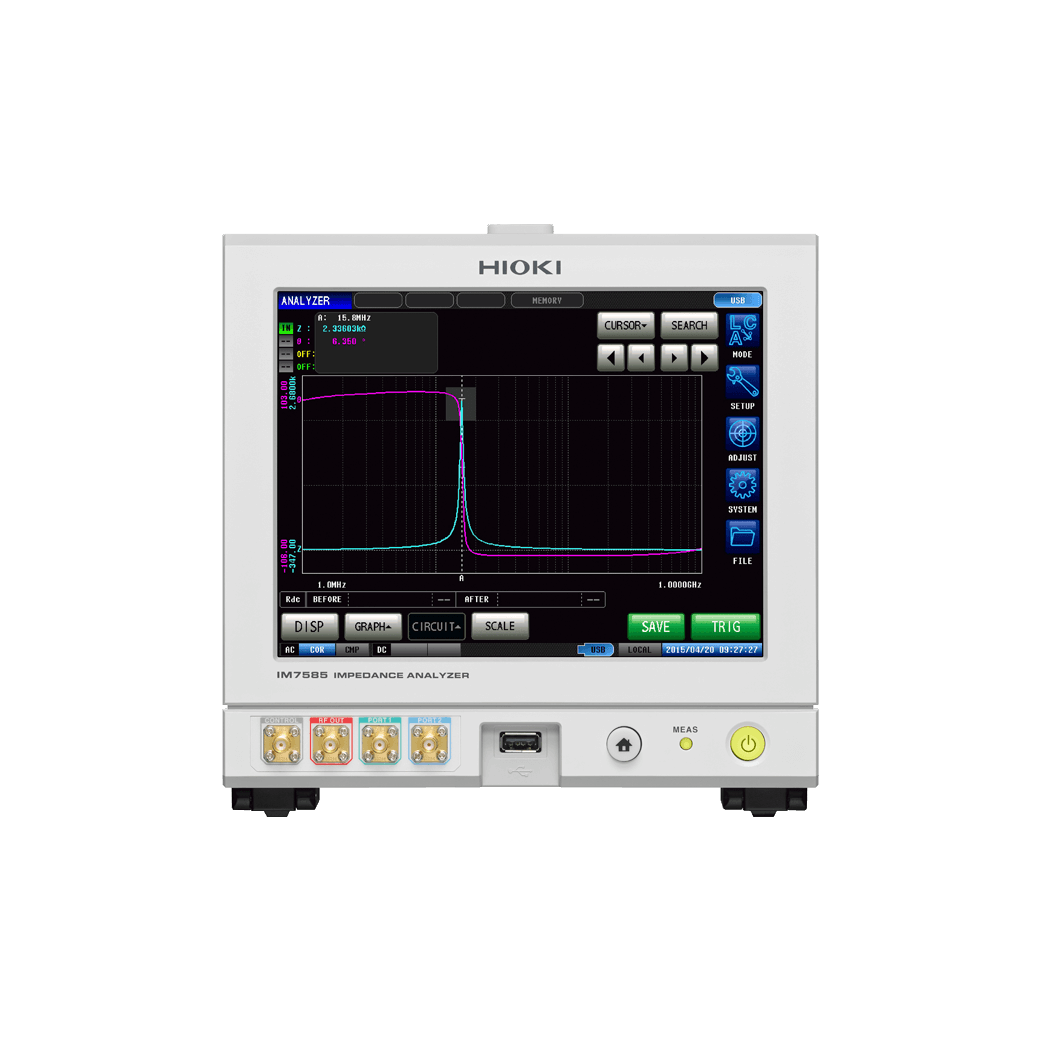

Hioki IM7585 Impedance Analyzer
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM7585 Impedance Analyzer offers a top measurement time of 0.5ms over a 1MHz to 1.3GHz frequency range and superior stability, making it ideal for R&D as well as high volume production of ferrite chip beads and chip inductors.
Key Features
• 1 MHz to 1.3 GHz testing source frequency
• Fastest test speed of 0.5 msec (Analog measurement time)
• 0.07% measured value variability (when measuring at 1GHz)

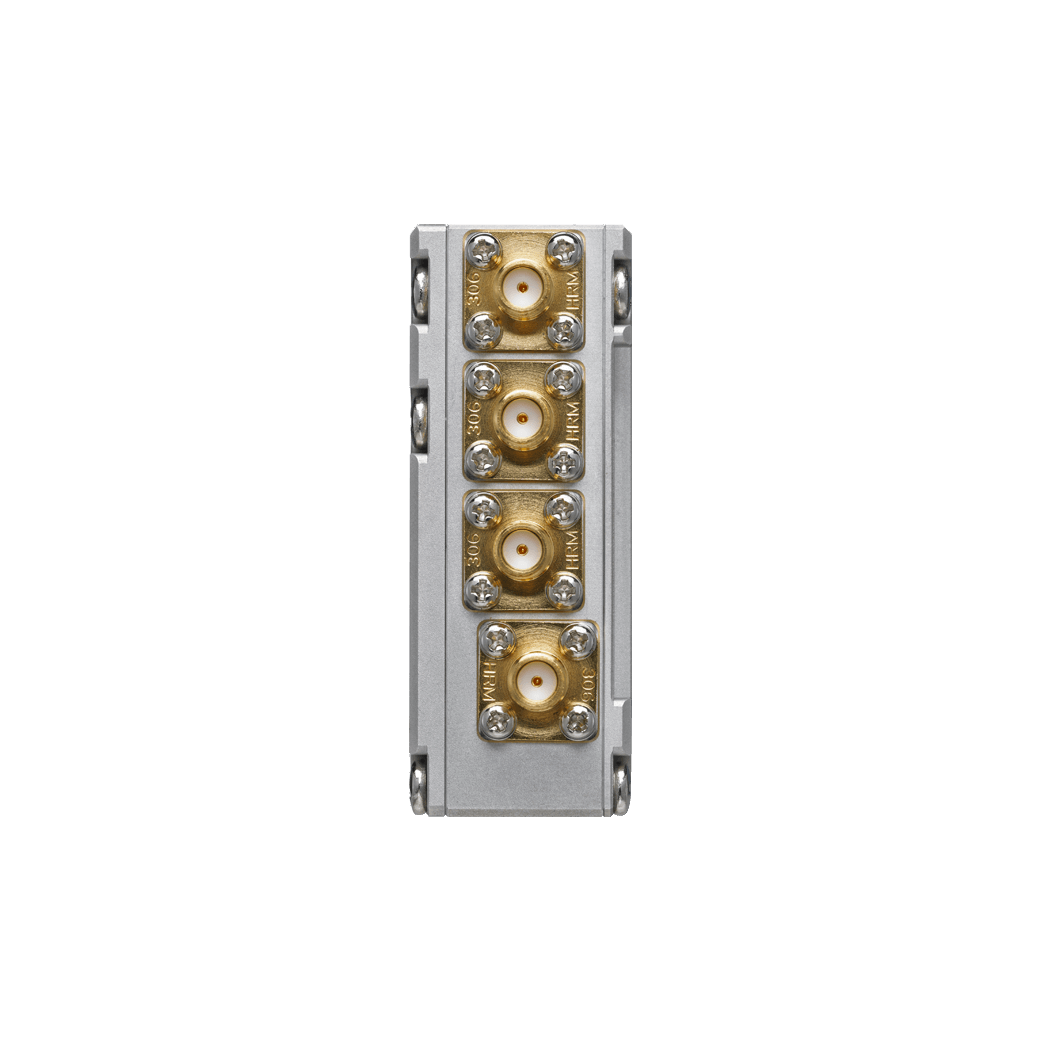

• ±0.65% rdg. basic accuracy\n\n• Half-rack size body and palm-sized test head
• Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
• Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement modes | LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode |
|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurable range | 100 mΩ to 5 kΩ |
| Display range | Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)\nLs, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)\nθ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)\nD: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)\nG, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %) |
| Basic accuracy | Z: ±0.65 % rdg. θ: ±0.38° |
| Measurement frequency | 1 MHz to 1.3 GHz (100 kHz setting resolution) |
| Measurement signal level | Power: -40.0 dBm to +1.0 dBm\nVoltage: 4 mV to 502 mVrms\nCurrent: 0.09 mA to 10.04 mArms |
| Output impedance | 50 Ω (at 10 MHz) |
| Display | 8.4-inch color TFT with touch screen |
| Measurement speeds | FAST: 0.5 ms (Analog measurement time, typical value) |
| Functions | Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation |
| Interfaces | EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional) |
| Power supply | 100 to 240 V AC, 50/60 Hz, 70 VA max. |
| Dimensions and mass | Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz)\nTest head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz) |
| Accessories | Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1 |
Documents
Hioki IM7585 Impedance Analyzer
Options
Hioki IM7585 Impedance Analyzer
| IM7585-01 | Connection cable 1 m is bundled |
|---|---|
| IM7585-02 | Connection cable 2 m is bundled |
