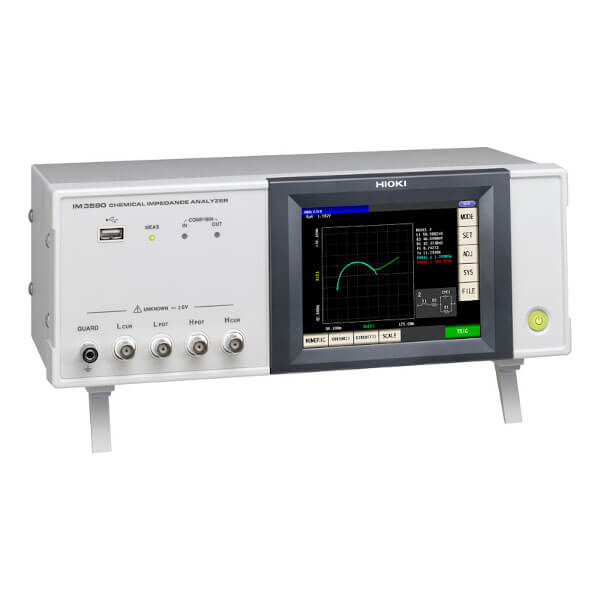

Hioki IM3590 Impedance Analyzer
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components.. The IM3590 impedance analyzer is an advanced component tester especially suited to electrochemical impedance measurements and includes a variety of graphing functions that are needed for battery and chemical material testing.
Key Features
• Broad 1 mHz to 200 kHz signal source range supports measurements of ion behavior and solution resistance
• Continuous measuring and high-speed testing of LCR and sweep measurements with a single instrument
• Measure internal impedance of batteries with no load
• Perform high-speed sweep measurements in as little as 2 ms
• Basic accuracy of ±0.05% is ideal for applications from component testing to R&D
• Measure LCR impedance for Cole-Cole plots and equivalent-circuit analyses of electro-chemical components and materials
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement modes | LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis) |
|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp,D (tanδ), Q, T, σ (conductivity), ε (dielectric constant) |
| Measurement range | 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z) |
| Display range | Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε :±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y onlyθ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999)Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%)T : -10.0°C to 99.9°Cσ, ε :±(0.00000f [unit] to 999.999G [unit] |
| Basic accuracy | Z: ±0.05% rdg. θ: ±0.03° |
| Measurement frequency | 1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz) |
| Measurement signal level | Normal mode:V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms stepsCC mode: 10 μA to 50 mArms, 10 μArms stepsLow impedance high accuracy mode:V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms stepsCC mode:10 μA to 100 mArms, 10 μArms steps |
| Output impedance | Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω |
| Display | 5.7-inch color TFT, display can be set to ON/OFF |
| Measurement time | 2 ms (1 kHz, FAST, display OFF, representative value) |
| Functions | DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function |
| Interfaces | EXT I/O (Handler), USB communication (high-speed), USB memoryOptional: Choose 1 from RS-232C, GP-IB, or LAN |
| Power supply | 100 to 240 V AC, 50/60 Hz, 50 VA max. |
| Dimensions and mass | 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz) |
| Accessories | Power cord ×1, Instruction manual ×1, CD-R (Communication instruction manual and sample software [Communications control, accuracy calculation, and screen capture functionality] ) ×1 |
