Hioki CT9556 Sensor Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Sensor Unit
- Power Supply for Current sensors: 1ch
- With waveform / RMS output
- For the CT6841-05, etc.
- ME15W connector
Discover the possibilities
More information
Description

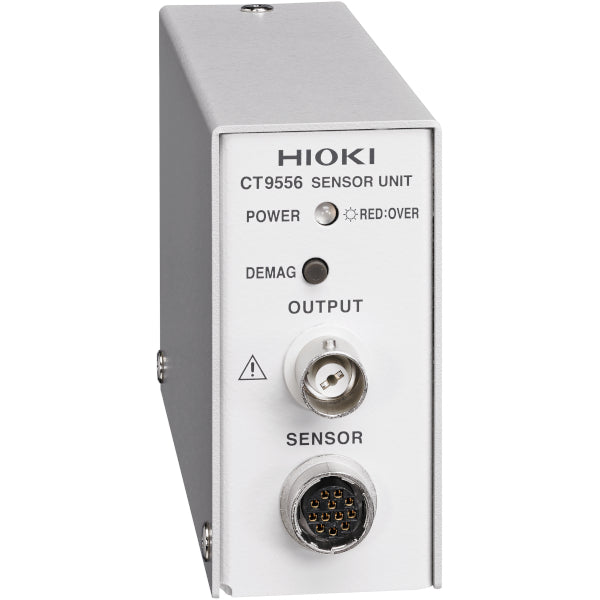

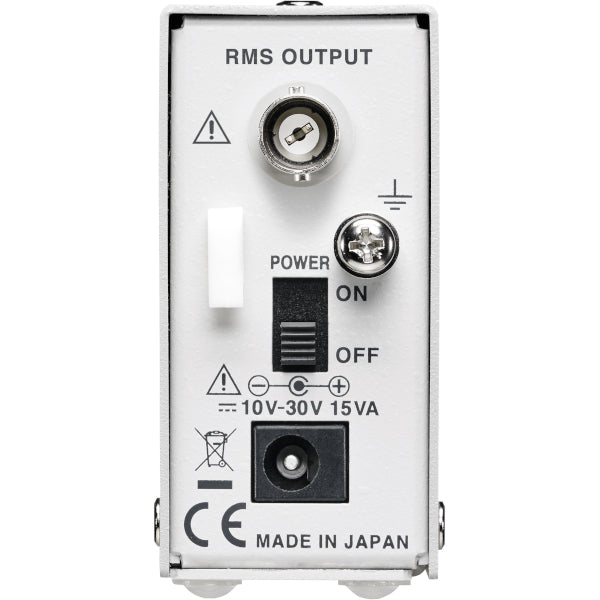

Hioki CT9556 Sensor Unit
Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The Hioki CT9556 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output.
Key Features
- Power supply for high-precision current sensors with waveform output / RMS output functionality
Basic specifications
Accuracy guaranteed: 1 year
| Connectable current sensors | Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal |
|---|---|
| Output Terminal | BNC Terminal |
| Output voltage | Waveform output: 2 V f.s. RMS output: 2 V DC f.s. |
| Output resistance | 50 Ω |
| Operating temperature range | -10°C to 50°C (14°F to 122°F) |
| Power supply | AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA) External power supply (10 to 30 V DC; maximum rated power: 15 VA) |
| Dimensions and mass | 33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz) |
| Included accessories | AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1 |
Using with a data logger to perform high-precision current measurement
In this setup, waveform output is monitored on the DC current side, and RMS output is monitored on the AC current side of the circuit. Even a logger that lacks RMS conversion functionality can be used to measure AC current. A wireless logger can also be used. If a high-precision voltmeter is used, both the AC and DC currents can be measured with a high degree of precision.
For more information: Hioki
