Hioki CT9555 Sensor Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Sensor Unit
- Power Supply for Current sensors: 1ch
- With waveform output for the CT6841-05, etc.
- ME15W connector
Discover the possibilities
More information
Description

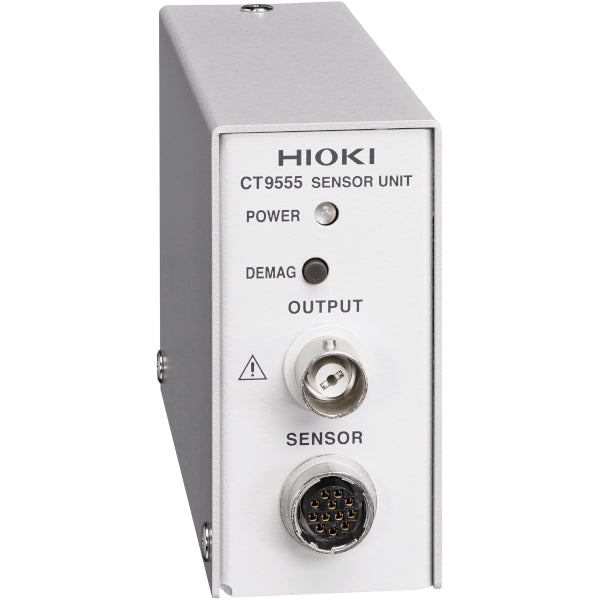

Hioki CT9555 Sensor Unit
Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The Hioki CT9555 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform output.
Key Features
- Power supply for high-precision current sensors with waveform output functionality
Basic specifications
Accuracy guaranteed: 1 year
Connectable current sensors | Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal |
---|---|
Output Terminal | BNC Terminal |
Output voltage | Waveform output: 2 V f.s. |
Output resistance | 50 Ω |
Operating temperature range | -10°C to 50°C (14°F to 122°F) |
Power supply | AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA) External power supply (10 to 30 V DC; maximum rated power: 15 VA) |
Dimensions and mass | 33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz) |
Included accessories | AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1 |
For more information: Hioki
