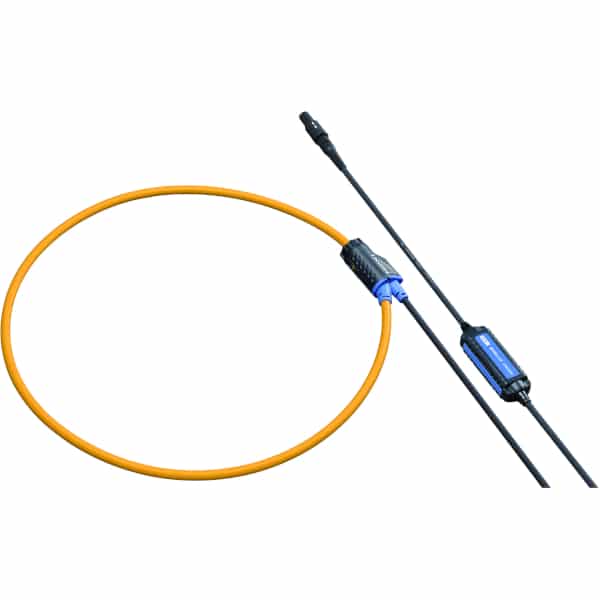

Hioki CT7046 AC Flexible Current Sensor
3.737,50 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- AC flexible Current Sensor
- 10 Hz to 50 kHz (+/-3dB)
- 6000A AC
- 254 mm diameter
- PL14 terminal
Discover the possibilities
More information
Description
Hioki CT7046 AC Flexible Current Sensor
Hioki clamp sensors are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki CT7040 Series compromise of 600A/6000A AC flexible current sensors in three different loop sizes that pair with the detachable Display Unit to measure large currents in crowded wiring and confined spaces.CAT IV 600 V, CAT III 1000 V
Key Features
- Thinner cables are easier to use in confined spaces and with complicated wiring
- Supports large current measurements up to 6000 A
- Wide 10 Hz to 50 kHz band with excellent frequency characteristics
- Choose from three conductor diameter sizes
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
A comment of Good Design Award 2016
“I was impressed with the high level of functionality combined with a compact design and a dustproof and waterproof enclosure as well as the high level of technical skill evident in the integration of multiple types of plastic and two cables. These appealing products also exhibit beautiful finish quality.”Connect to Recorders, Data loggers, and Oscilloscopes
Must be paired with the Display Unit CM7290 or CM7291 to operate as a standalone unit. Add an output cord to deliver signals to a data logger or Memory HiCorder for the following types of output:• A DC or AC (up to 5 kHz/10 kHz) current waveform as-is (using WAVE mode for waveform output)
• An analog signal generated by converting the input waveform to a series of RMS values (using RMS mode for RMS output)
• An analog signal generated by detecting the current waveform’s peak value (using PEAK mode for peak output
• An analog waveform generated by detecting the frequency of the current waveform (using FREQ mode for frequency output)
Broad temperature range
A wide operating temperature range of -25°C to 65°C (-13°F to 149°F) lets you use the sensor even in sub-freezing temperatures and on hot summer days.Transfer data wirelessly using Bluetooth(R) to GENNECT Cross mobile app
Pair with the CM7291 Display Unit to send measurement data to a smartphone or tablet using Bluetooth® wireless technology. Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real time.For more information: Hioki
Documents
Hioki CT7046 AC/DC Current Sensor
Hioki CT7046 DatasheetOptions
Hioki CT7046 AC/DC Current Sensor
CT7046 | 6000 A, φ254 mm (10.00 in) |
---|---|
CT7045 | 6000 A, φ180 mm (7.09 in) |
CT7044 | 6000 A, φ100 mm (3.94 in) |
