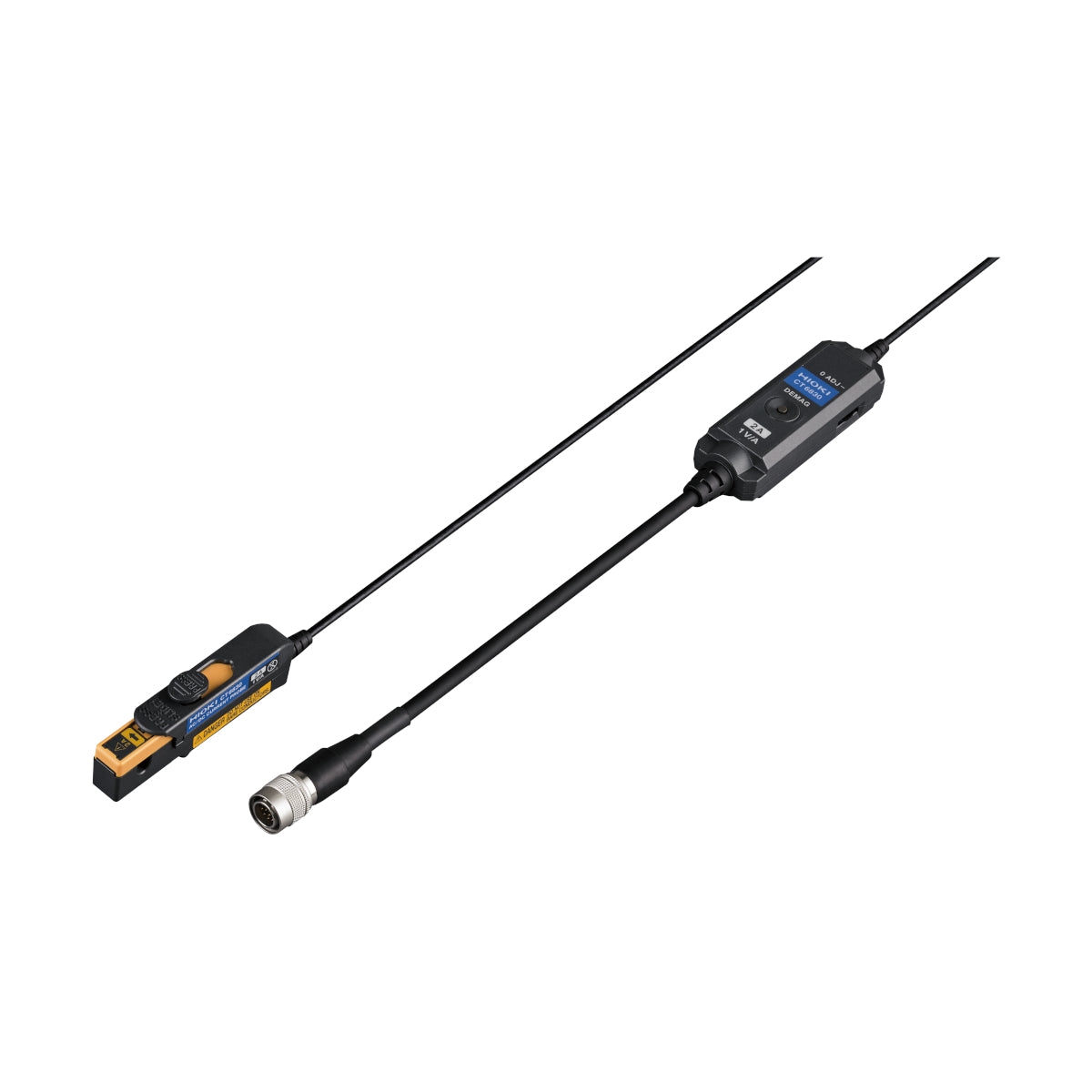

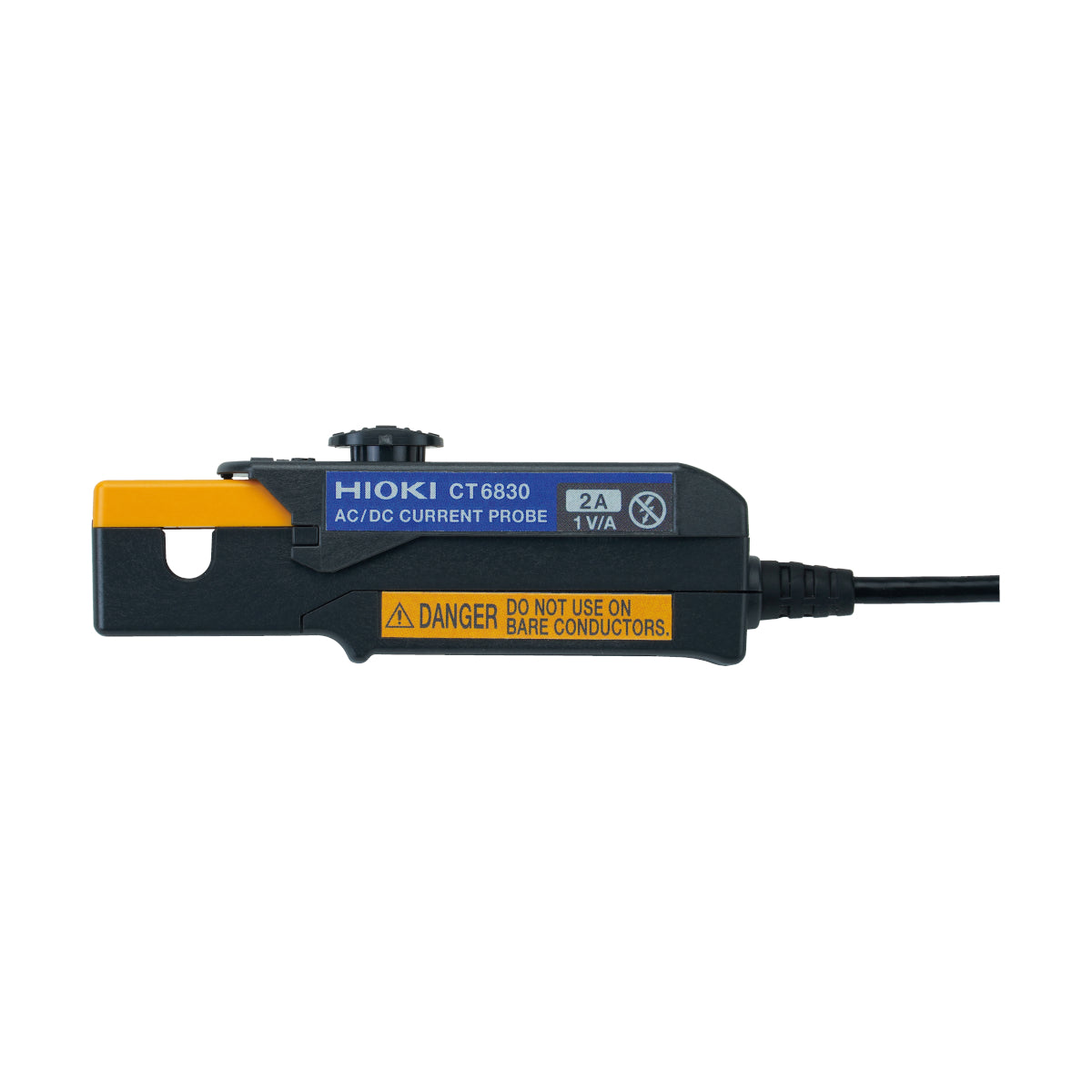

Hioki CT6830 AC/DC Current Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- One of the industry’s smallest current sensors
- 2 A AC/DC, φ 5 mm
Discover the possibilities
More information
Description
Key Feature
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 2 A AC/DC
Compact, non-contact, and high-accuracy
Multiple sensors can be easily installed, even in confined spaces and locations with complex wiring.
Compact sensor makes possible high-performance, high-accuracy measurement.
Broad operating temperature range
Operating temperature range: -40°C to 85°C
Low-level DC current can be measured with a high degree of accuracy, even in environments where the ambient temperature varies.
Specifications
Basic specifications
Accuracy guaranteed: 1 year
| Rated measurement current | 2 A AC/DC |
|---|---|
| Max. allowable input | 3 A rms continuous (±4.3 Ap) |
| Bandwidth | DC to 100 kHz |
| Basic accuracy | DC± 0.3％ rdg. ±0.1％ f.s. |
| Core diameter | φ 5 mm or less |
| Output connectors | HIOKI ME15W |
| Memory function | Instruments with a memory function can load the sensor information of the device Compatible model: PW8001 |
| Operating temperature range | Sensor: -40°C to 85°C, 80% RH or less (non-condensing) Relay box: -25°C to 50°C, 80% RH or less (non-condensing) |
| Dimensions | Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable) Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Weight | 160 g |
| Output cable length | 4 m (between sensor and relay box), 0.2 m (between relay box and output connector) |
| Included accessories | Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
