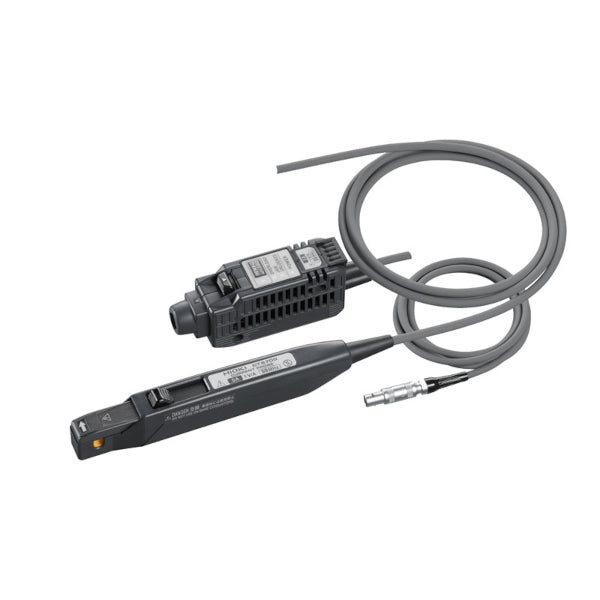

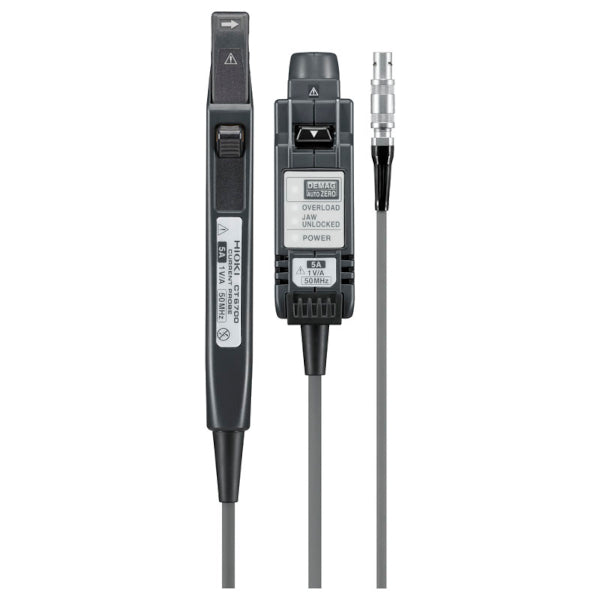

Hioki CT6700 Current Probe
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The Hioki CT6700 is a high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers. The probe is designed with a high permeability magnetic shield to reduce the effects of electric fields, making it ideal for measuring low currents or nearby high-current lines.
Use with an instrument with a high input impedance of 1 MΩ or higher.
Key Features
- Wide band: DC to 50 MHz (-3 dB)
- High S/N characteristic ideal for ultra low 1 mA order current waveforms
- Connect directly to an oscilloscope’s BNC input terminal (*1)
*1:Connecting the probe's metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may distort or damage the plastic terminal. To avoid damage, please connect and disconnect the probe cable straight to the BNC terminal of the waveform monitoring equipment.
High Signal-to-Noise Ratio
Hioki-manufacturered Hall elements deliver probes characterized by low noise across a wide bandwidth, letting you measure current at a high signal-to-noise ratio so that even minuscule currents don’t get lost in the noise.
One-touch Disconnection from the BNC Terminal
Easily connect the probe with your oscilloscope or recorder without twisting or turning the connector. Simply insert the connector until it automatically locks into place. Use the unlock lever and pull to detach.
%0A%20%095%20Arms%20maximum%0A%20%095%20mm%20core%20diameter%0A%20%09From%201mA%0A%20%0950MHz%20bandwidth%0A
){kind=link}
Automatic Zero-Adjustment and Demagnetization with a Single Button
Zero-adjustment and demagnetization must be conducted before each measurement to null out any residual signals and remove any magnetic fields from the previous test in order to provide an accurate and repeatable output. The CT6700 is designed with an automatic zero-adjustment and demagnetization feature that can be activated with a single button to cancel any offset margin of error after measuring a large current.
Basic specifications
Accuracy guaranteed: 1 year
| Frequency bandwidth | DC to 50 MHz (-3 dB) | |||||
|---|---|---|---|---|---|---|
| Rise time | 7.0 ns or shorter | |||||
| Noise level | 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument) | |||||
| Continuous allowable input | 5 A rms (DC, and sine wave, requires derating at frequency) | |||||
| Max. allowable peak input | ±7.5 A peak (non-continuous) | |||||
| Amplitude accuracy | Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms) Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms) | |||||
| Output rate | 1 V/A (The output of this probe is internally terminated) | |||||
| Measurable conductors | Insulated conductor | |||||
| Core diameter | φ 5 mm (0.20 in) | |||||
| Power supply | ±12 V ±0.5 V, 3.2 VA | |||||
| Dimensions and mass | Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Terminator: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, Mass: 250 g (8.8 oz), Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft), Power plug: FFA.0S.304.CLAC37Y / LEMO inc. | |||||
| Included accessories | Instruction manual ×1, Carrying case ×1 | |||||
