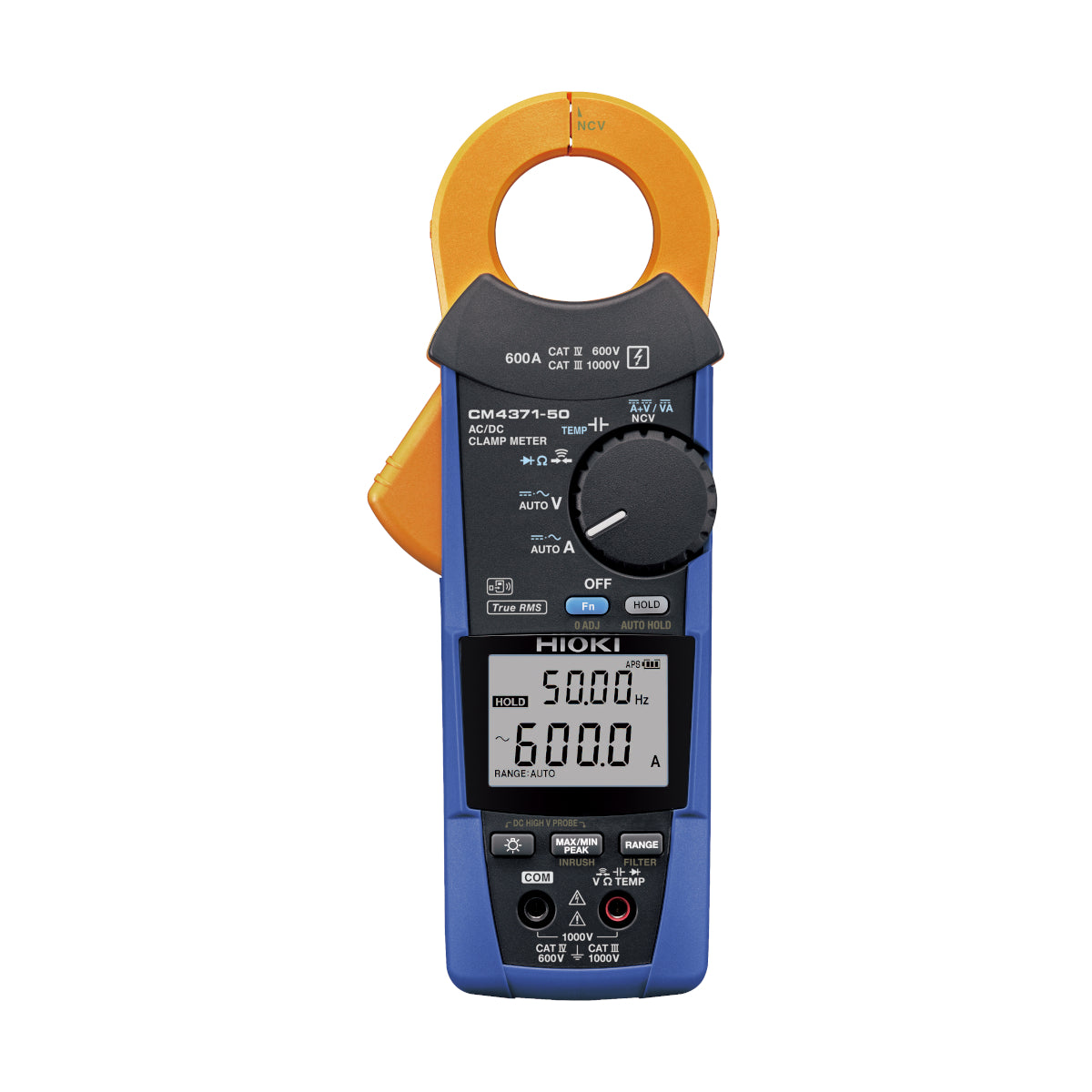

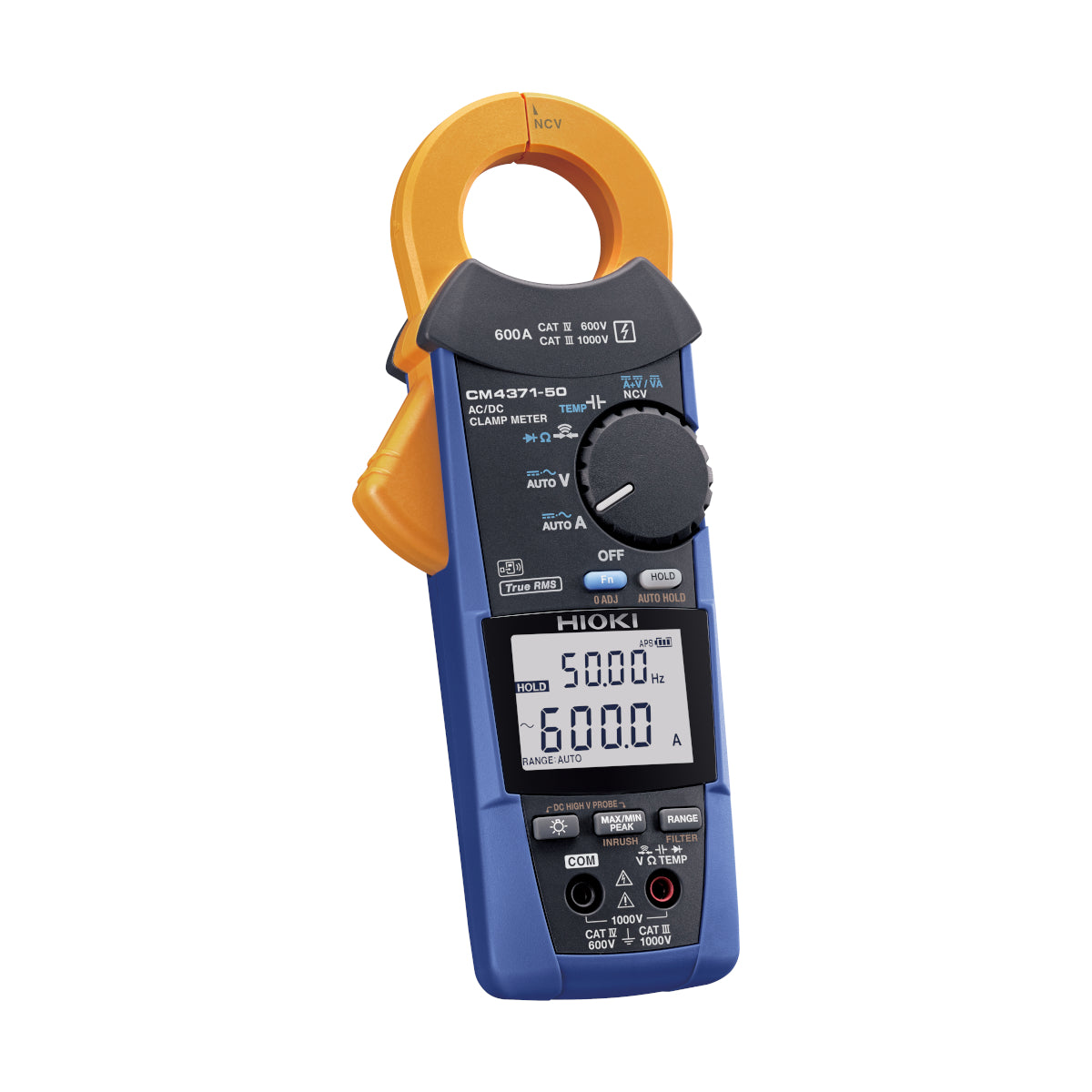

Hioki CM4371-50 AC/DC Clamp Meter
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- True RMS 600 A AC/DC Clamp Meter for the Toughest Situations
- With DMM Functions that Deliver Top Safety
Discover the possibilities
More information
Description
Safe inspection of solar installations with high voltage
DC High V Probe Mode
- Enables high voltage measurement up to CAT III 2000 V
- Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)
See details about DC High Voltage Probe P2000
Wireless communication capability for even greater convenience
Wireless support
When the Wireless Adapter Z3210 is installed, Bluetooth® wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.
See details about Wireless Adapter Z3210
Excel® Direct Input Function (*1)
Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel®.
*1:The optional Wireless Adapter Z3210 is required.
Helping personnel analyze issues in the field
Harmonic measurement
When combined with GENNECT Cross (*2), you can perform simple harmonic analysis. Applications include problem analysis of power supply systems.
See here for details about GENNECT Cross
Problems that can be caused by harmonics
- Equipment burn-out and destruction due to overheating
- Malfunctions of power control devices
- Increased loss along with reduced service life and efficiency for power devices
*2:GENNECT Cross is an free app that lets you connect field measuring instruments to smartphones and tablets using Bluetooth® communications. Wireless Adapter Z3210 (sold separately) is required in order to pair the instrument with GENNECT Cross.
Convenient for repeated measurement and recording tasks!
Automatic hold function
In addition to being convenient when the display cannot be seen during measurement, when the measurement value is stabilized, the display value is automatically held until the next measurement, which is very convenient for repeated measurement and recording tasks.
Assess transient currents at motor startup
The clamp meters can simultaneously measure inrush current in RMS as well as maximum crest values at motor startup and for welding currents.
The clamp meters automatically detect the duration of the inrush current (which can range from several dozen milliseconds to several hundred milliseconds) and measure the current during that interval, enabling them to yield more accurate
measurements than standard clamp-on meters whose measurement interval is fixed to 100 ms.
