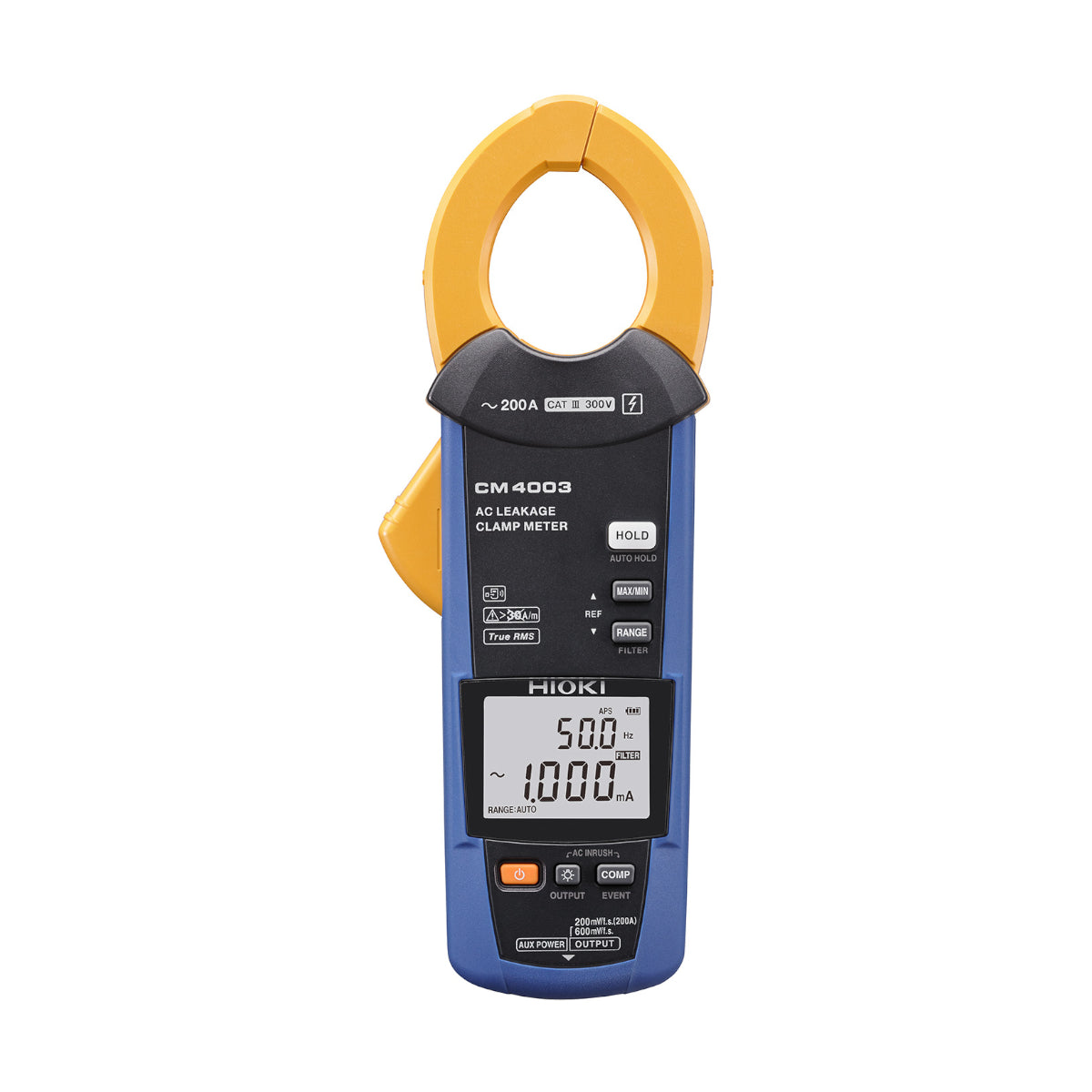

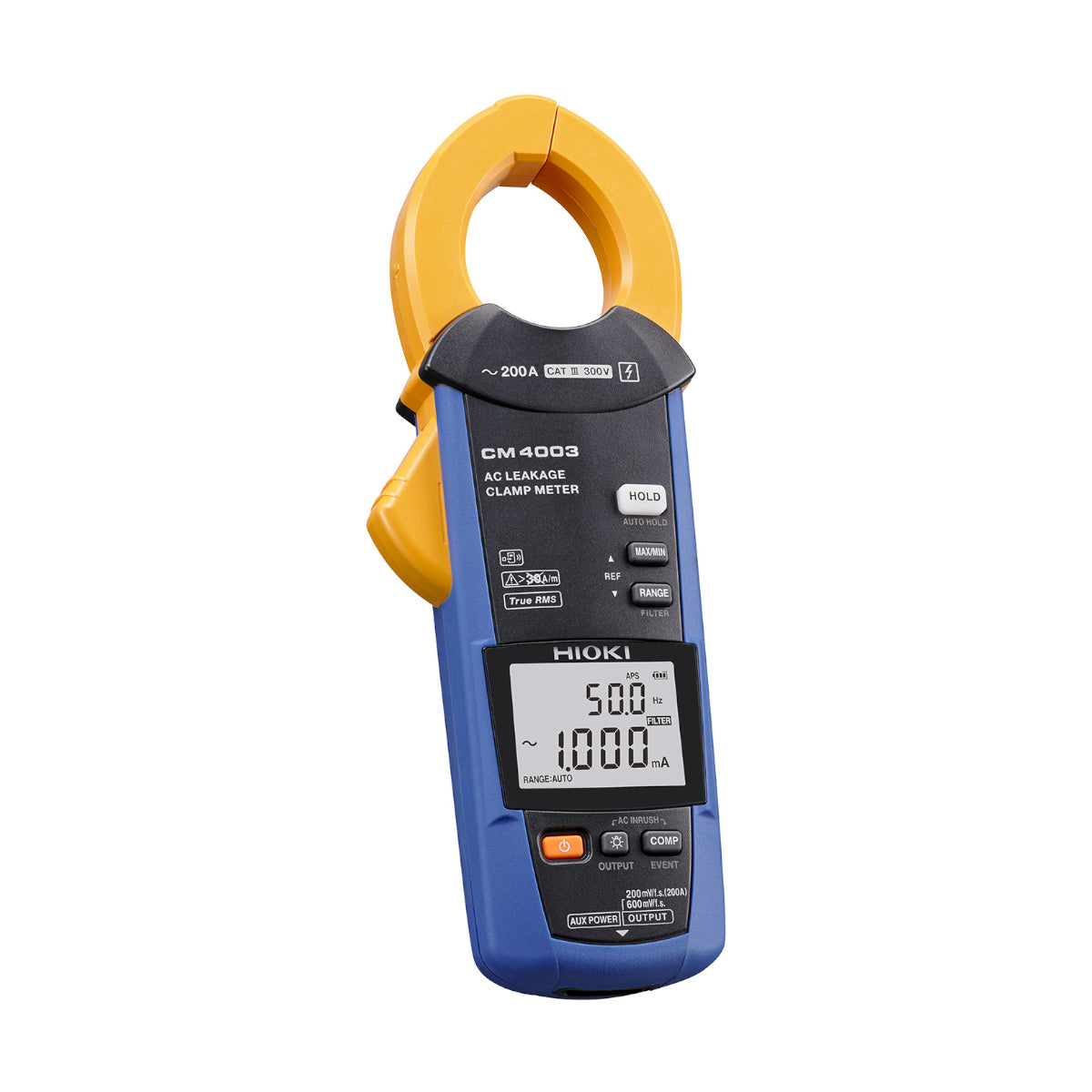

Hioki CM4003 AC Leakage Clamp Meter
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Measuring range: 6 mA to 200 A
- Frequency range: 15 to 2000 Hz
- Cable diameter: Up to 40 mm
- Main functions: Max/Min/AVG/PEAK MAX/PEAK MIN, display hold, auto hold, backlight, automatic energy saving mode, buzzer, event display, comparison function, simple event recording, inrush current measurement
- Additional function: Waveform/RMS output for signal recording with a memory recorder
- Wireless data transmission: Bluetooth ready (Z3210 module required)
Discover the possibilities
More information
Description
The CM4003 is a true RMS AC leakage current meter with a measuring range of 6 mA to 200 A and a frequency range of 15 to 2000 Hz. It is designed for conductors with a diameter of up to 40 mm. The CM4003 offers advanced functions such as Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto hold, backlight, automatic energy saving mode, acoustic signal (buzzer), event display, comparison function, simple event recording and inrush current measurement.
In addition, the CM4003 has a waveform/RMS output function that enables signals to be recorded with a memory recorder. The device is also prepared for wireless data transmission via Bluetooth, for which the Z3210 module is required.
Specifications
Documents
Datasheet:
Options
Video
The CM4003 is a true RMS AC leakage current meter with a measuring range of 6 mA to 200 A and a frequency range of 15 to 2000 Hz. It is designed for conductors with a diameter of up to 40 mm. The CM4003 offers advanced functions such as Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto hold, backlight, automatic energy saving mode, acoustic signal (buzzer), event display, comparison function, simple event recording and inrush current measurement.
In addition, the CM4003 has a waveform/RMS output function that enables signals to be recorded with a memory recorder. The device is also prepared for wireless data transmission via Bluetooth, for which the Z3210 module is required.
