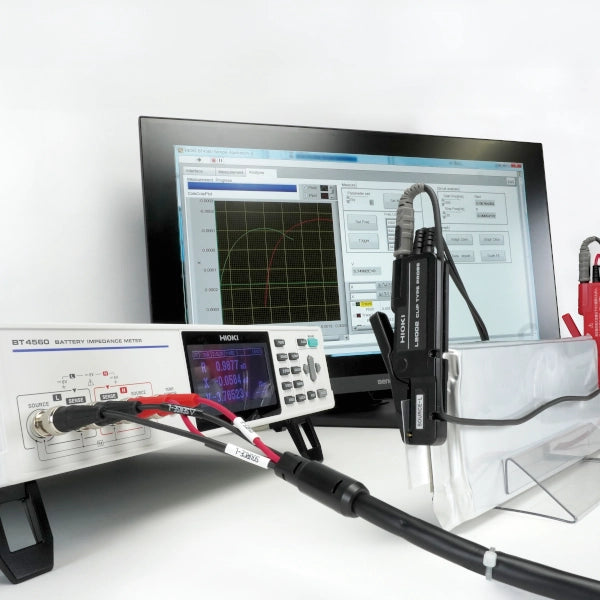

Hioki BT4560-50 Battery Impedance Meter
Expected delivery time is 5 weeks
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Battery impedance meter, for Li-Ion battery testing
- low-frequency AC-IR method without charge and discharge
- R, X, Z and Phase angle measurement
- Max. DCV measurement 5V
- Testing source frequencies from 0,01 Hz to 1050 Hz
- Max. testing source Current: 1.5 Arms
- Minimum measuring range 3 mOhm
- LAN/USB/RS-232C communication interface equipped
- Ext. I/O equipped
Discover the possibilities
More information
Description
Battery impedance meter, for Li-Ion battery testing, low-frequency AC-IR method without charge and discharge, R, X, Z and Phase angle measurement, Max. DCV measurement 5V, Testing source frequencies from 0,01 Hz to 1050 Hz, Max. testing source Current: 1.5 Arms, Minimum measuring range 3 mOhm, LAN/USB/RS-232C communication interface equipped, Ext. I/O equipped
Specifications
Documents
Options
Video
Hioki BT4560 Battery Impedance Meter
Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries
Understand the characteristics of Lithium Ion cells with EIS (Electrochemical Impedance Analysis)
Suppose you want understand the characteristics of your Li-ion cells in order to improve overall battery performance. In that case, Electrochemical Impedance Spectroscopy (EIS) is a valuable measurement method that can give you insights into where to improve to achieve a better overall performance of your batteries. In this video, we show the principle of EIS.
Battery impedance meter, for Li-Ion battery testing, low-frequency AC-IR method without charge and discharge, R, X, Z and Phase angle measurement, Max. DCV measurement 5V, Testing source frequencies from 0,01 Hz to 1050 Hz, Max. testing source Current: 1.5 Arms, Minimum measuring range 3 mOhm, LAN/USB/RS-232C communication interface equipped, Ext. I/O equipped
Hioki BT4560 Battery Impedance Meter
Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries
Understand the characteristics of Lithium Ion cells with EIS (Electrochemical Impedance Analysis)
Suppose you want understand the characteristics of your Li-ion cells in order to improve overall battery performance. In that case, Electrochemical Impedance Spectroscopy (EIS) is a valuable measurement method that can give you insights into where to improve to achieve a better overall performance of your batteries. In this video, we show the principle of EIS.
