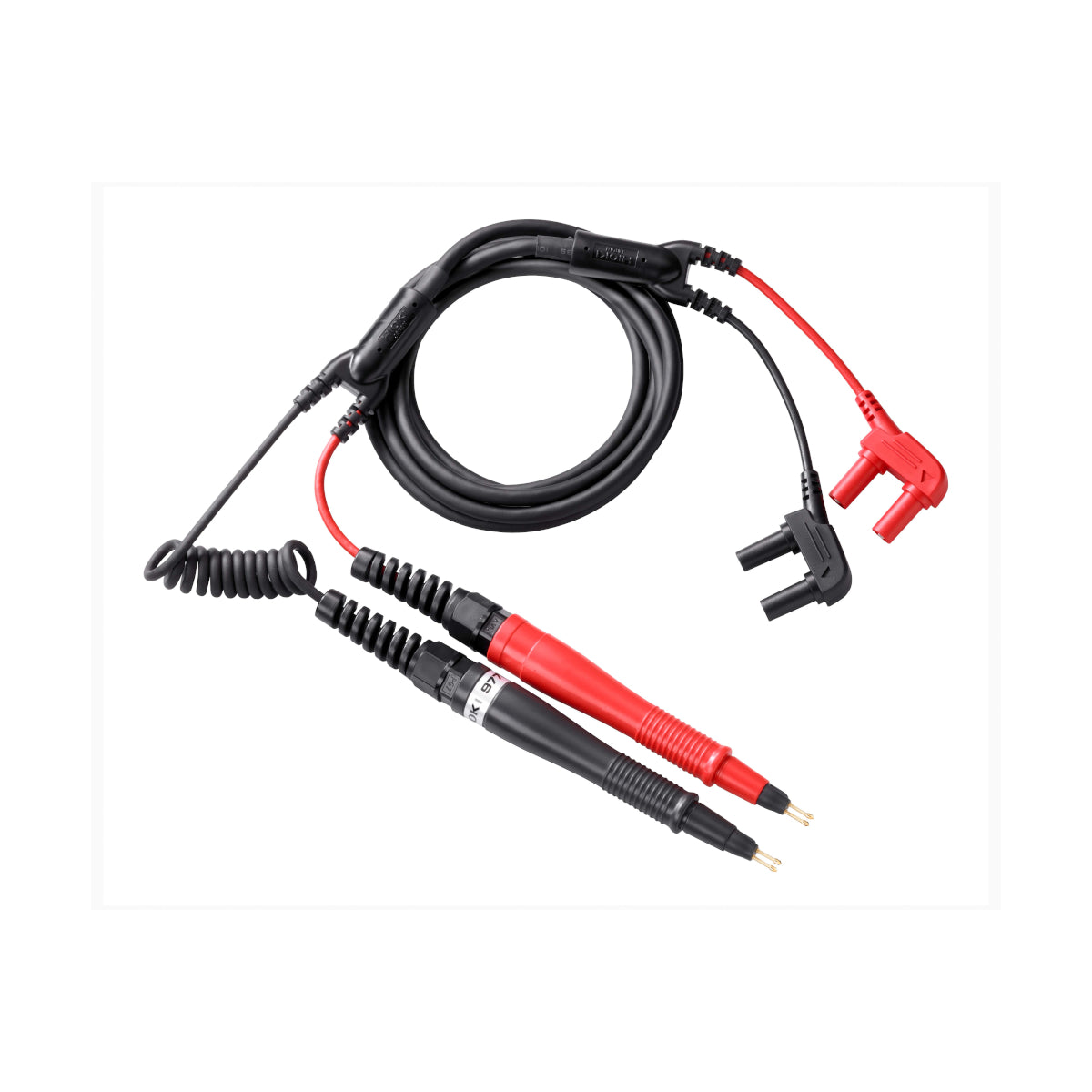

Hioki 9772 Pin Type Lead

Sale price2.080,00 DKK
2.600,00 incl. VAT
Order Item

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


The Hioki 9772 Pin-Type Lead is designed for use in narrow spaces where making contact with the subject of measurement is difficult, such as when maintaining emergency batteries. The lead features two parallel, spring contact tips with a diameter of 1.8 mm, allowing for stable connection with the measurement object. Its four-terminal structure ensures precise measurements in confined spaces.

Technical Details:

  • Parallel tips, spacing: 2.5 mm
  • Diameter singe tip: 1.8mm
  • Continuous current: AC/DC 2 A
  • Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak
  • Operating temperature range: 0°C to 40°C
  • Storage temperature range: -10°C to 50°C
  • Length: approx. 1900 mm
  • Weight: approx. 180 g
  • Accessories: Instruction manual
  • Spare parts: 9772-90 tip pin
