Hioki 9771 Pin Type Lead
4.275,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

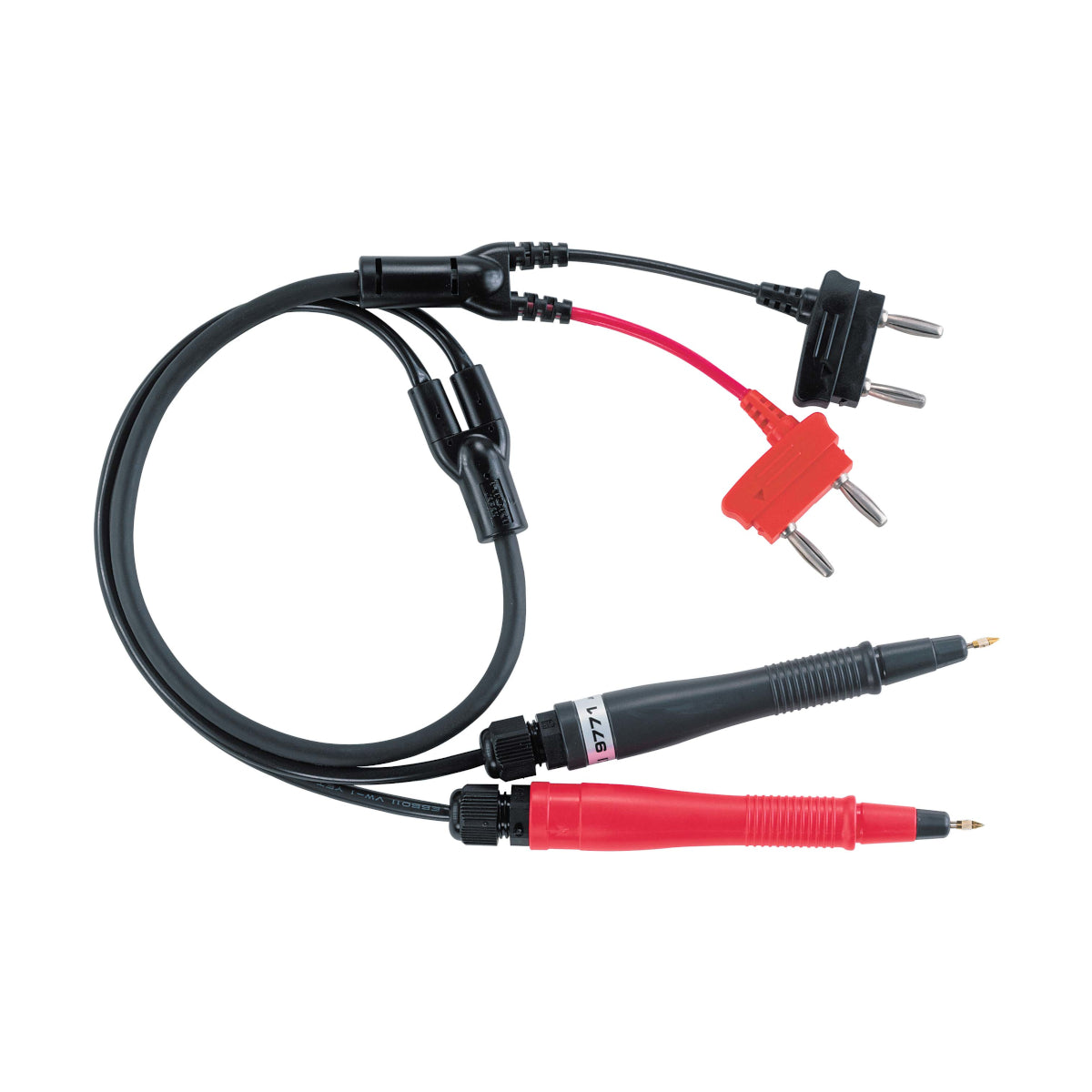

The Hioki 9771 Pin-Type Lead is developed for precise inspection of PCBs, through holes, and SMD components. It features parallel pins spaced 0.2 mm apart with a four-sided pyramid tip, making it ideal for measuring small objects on PCBs. This model also uses a 4-terminal structure to provide accurate and efficient measurements.
Technical Details:
- Parallel pin, spacing: 0.2 mm
- Continuous current: AC/DC 2 A
- Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak
- Operating temperature range: 0°C to 40°C
- Storage temperature range: -10°C to 50°C
- Length: approx. 860 mm
- Weight: approx. 110 g
- Spare parts: 9771-90 tip pin
- Surface of contacs: gilded
