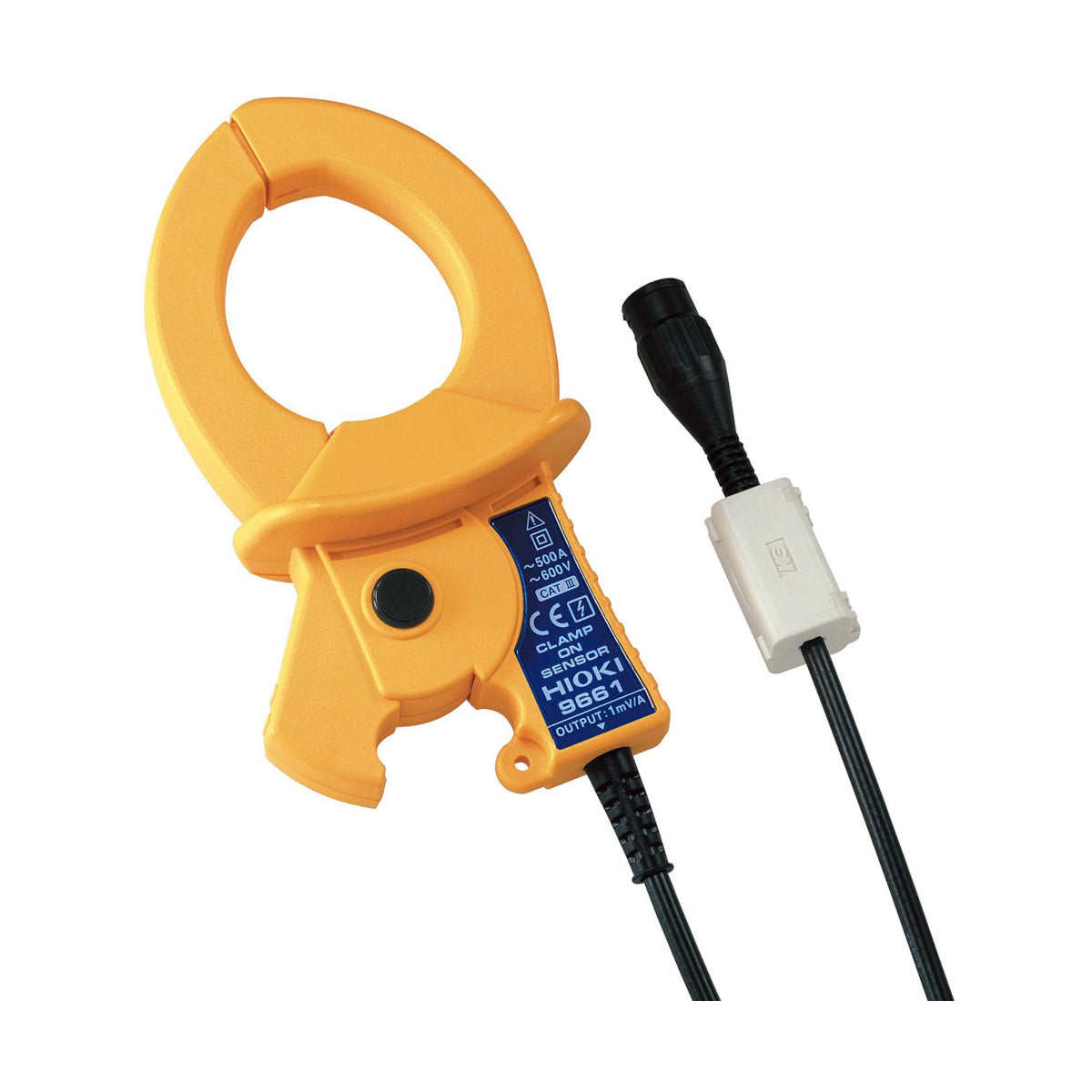

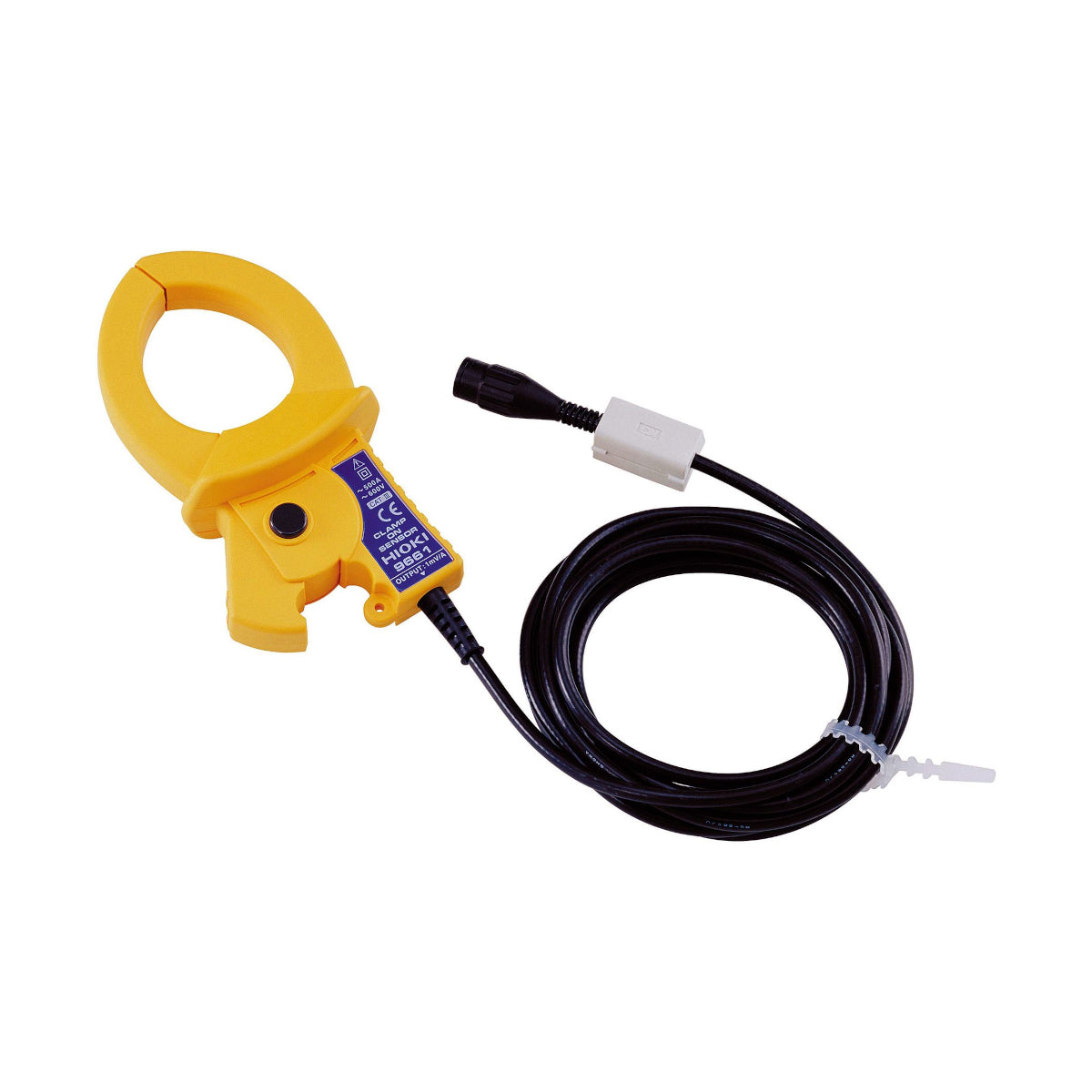

Hioki 9661 Clamp On Sensor
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Rated current: AC 500 A
- Output rate: AC 1 mV/A
- Amplitude accuracy: ±0.3% rdg. ±0.01% f.s. (500 A, 45 Hz - 66 Hz, at jaw center)
- Phase accuracy: ±0.5° (45 Hz - 5 kHz)
- Frequency range: 40 Hz - 5 kHz
- Maximum current: 550 A (continuous)
- Dielectric strength: AC 7060 V (for 1 minute)
- Conductor diameter: 46 mm or less
- Operating temperature: 0°C to 50°C (80% RH or lower, non-condensing)
- Storage temperature: -10°C to 60°C
- Safety standards: EN61010, CAT III 600V
- Dimensions: 78 W x 152 H x 42 D mm
- Weight: Approx. 380 g • Cable length: 3 m
%0APhase%20accuracy:%20%C2%B10.5%C2%B0%20(45%20Hz%20-%205%20kHz)%0AFrequency%20range:%2040%20Hz%20-%205%20kHz...
){kind=link}
Discover the possibilities
More information
Description
The Hioki 9661 Clamp-On Sensor is designed to measure AC current up to 500 A with high precision. It features a voltage output, making it ideal for use with recorders or other instruments. The compact design with a 46 mm conductor diameter capacity ensures flexibility in various electrical environments. The sensor is robust, complying with CAT III 600V safety standards, making it safe for use in industrial settings.
Specifications
Documents
Options
Video
The Hioki 9661 Clamp-On Sensor is designed to measure AC current up to 500 A with high precision. It features a voltage output, making it ideal for use with recorders or other instruments. The compact design with a 46 mm conductor diameter capacity ensures flexibility in various electrical environments. The sensor is robust, complying with CAT III 600V safety standards, making it safe for use in industrial settings.
