LOGIC UNIT8973
Measure logic signal, such as the ON/OFF of relays
Discover the possibilities
More information
Description

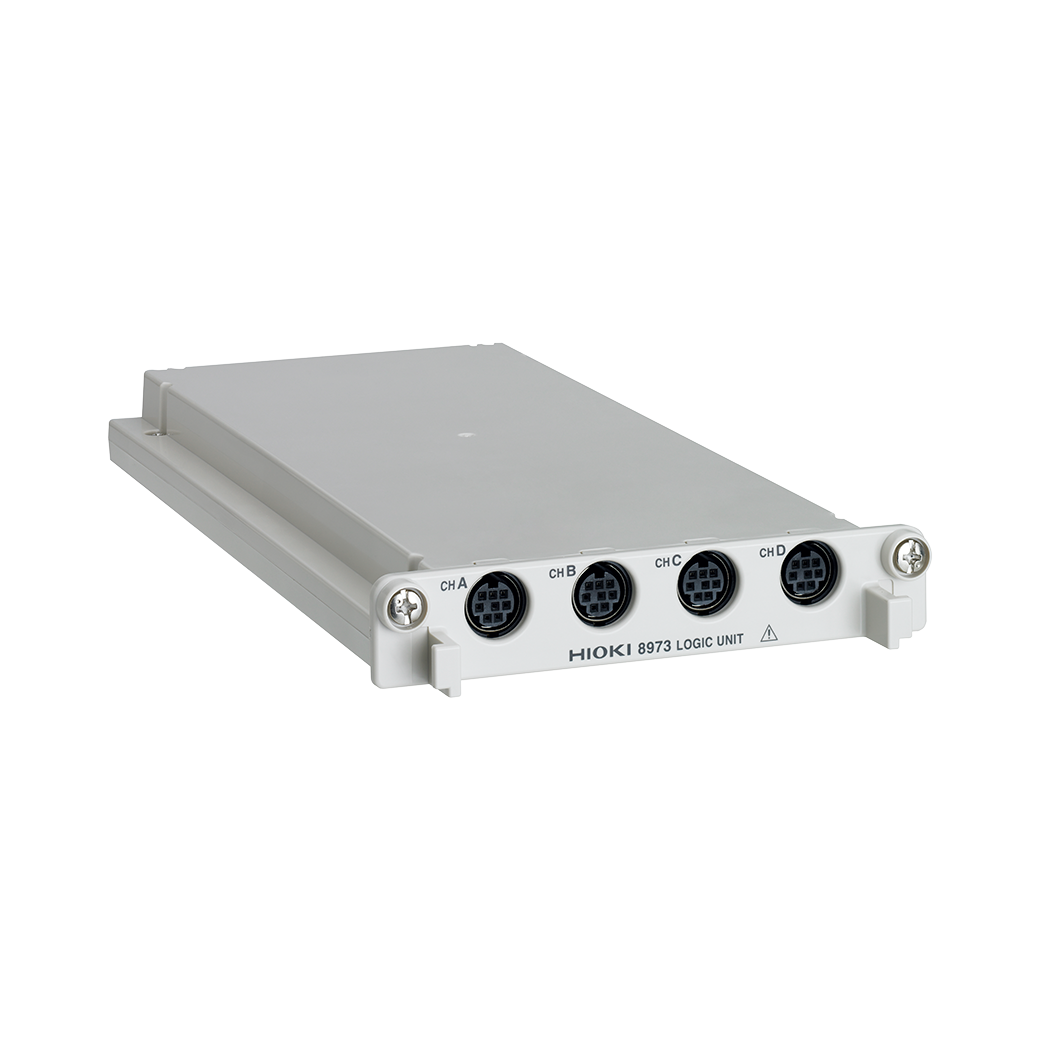

Hioki 8973 Memory HiCorder Logic Unit
Key Features
• Plug-in unit for the MEMORY HiCORDER
• Increases the number of logic probe terminals
• Install up to 4 units in the main unit to achieve a maximum of 16 logic channels
• Common ground with the main unit
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
Measurement functions | Number of channels: 16 channels (4 ch/1 probe connector × 4 connectors) |
---|---|
Input connectors | Mini DIN connector (for HIOKI logic probes only),Compatible logic probes: 9320-01, 9327, 9321-01 |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 190 g (6.7 oz) |
Accessories | None |
