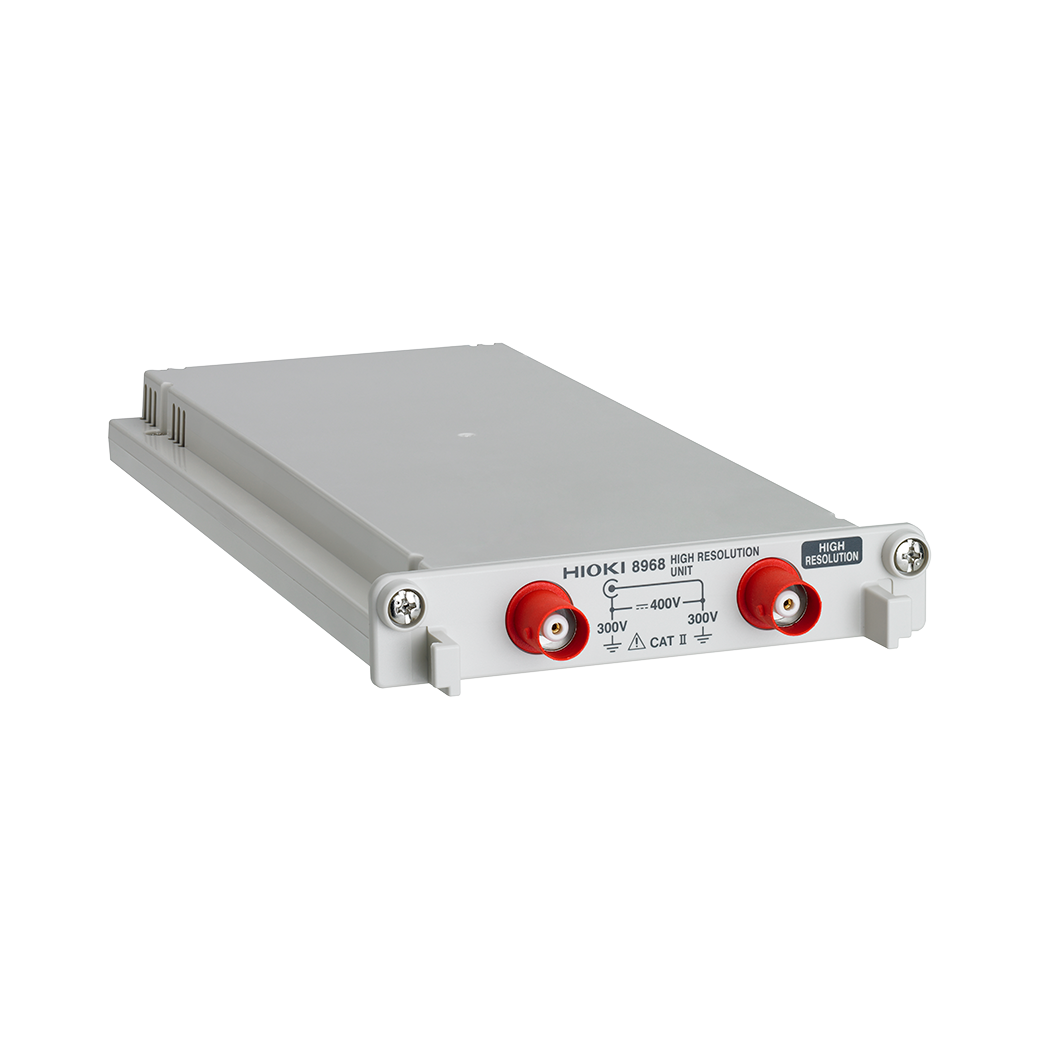

Hioki 8968 Memory HiCorder High Resolution Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
HIGH RESOLUTION UNIT8968
Instantly Measure Waveforms Using 16-bit high Resolution
Discover the possibilities
More information
Description
Key Features
• 16-bit A/D high resolution measurement
• Reliably capture instantaneous waveforms using high speed 1MS/s sampling and A/D converter
• Isolated input, up to 300 V AC/DC from the earth
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement functions | Number of channels: 2, for voltage measurement |
|---|---|
| Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF),Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) |
| Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible measurement/display using the memory function: 280 V rms, Low-pass filter: 5/50/500 Hz, 5 k/50 kHz |
| Anti-aliasing filter | Integrated filter for suppressing aliasing distortion caused by FFT processing (automatic cutoff frequency setting/OFF) |
| Measurement resolution | 1/1600 of measurement range (using 16-bit A/D conversion and when installed in the 8847) |
| Highest sampling rate | 1 MS/s (simultaneous sampling across 2 channels) |
| Measurement accuracy | ±0.3 % of full scale (with filter 5 Hz, zero position accuracy included) |
| Frequency characteristics | DC to 100 kHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB |
| Input coupling | AC/DC/GND |
| Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) |
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
| Accessories | None |
