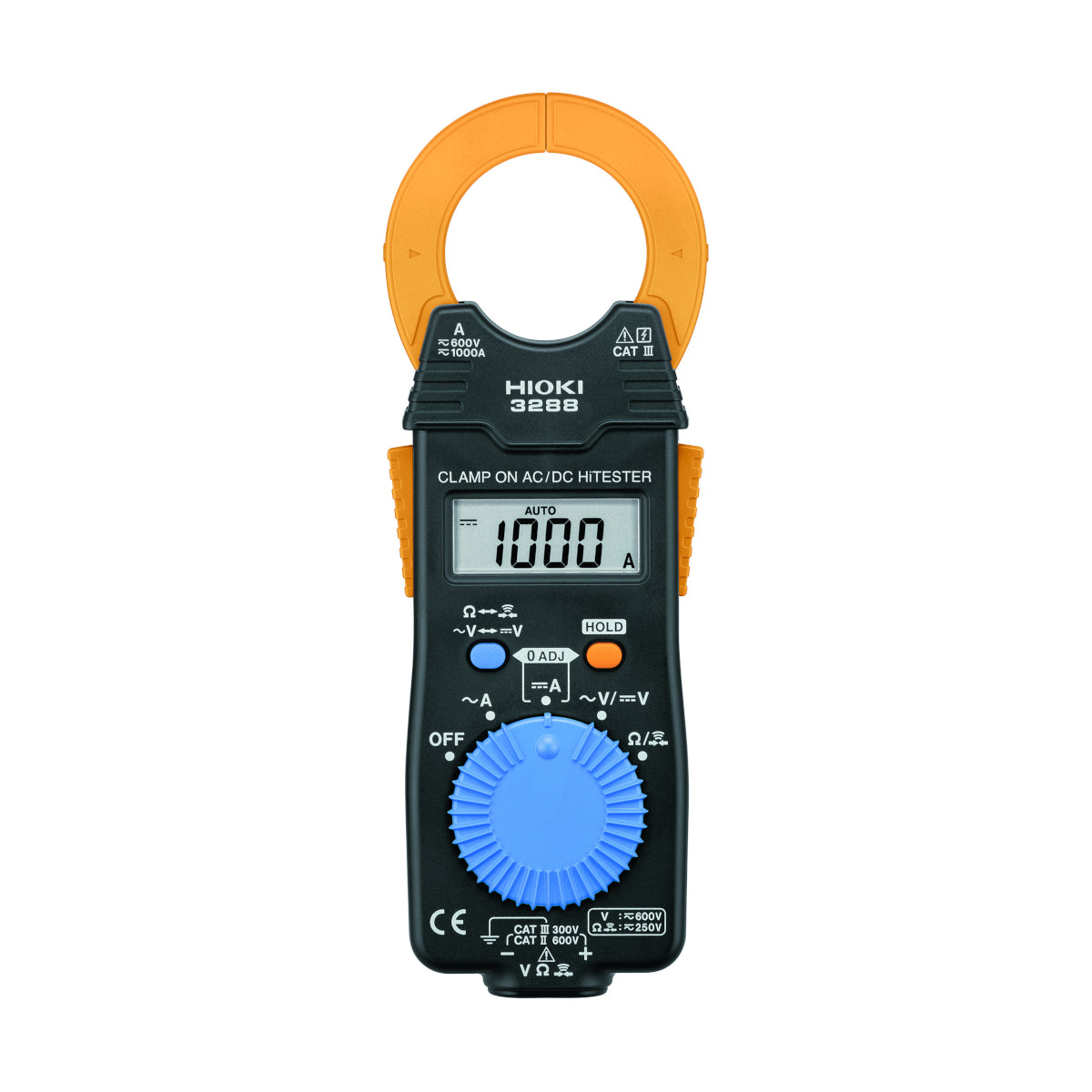

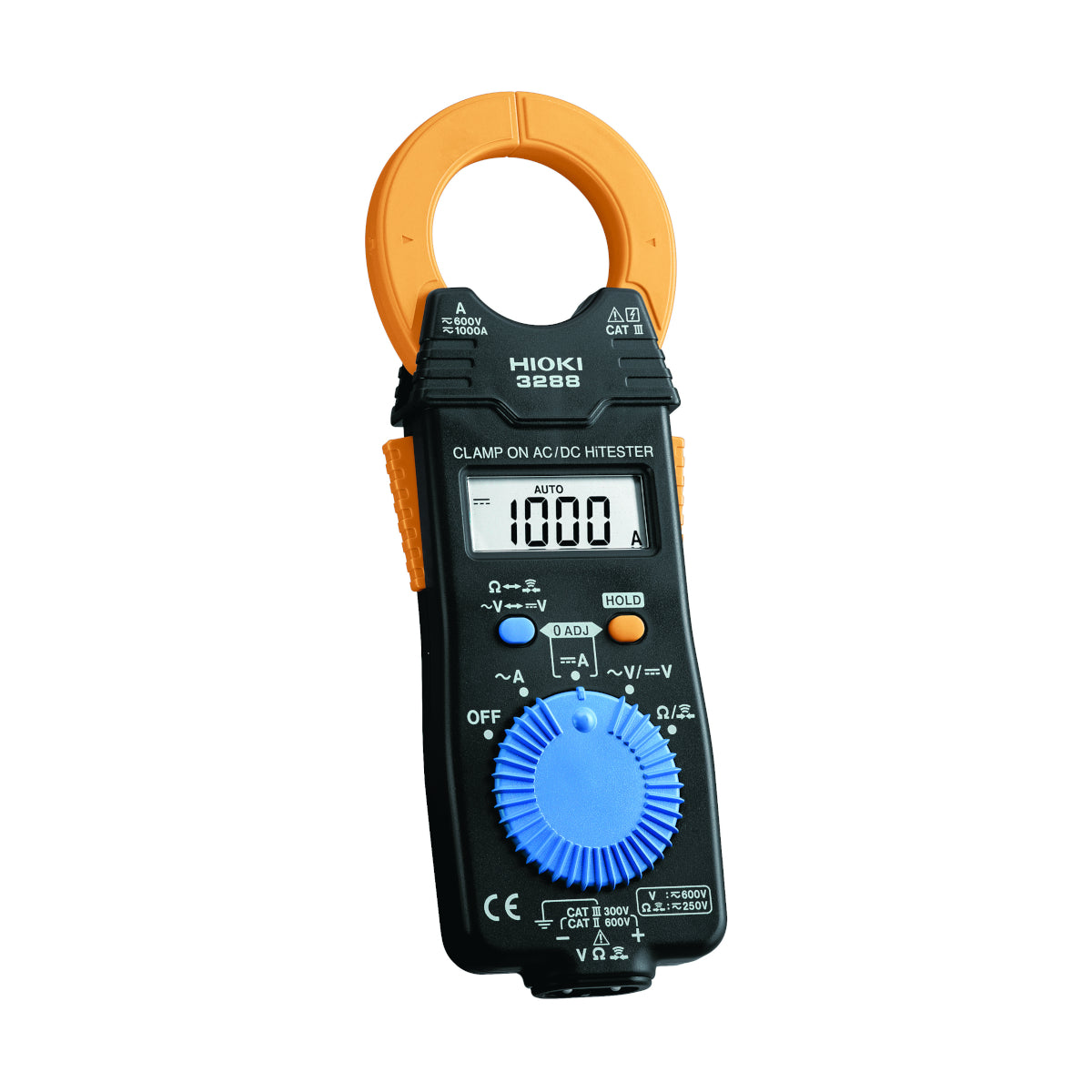

Hioki 3288 AC/DC Clamp Meter
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage)Discover the possibilities
More information
Description
Hioki 3288 AC/DC Clamp Meter
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage)
Key Features
• Model 3288-20: True RMS
• Use the 3288 for high current measurements such as UPS emergency batteries and train motors
• Voltage, resistance, and continuity check functions
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
3288 | 3288-20 | |
DC Current range | 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. | |
AC Current range | 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),Basic accuracy: ±1.5 % rdg. ±5 dgt. | 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),Basic accuracy: ±1.5 % rdg. ±5 dgt. |
DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. | |
AC Voltage range | 4.199 V to 600 V, 4 ranges,Basic accuracy: ±2.3 % rdg. ±8 dgt.(30 to 500 Hz, Average rectified) | 4.199 V to 600 V, 4 ranges,Basic accuracy: ±2.3 % rdg. ±8 dgt.(30 to 500 Hz, True RMS) |
Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. | |
Crest factor | N/A | 3 or less (2 at 1000 A range, 1.5 at Voltage) |
Other functions | Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) | |
Display | LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s | |
Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 60 hours | Coin type lithium battery (CR2032) ×1, Continuous use 35 hours |
Core jaw dia. | φ 35 mm (1.38 in) | |
Dimensions and mass | 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz) | |
Accessories | Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1 |
Documents
Hioki 3288 AC/DC Clamp Meter
Hioki 3288 DatasheetOptions
Hioki 3288 AC/DC Clamp Meter
3288 | Average rectified |
---|---|
3288-20 | True RMS |
