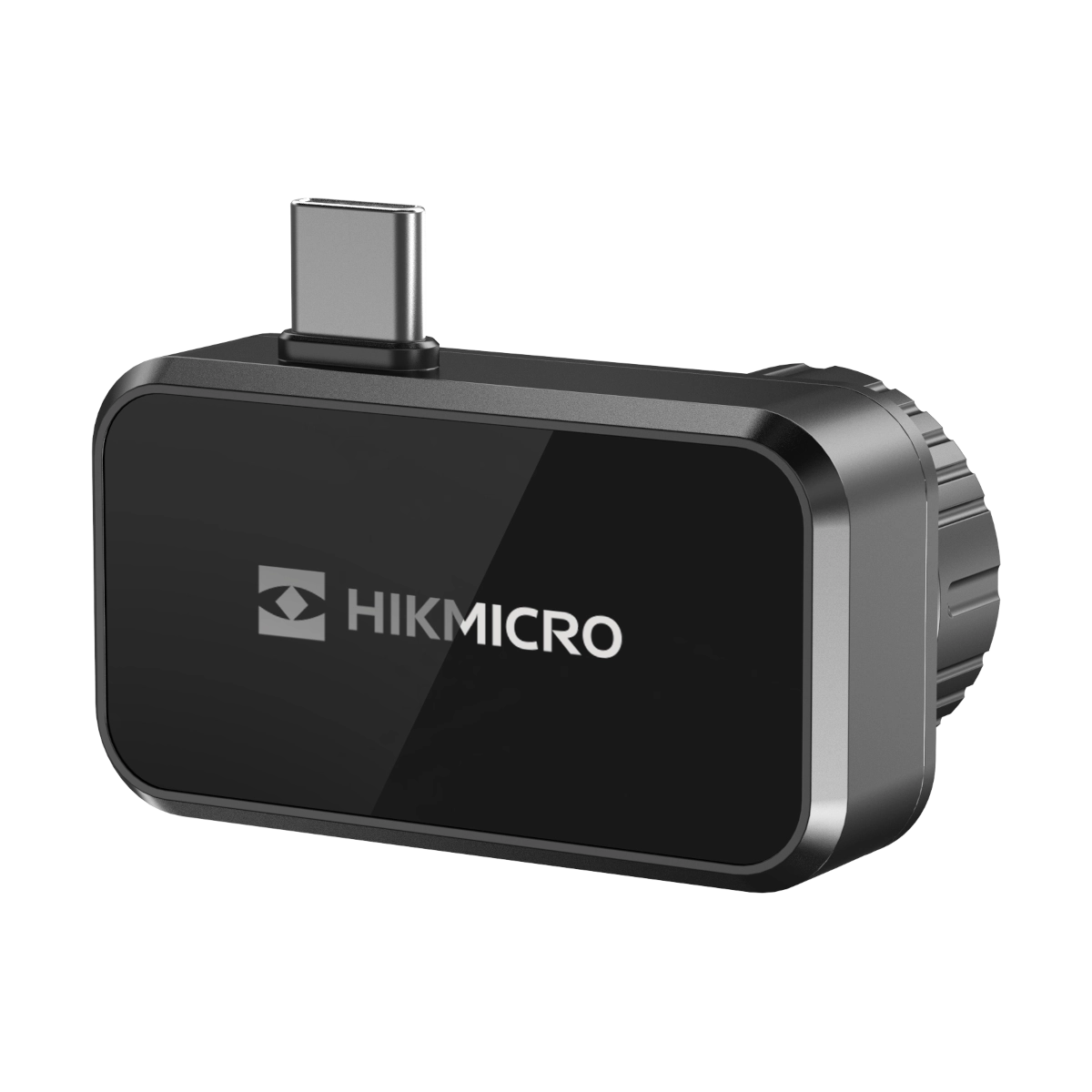

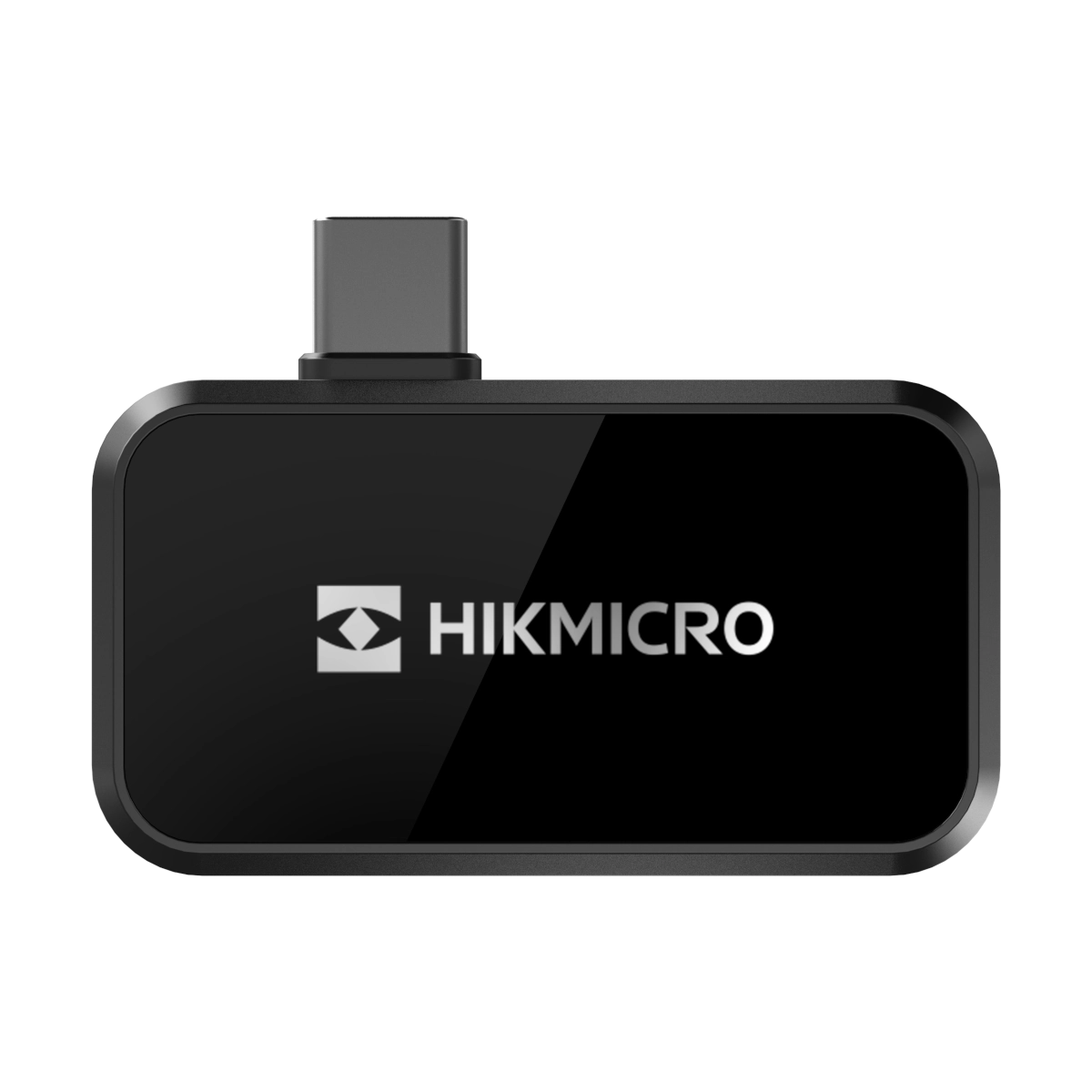

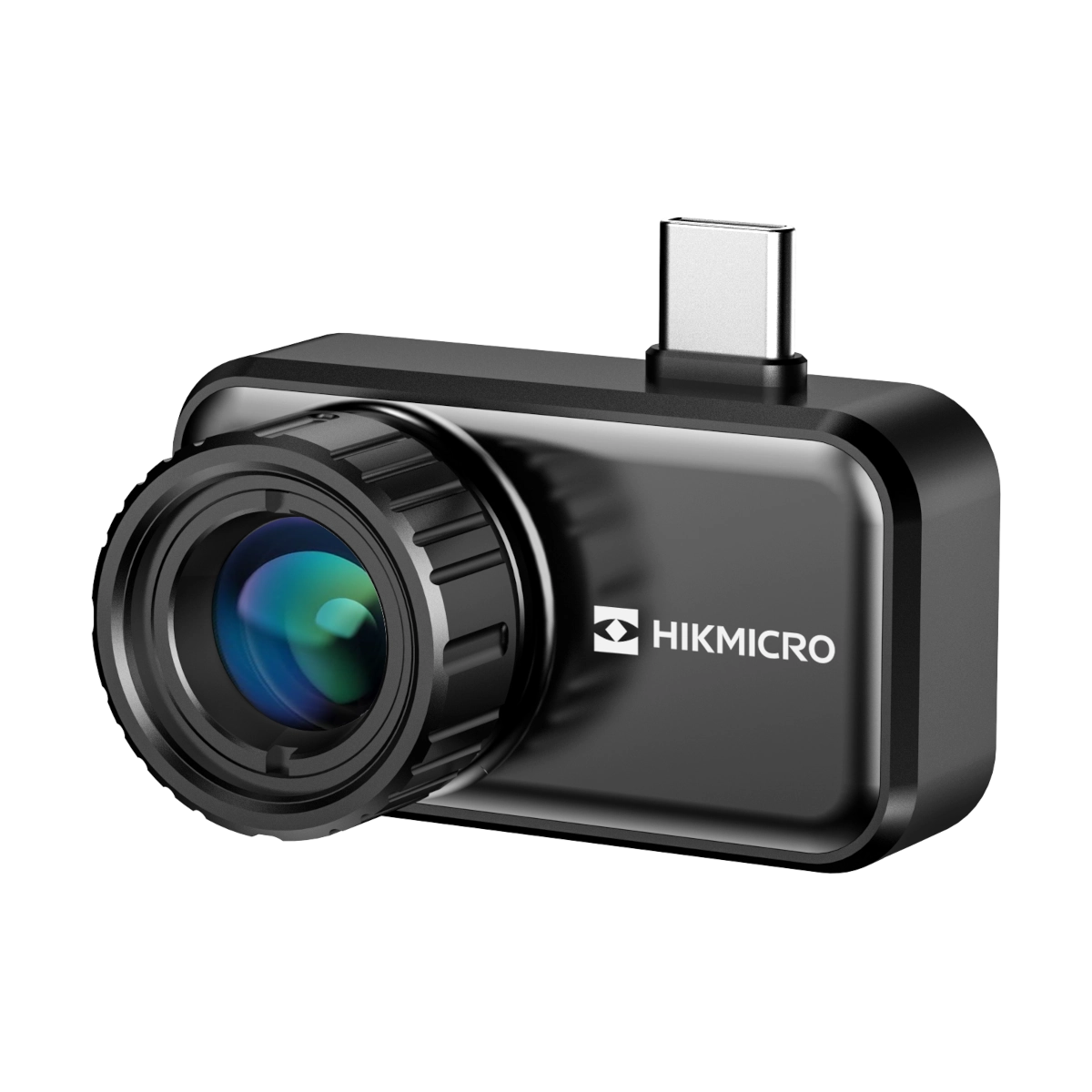

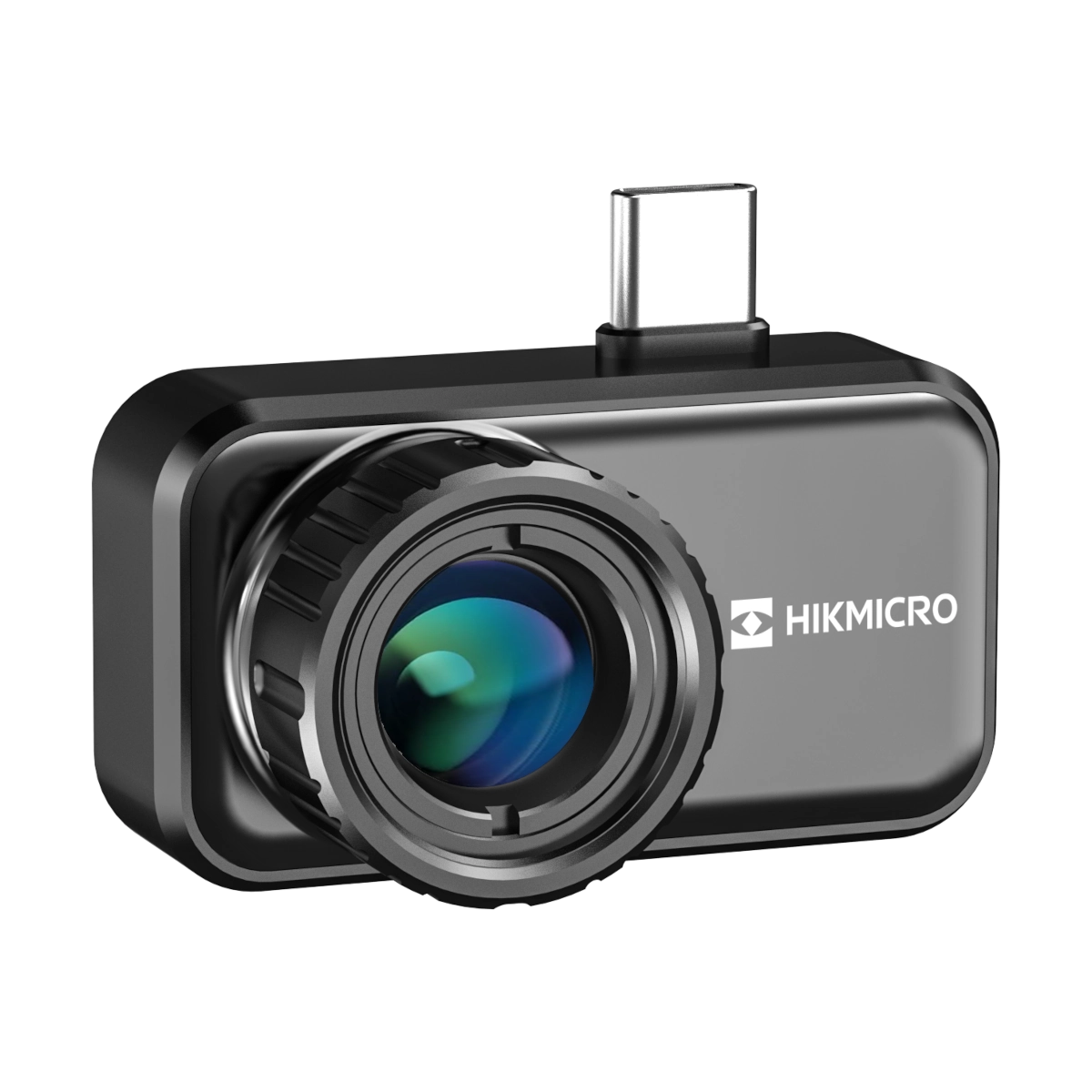

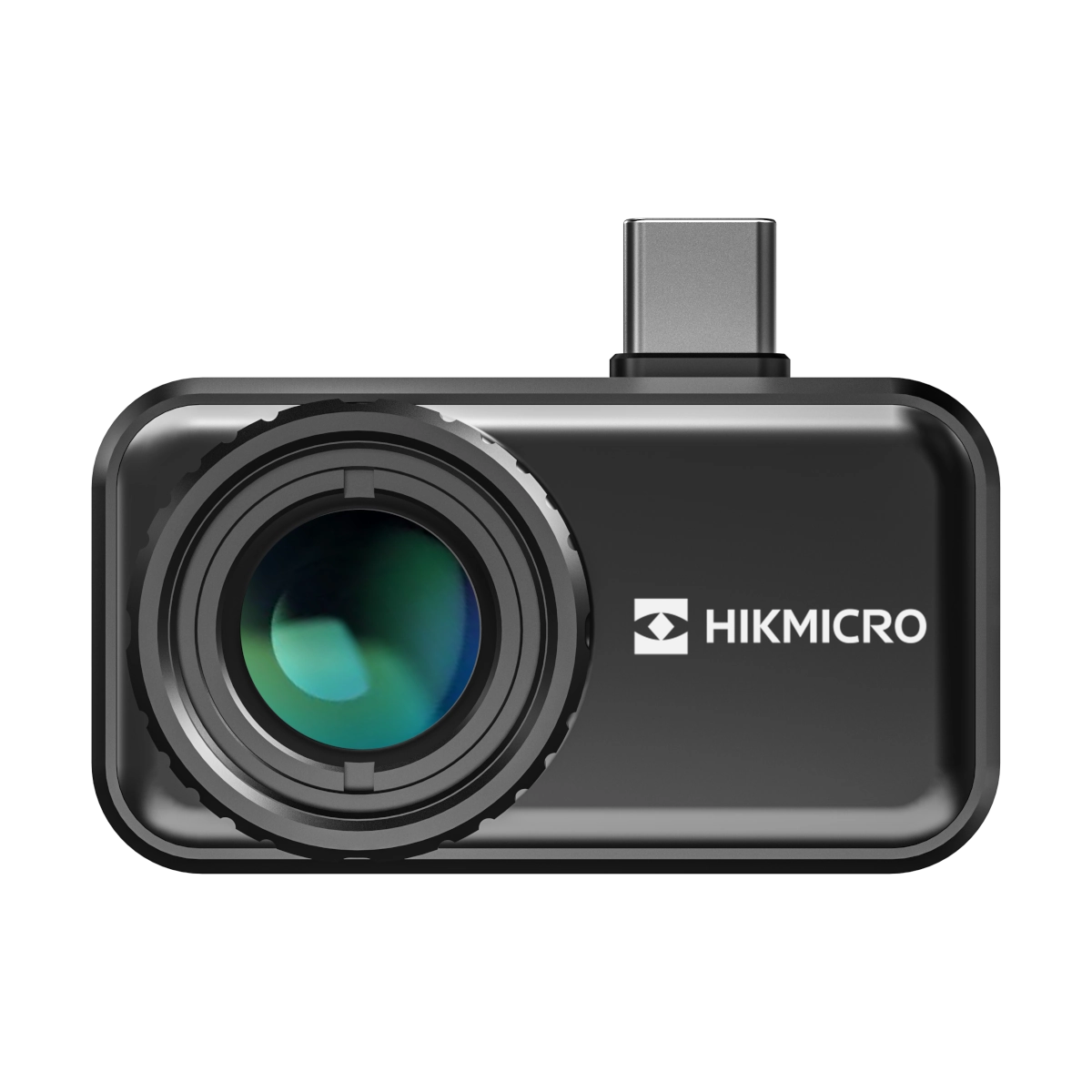

HIKMICRO Mini3 Thermal Camera Phone Attachment
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- IR Resolution - 384 × 288 (110,592 pixels)
- NETD - ≤35 mK (@ 25 °C, F#=1.0)
- Image Frequency - 25Hz/50Hz (Need 8 GB RAM on the mobile devices or more if you want to enable 50Hz)
- Detector Pitch - 12μm
- Spectral Range - 7.5 to 14 μm
- Focal Length - 10mm
- F-number - F1.0
- Field of View (FOV) - 26° × 19°
- Focus Mode - Manual Focus
- Min. Focus Distance - 0.3 m (0.98 ft)
Discover the possibilities
More information
Description
Premium Performance, Small Package - Explore your world in thermal with high accuracy
01. Super Clear Thermal Image
Mini3 features a highly sensitive (NETD < 30 mK) VOx detector with a resolution of up to 384 x 288 (110,592 pixels), along with optimized image enhancement algorithms to provide clear thermal images.
02. 50 Hz Smooth Video
50 Hz image refresh provides a smooth image and video while panning across scenes or viewing moving items.
(Need 8 GB RAM on the mobile devices or more if you want to enable 50Hz)
03. Accurate Temperature Measurements
Mini3 accurately measures temperatures from -20°C (-4°F) to 650°C (1202°F), with a temperature accuracy up to ±2°C (±0.5°F) / ± 2%.
04. Mini Size
At just 47.6 × 26 × 26.59 mm (1.87 × 1.02 × 1.05 in) and weighing only 45 g (1.59 oz), it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.
Ready for any job or just for fun - Small, easy to carry, and ready 24/7 for almost anything
01. Plug and Play
Instantly attaches to your Android smartphone or tablet and is ready to go in seconds.
02. Battery-free
Mini3 is battery free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
03. Durable and Rugged
Designed for where you work, live or relax, the Mini3 features IP40-rated aluminum alloy housings, passes strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.
Mini3 - Connecting with you
01. Manual Focus
Mini3 is equipped with a manual focus lens for inspection at various distances from 30 cm (0.98 ft) to infinity. Viewing small objects like electronic components, or viewing more distant objects like electrical or mechanical equipment that require a safe distance.
02. Essential Accessories Included
A 40 cm (15.75 in) extending cord connects between your device and the camera allowing remote viewing, and inspection through narrow, confined openings, or difficult-to-reach places. Also included is an 18 mm extended connector to accommodate smartphones or tablets in a protective case. A storage case is provided for storing your camera.
03. Mini Series APP for smartphone or tablet
Mini3 is compatible with our free HIKMICRO Viewer for smartphones providing a user-friendly user interface and the link to operating the camera.
Quick Temperature Measurement
Full screen measurement: Center Spot, Hot Spot, Cold Spot, 3 Custom Spots and 3 Areas.
15 Different Color Palettes
Find invisible problems more easily.
Multiple Professional Settings
Providing professional settings like emissivity/distance/range of your thermal camera allows you to get the best thermal imaging images and temperature readings of different surfaces.
High Temperature Alarm
Give the operator audio and visual alerts to high temperatures. Instant notification when the temperature exceeds the preset alarm level.
What's in the Box?
- Protective Case
- 40cm Extension Cord
- USB-C to USB-C Extension Adapter
- User Manual
- Mini3 Thermal Imager
*Note: The fusion feature of the Mini Series thermal camera is deleted after HIKMICRO Viewer V2.0.0.
*Data is subject to change without notice. The thermal pictures are for reference only, the actual effect shall prevail.
Please always check national provisions and regulations before purchase or use.
