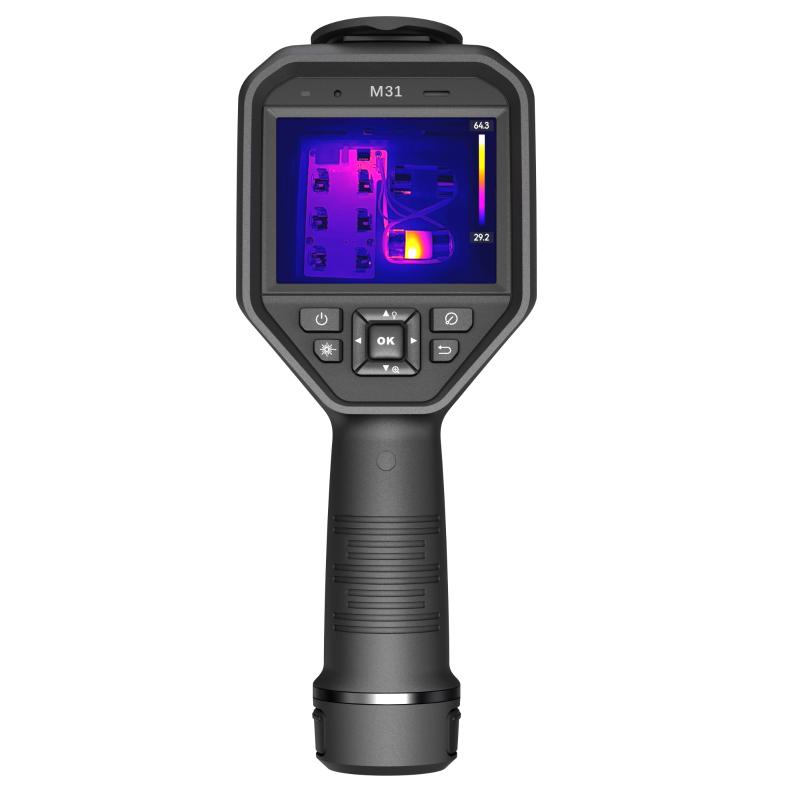

HIKMICRO M31 Handheld Thermography Camera

HIKMICRO M31 handheld camera is specially designed for temperature measurement. It’s equipped with a 384 x 288 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

Key Features

• High sensitivity thermal module with 384 x 288 resolution
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Supports multiple palettes
• High quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20°C ~650°C
• High temperature measurement accuracy: Max (± 2°C/3.6°F, ± 2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
• 640 x 480 resolution 3.5'' LCD touch display
• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• Supports 1.0x to 8.0x continuous digital zoom

Enhanced Image Quality with SuperIR

Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.

Manual Focus

Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft)
and still capture sharp images and more accurate results from further away. (M11W, M20W features a focus-free lens.)

Interchangeable Battery System

HIKMICRO M series Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.

Complete Image Annotations

Quickly annotate your images with voice, text, picture note QR codes, tag note, make your work more efficient with M series.

1-Tap Level & Span

HIKMICRO M series supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems. Touchscreen, instantly improving image contrast and highlighting potential problems.

5 Image Modes

Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.

Precise, Flexible, Stable Microscope Stand

Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis.

Rugged & Durable Design

HIKMICRO M series with IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.

Laser Pointer

The Laser Pointer with HIKMICRO M series helps show the position of the center point on actual object.
Analyze, share images, and generate reports in real-time on-site.

HIKMICRO Viewer

Connect HIKMICRO Viewer app via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.

HIKIMICRO Analyzer

HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.

Infrared Image

• IR Resolution: 384 x 288 (110,592 pixels)
• NETD: < 35 mK (@ 25 °C, F#=1.0)
• Image Frequency: 30Hz
• Detector Pitch: 12 μm
• Spectral Range: 7.5 to 14 μm
• Focal Length: 6.4mm
• F-number: F1.0
• Field of View (FOV): 41.1°×30.5°
• Spatial Resolution (IFOV): 1.87 mrad
• Focus Mode: Manual Focus
• SuperIR: 768 x 576 (442,368 pixels)
• Min. Focus Distance: 0.1 m (0.32ft)

Image Display

• Visual Camera: 3264 × 2448 (8 MP)
• Display: 640 × 480 Resolution, 3.5" LCD Touch Screen
• Screen Brightness: Manual
• Digital Zoom: 1.0x to 8.0x continuous
• Image Modes: Thermal/Visual/Fusion/PIP/Blending
• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red, Condensation Alarm
• Focus Mode Palette: Above/Below/Interval
• Color Alarm: Above/Below/Interval/Insulation

Measurement and Analysis

• Object Temperature Range: Range -20℃ to 150℃（-4°F to 302°F), Range 0℃ to 650℃（32°F to 1202°F）
• Accuracy: Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
• Measurement Tools: Center Spot, Hot Spot, Cold Spot
• Level and Span Mode:User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
• SuperScene+: Auto/Manual/1-Tap Touch-screen

Data Storage and Communication

• Storage Media: Electrical Panel, PCB Inspection
• Image Storage Capacity: Approx. 100,000 Images (8MP)
• Annotations:Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch;
• Video Storage Capacity: MP4 video max. 400h; Radiometric video max. 50h
• Video File Format: MP4 video and radiometric video
• Radiometric Infrared-Video Streaming (Compressed): Over UVC, Wi-Fi
• Extendable Memory Card: Extendable 64 GB Micro SD Card

General

• Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
• Bluetooth: Bluetooth 4.2
• USB Interface: USB Type-C
• Battery Type: Interchangeable and rechargeable Li-ion battery
• Battery Operating Time: Approx. 4 hours
• Battery Charging Time: Approx. 4 hours fully charged
• Power Saving Mode: Yes
• Protection Level: IP54
• Drop Test Height: 2 m (6.56 ft)
• Safety: IEC 61010-1
• EMC: EN 301489-1, EN 301489-17, EN IEC 61000-6-2, EN IEC 61000-6-3，EN 61326-1
• Vibration: 2 g, IEC 60068-2-6
• Shock: 25 g, IEC 60068-2-27
• Working Temperature Range: -20°C to 50°C (-4°F to 122°F)
• Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity: < 95% non-condensing
• Weight: Approx. 720g (1.59 lb)
• Dimension: 244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in)
• Tripod Mounting: UNC ¼”-20
• Warranty: 3 years for the full product, 10 years for the detector, and 2 years for the battery.
• LED Light: Yes
• Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

Datasheet:

HIKMicro M31 Datasheet
