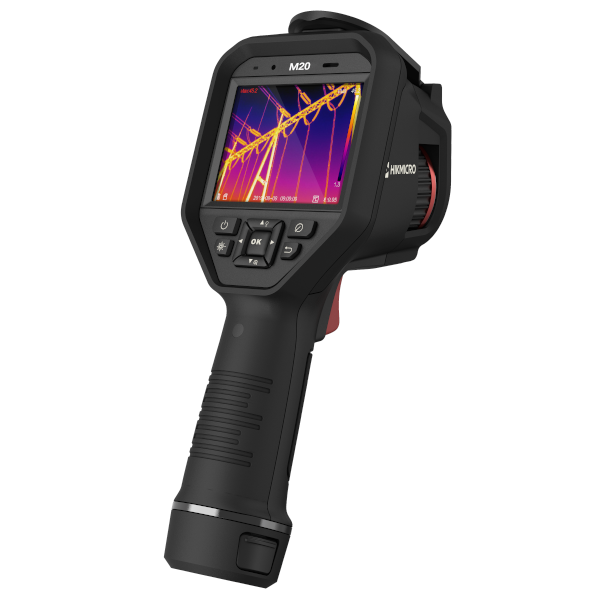

HIKMICRO M20 Handheld Thermography Camera

HIKMICRO M20 Handheld Thermography Camera

HIKMICRO M20 handheld thermography camera is specially designed for professional inspections. It’s equipped with a 256 × 192 resolution thermal detector and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20 quickly identifies potential faults, quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.

Features

• High sensitivity thermal module with 256 × 192 resolution
• Supports multiple palettes
• High quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20°C to 550°C
• High temperature measurement accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
• High-calibre 640 × 480 resolution 3.5'' LCD touch display
• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• Supports 1×, 2×, 4× and 8× digital continuous zoom
• Support remote album access, download and quick report with APP.

High Image Quality

A highly sensitive VOx detector (NETD < 35 mK), IR resolution up to 384 x 288 (110,592 pixels) provides a distinct thermal vision of the target.

Manual Focus

Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away.

Interchangeable Battery System

Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.

Multiple Image Annotations

Text or audio annotations within the images instead of taking notes by hand, helping to improve inspection efficiency and productivity.

1-Tap Level & Span

Quickly highlights the area of the image you are interested in by narrowing the span with one tap on the 3.5" LCD touchscreen, instantly improving image contrast and highlighting potential problems.

Multiple Image Mode

Thermal, Fusion, PIP and Optical modes to suit your preferred.

Rugged & Durable Design

IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.

Laser Pointer

The Laser Pointer helps show the position of the center point on actual object.

Conveniently Share Images and Reports

Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.



For more information: HIKMICRO

HIKMicro M20 Handheld Thermography Camera

HIKMicro M20 Datasheet
