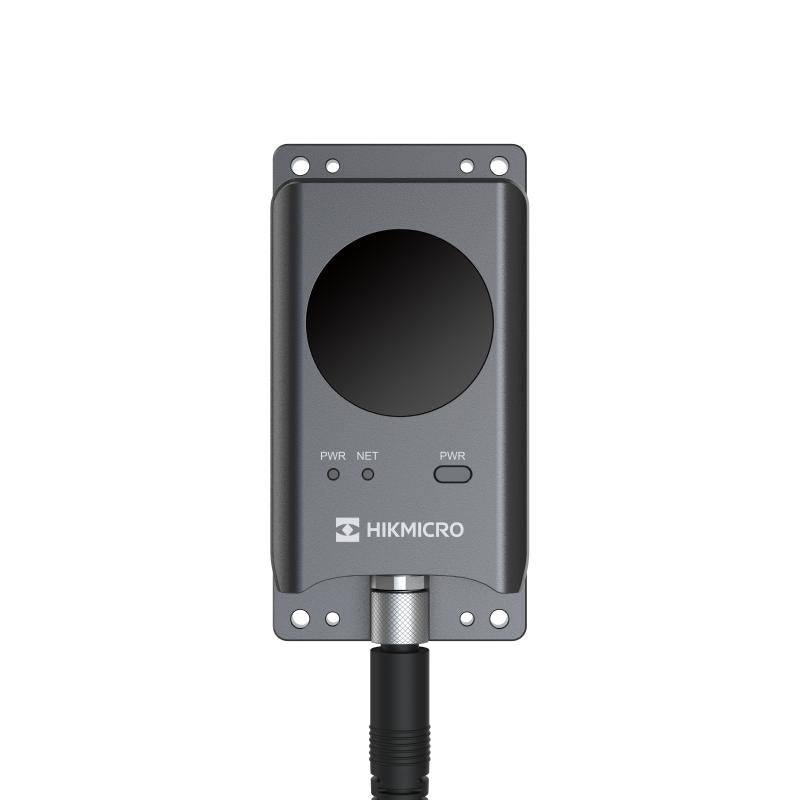

Hikmicro HM-TD3117T-1/Q Cube Camera
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Image Sensor - Vanadium Oxide Uncooled Focal Plane Arrays
- Pixel Interval - 17 μm
- Response Waveband - 8 μm to 14 μm
- NETD - Less than 40 mK (@ 25 °C,F#=1.1)
- IFOV - 13.08 mrad
- Field of View - 114° × 89° (H × V)
- Min. Focusing Distance - 0.1 m
- Aperture - F1.2
- Digital Zoom - ×2, ×4
- Focal Length - 1.3 mm
- Resolution - 160 × 120 (the resolution of output image is 320 × 240)
%0A%0AIFOV%20-%C2%A013.08%20mrad%0A%0AField%20of%20View%20-%C2%A011...
){kind=link}
Discover the possibilities
More information
Description
HIKMICRO HM-TD3117T-1/Q Thermographic cube camera offers continuous temperature monitoring and alarming with thermal image. The camera is small in size and easy to install, which can be mounted in narrow places and provides large field of view. You can use them against sudden outages, service interruptions, and failure of electrical or mechanical equipment in places such as electrical cabinets, process control and manufacturing, data centers, power plant, power distribution station, mass transit, storage facilities, and refrigeration warehouses.
Documents
Datasheet:
Options
Video
HIKMICRO HM-TD3117T-1/Q Thermographic cube camera offers continuous temperature monitoring and alarming with thermal image. The camera is small in size and easy to install, which can be mounted in narrow places and provides large field of view. You can use them against sudden outages, service interruptions, and failure of electrical or mechanical equipment in places such as electrical cabinets, process control and manufacturing, data centers, power plant, power distribution station, mass transit, storage facilities, and refrigeration warehouses.
