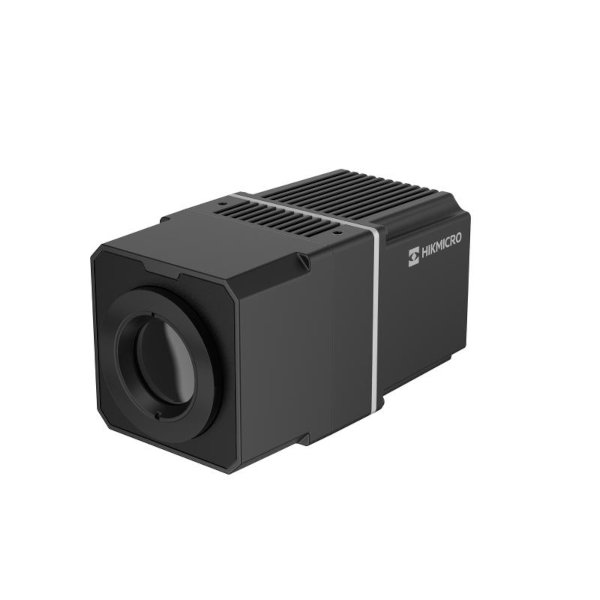

HIKMICRO HM-TD2A37T-15/Q Auto-Focus Box Camera

Sale price22.500,00 kr
28.125,00 incl. VAT
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Pitch: 17 ?m
  • NETD: < 35 mK (25 °C, F# = 1.0)
  • Focus Mode: Semi-auto & Manual;Athermalized
  • IFOV: 1.13 mrad
  • Field of View: 25.3° × 18.9° (H × V)
  • Min. Focusing Distance: 0,5 m
  • Aperture: F 1.0
  • Focal Length: 15 mm
  • Resolution: 384 × 288

Discover the possibilities

More information

HIKMICRO HM-TD2A37T-15/Q Auto-Focus Box Camera

The HIKMICRO HM-TD2A37T-15/Q Thermographic Network Box Camera with small size, low power consumption and simple integration realizes
real-time high-accuracy object temperature measurement.
  • High sensitivity sensor with 384 x 288 resolution
  • Object temperature range: -20°C to 150°C (-4°F to 302°F), 0 °C to 650 °C (32°F to 1202 °F); Max (±2 °C, ±2%)
  • Temperature measurement at user-defined points, lines, and areas
  • Thermal image frame rate: 50 fps
  • A highlighted cross at the max. temperature in the thermal image
  • Color alarm (isotherm) available for Above, Between, and Below object temperatures
  • Support mirroring, digital zoom(2x,4x,8x)
