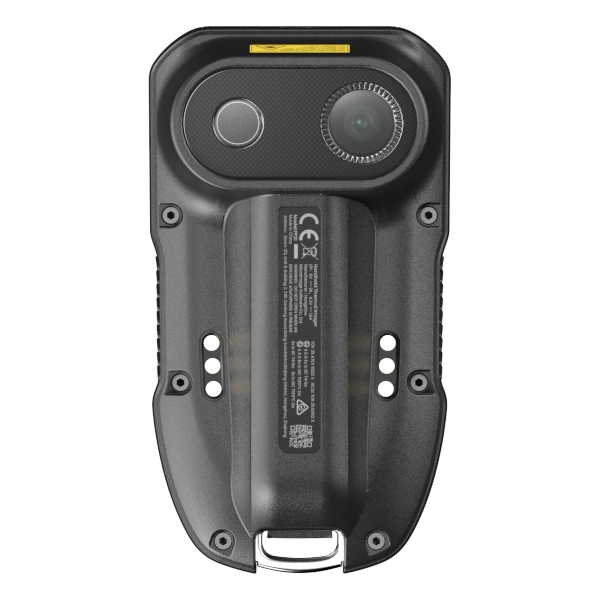

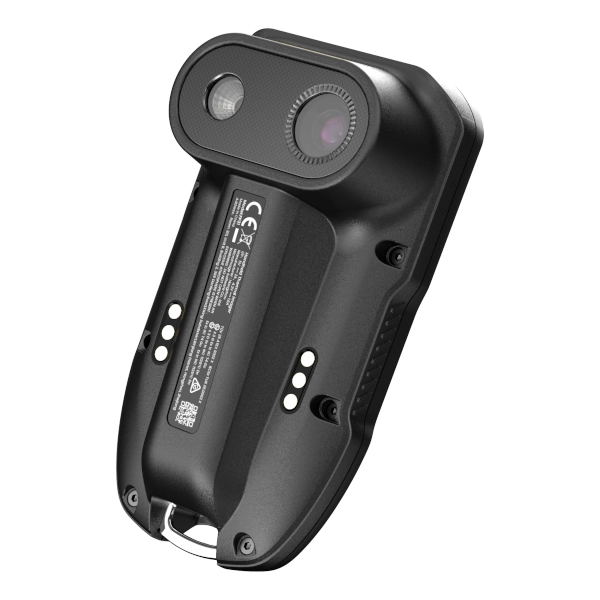

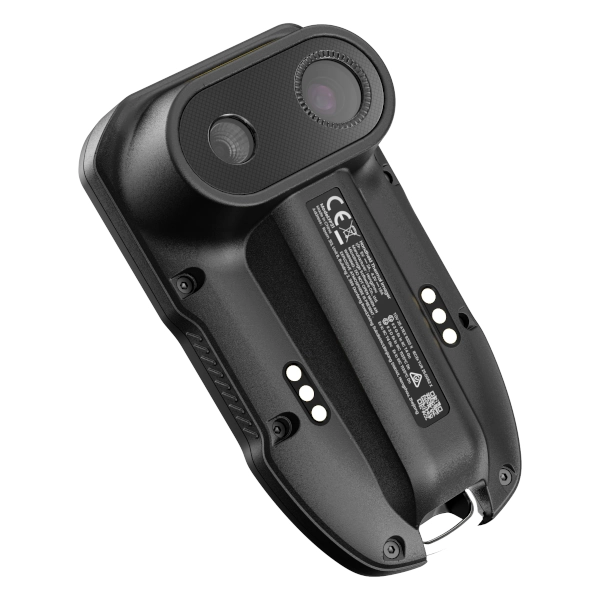

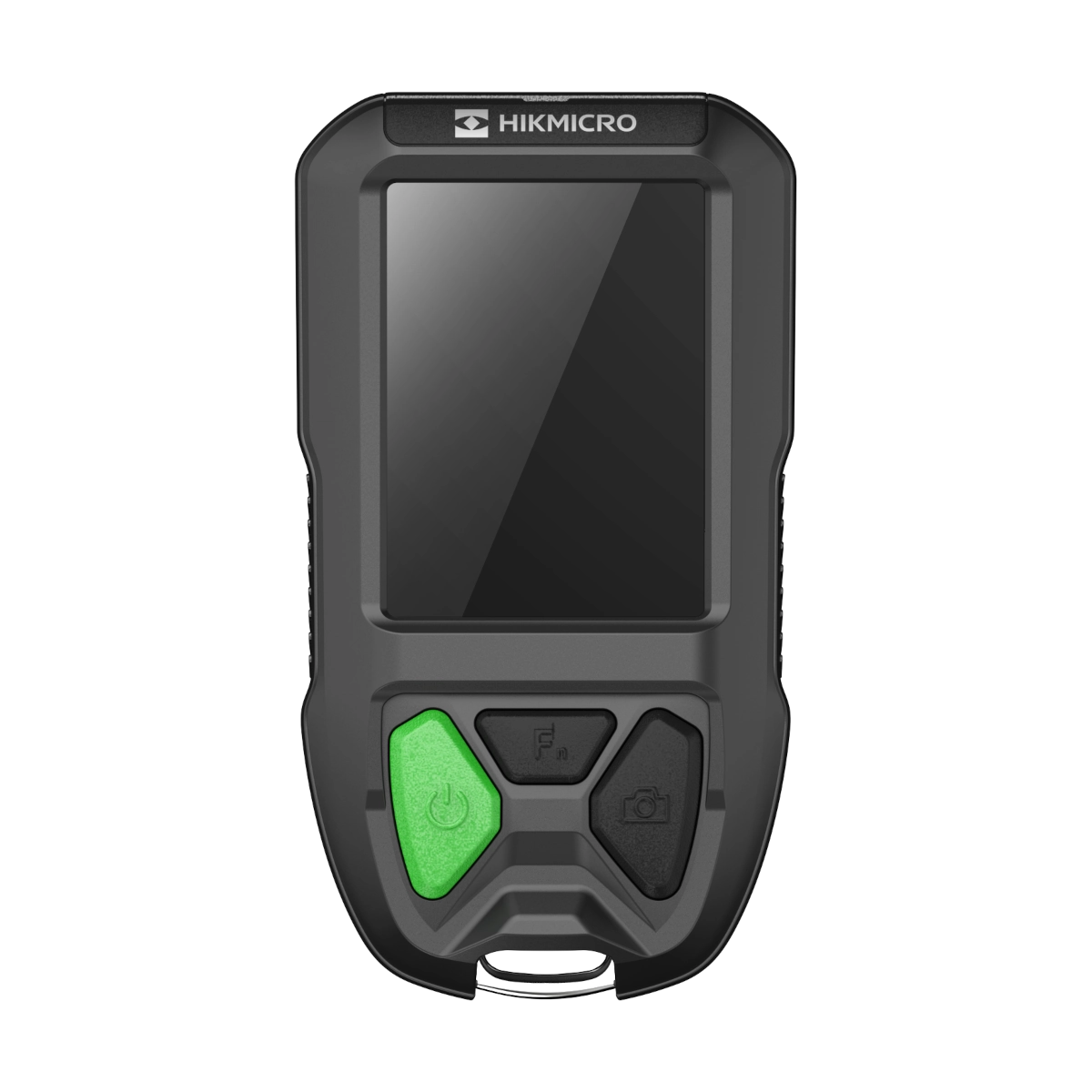

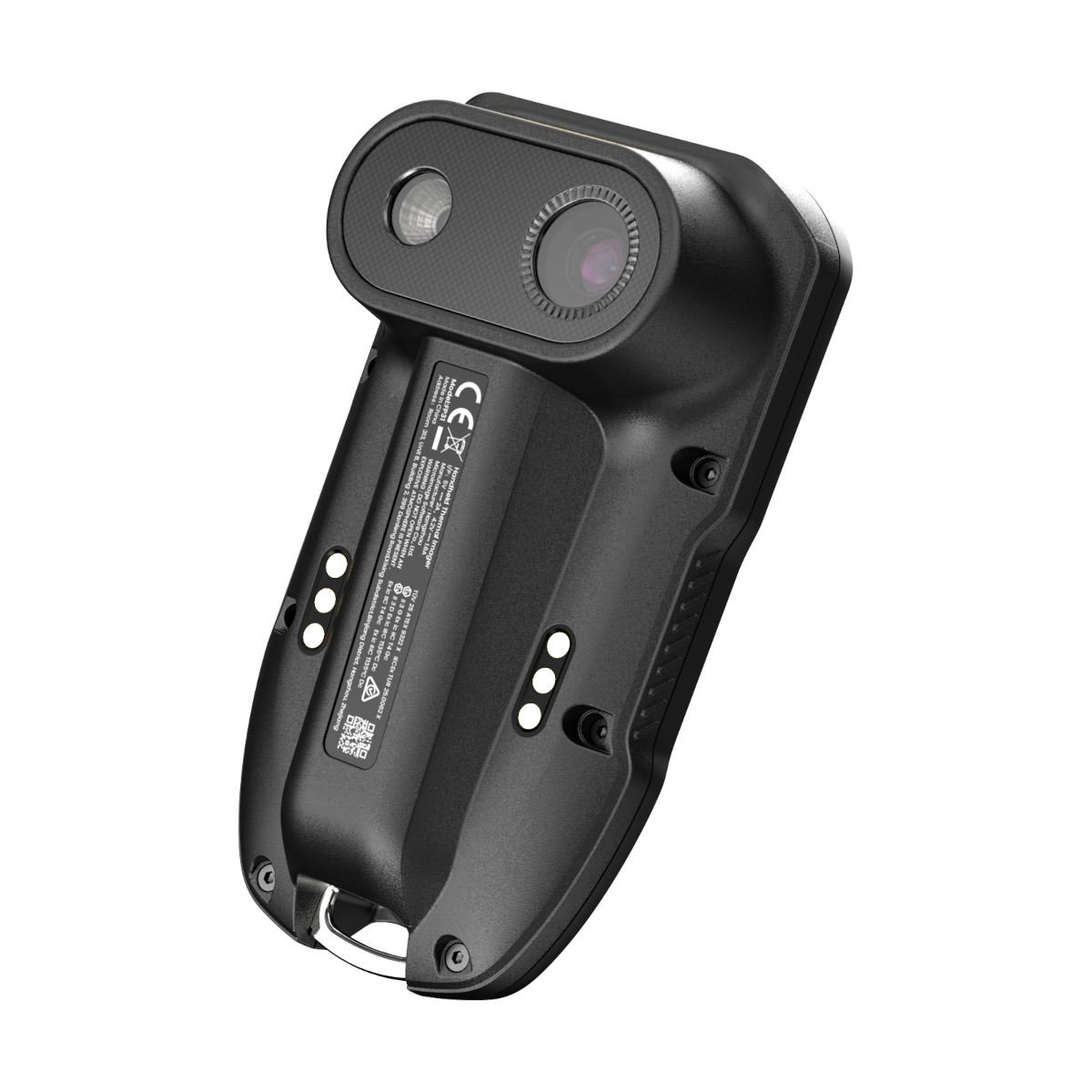

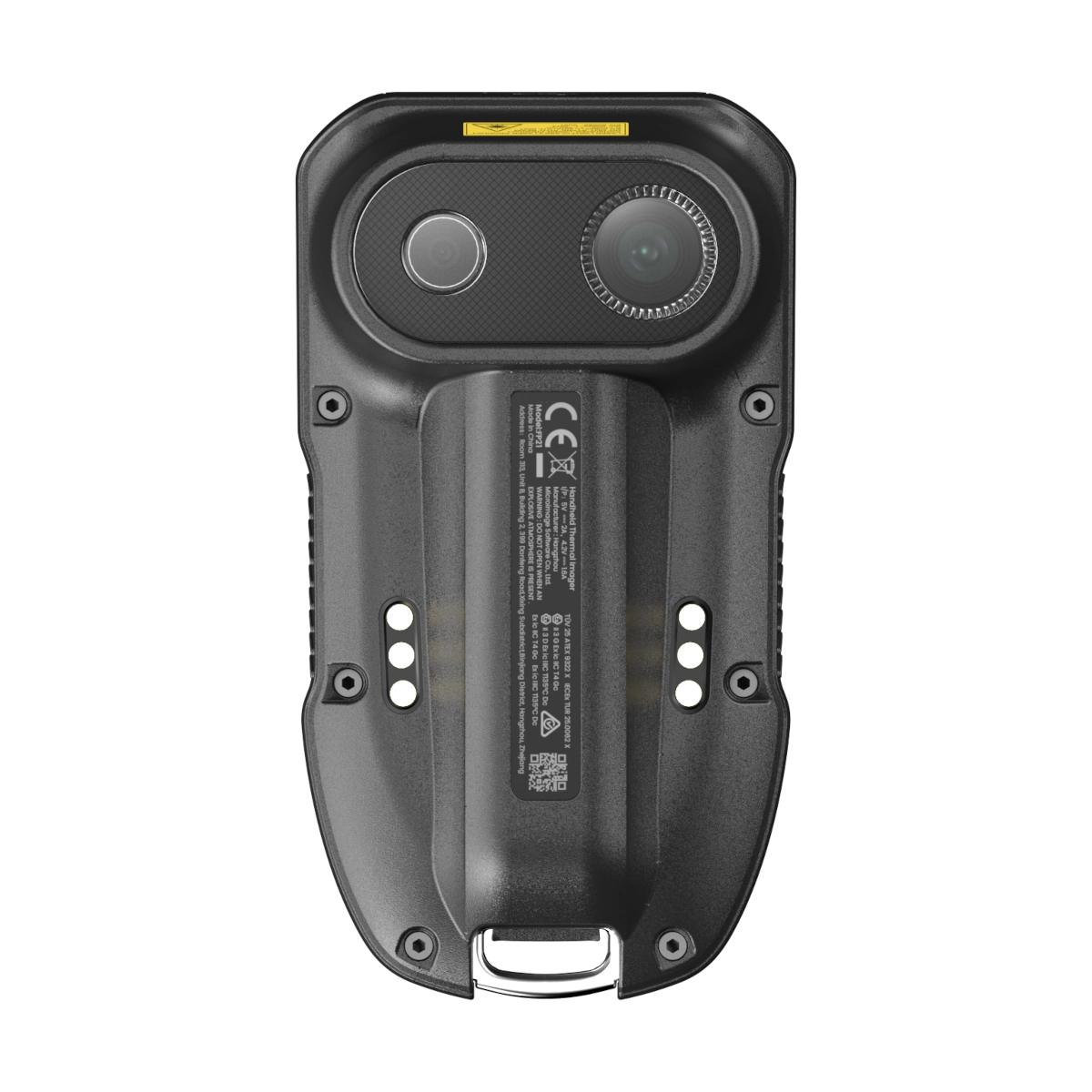

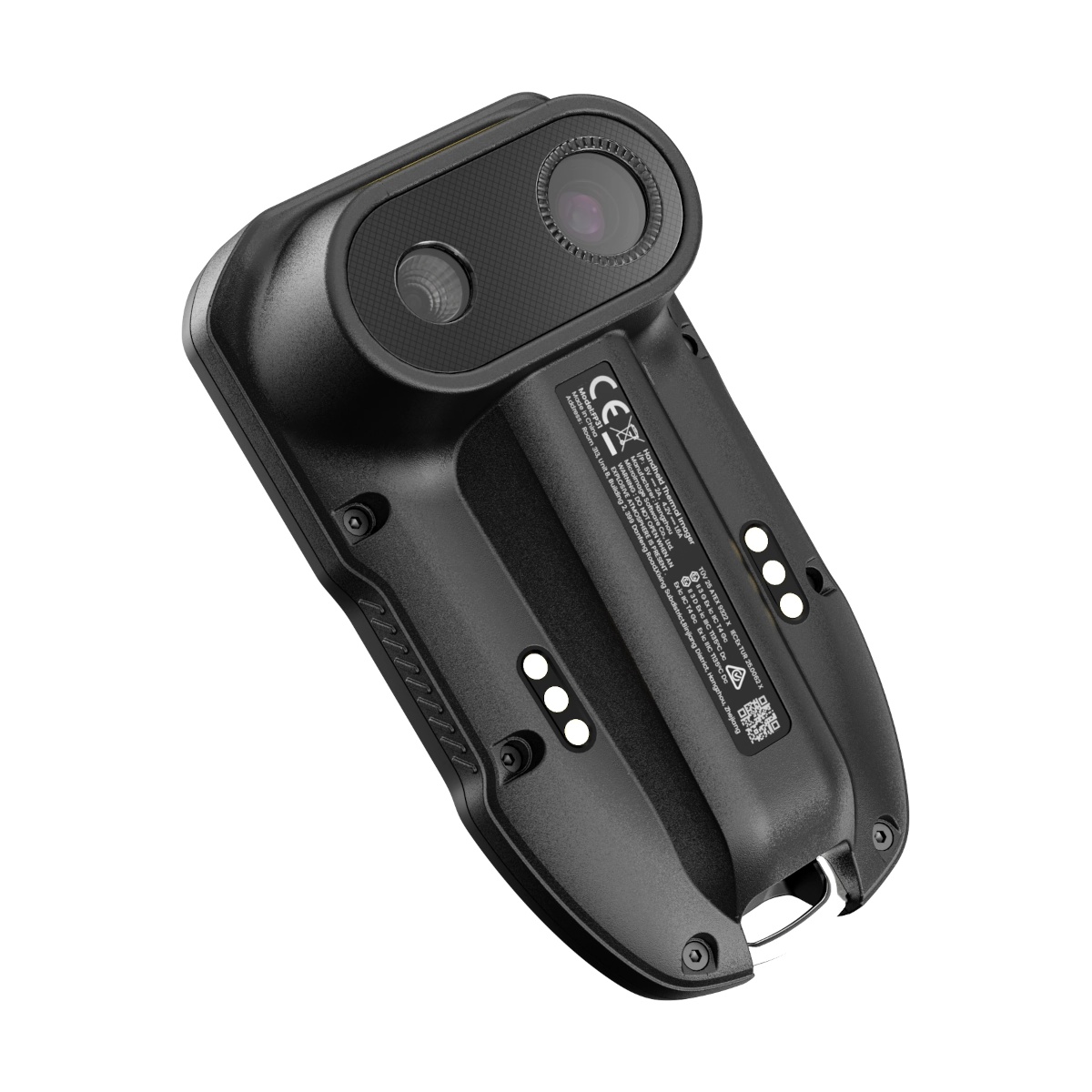

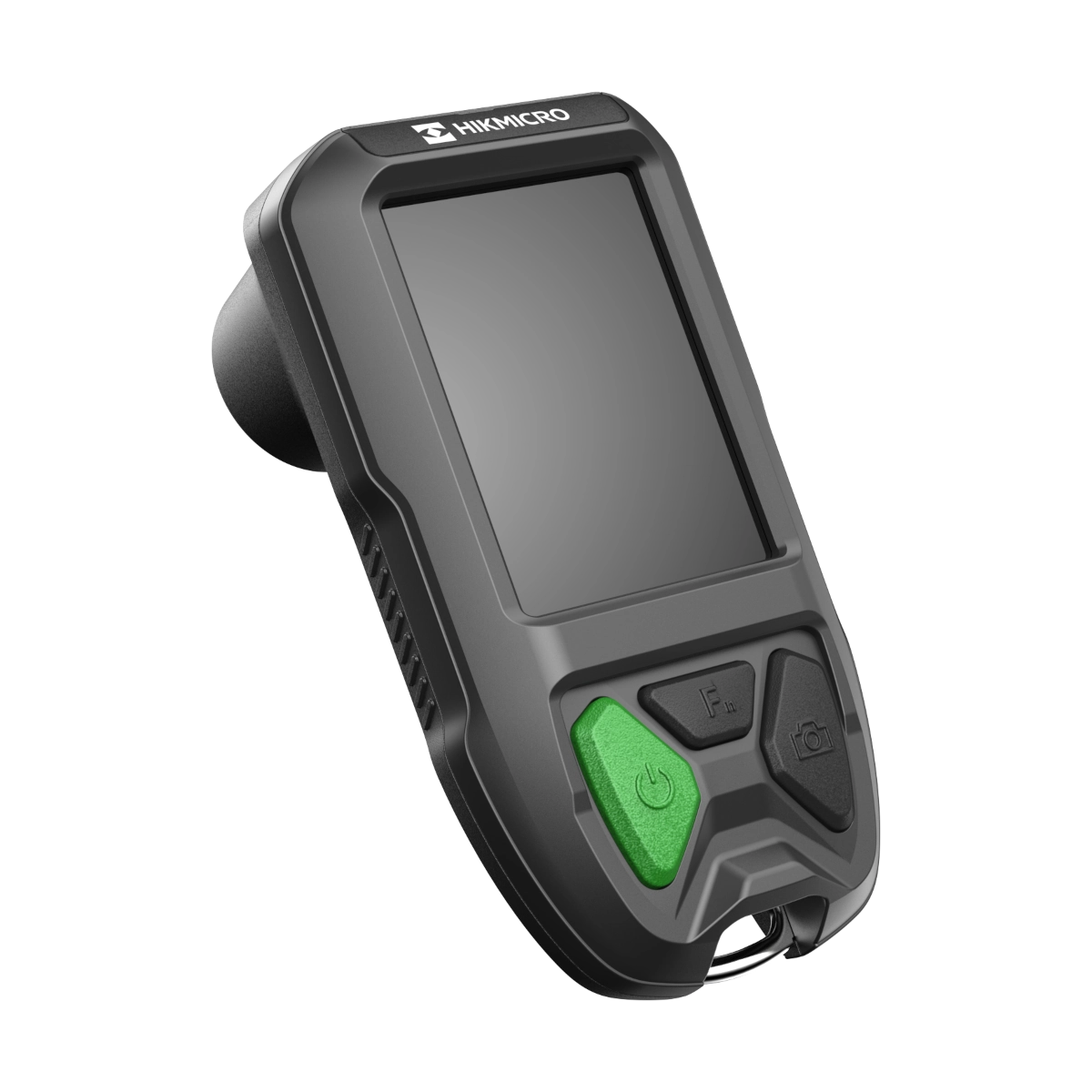

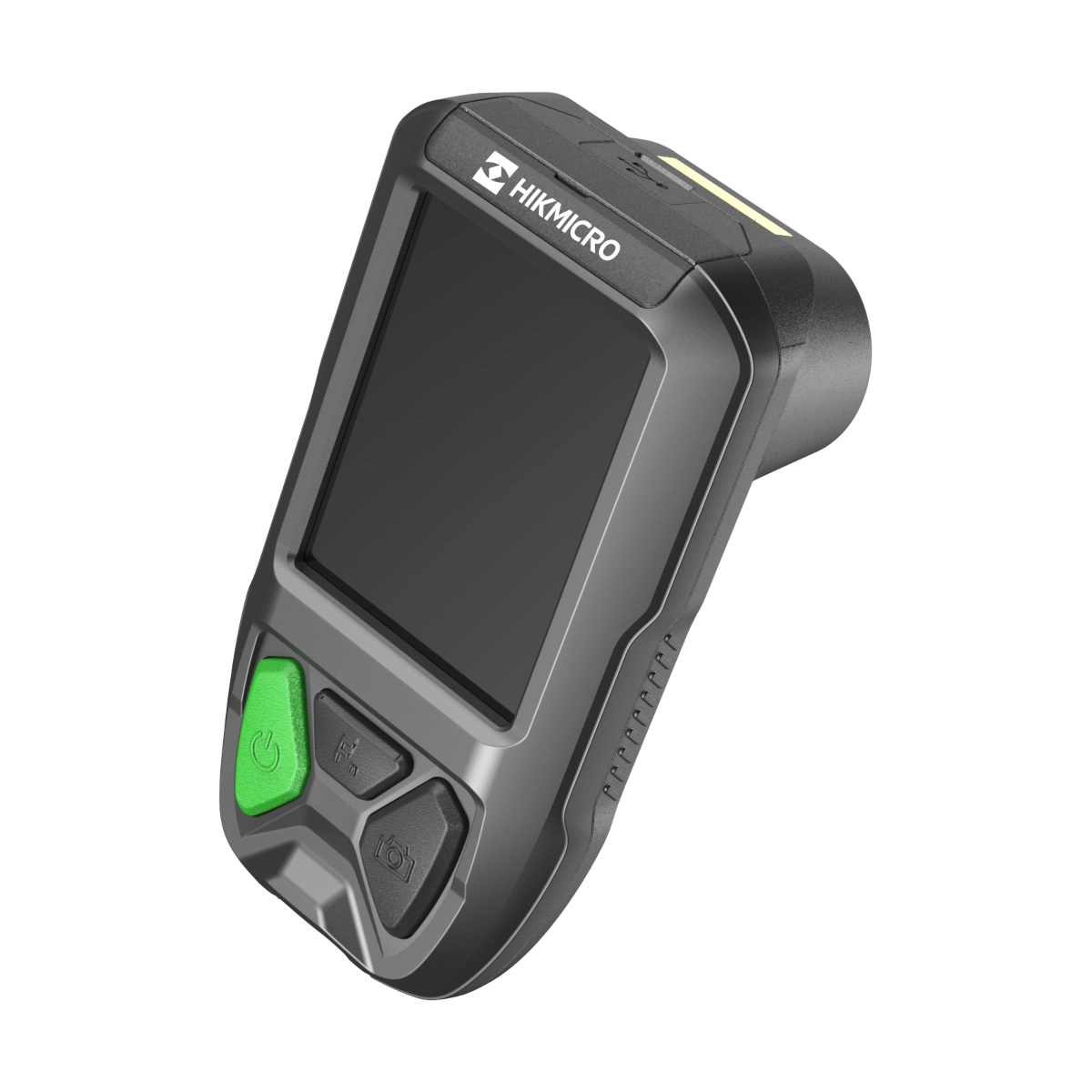

HIKMICRO FP21 Handheld Firefighting Thermography Camera
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- IR Resolution - 256 × 192 (49,152 pixels)
- NETD - < 30 mK (@ 25 °C, F#=1.0)
- Image Frequency - 25 Hz
- Detector Pitch - 12 μm
- Spectral Range - 7.5 to 14 μm
- Focal Length - 3.6 mm
- F-number - F1.0
- Field of View (FOV) - 50.0°×37.2°
- Spatial Resolution (IFOV) - 3.33 mrad
- Focus Mode - Focus Free
- Min. Focus Distance - 0.3 m (0.98 ft)
- SuperIR - Yes, on captured images and live view
%0ANETD%20-%20%26lt;%2030%20mK%20(@%2025%20%C2%B0C,%20F%23=1.0)%0A%0AImage%20Frequency%20-%2025%20Hz%0A%0ADetector%20Pitch%20-%2012%20%CE%BCm%0A%0ASpectral%20Range%20-%207.5%20to%2014%20%CE%BCm%0A%0AFocal%20Length%20-%203.6%20mm%0A%0AF-number%20-%20F1....
){kind=link}
Discover the possibilities
More information
Description
Enhanced Image Quality with SuperIR
HIKMICRO’s SuperIR technology is powered by a neural network algorithm trained on a vast dataset of images to enhance thermal image quality. The FP21 features real-time SuperIR, significantly improving image clarity while maintaining smooth performance.

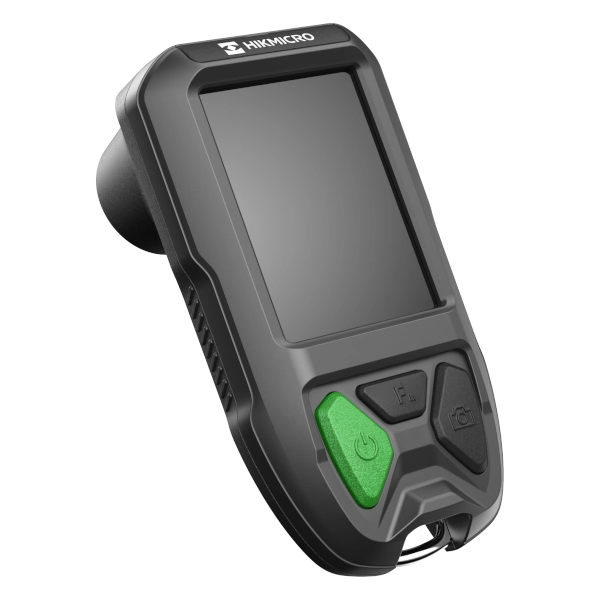

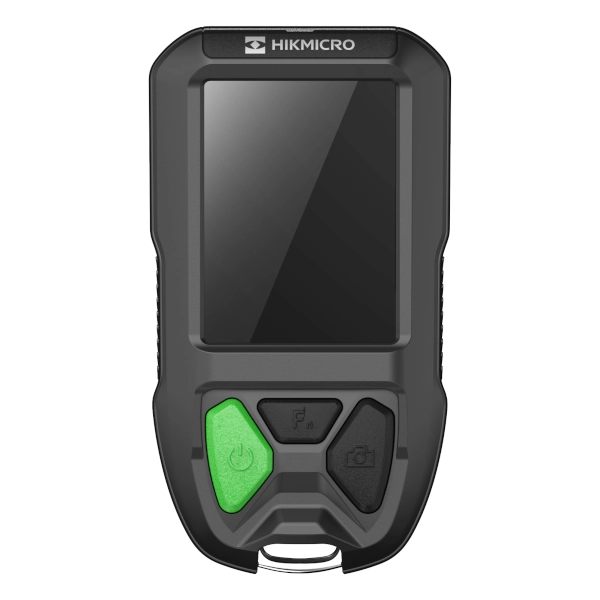

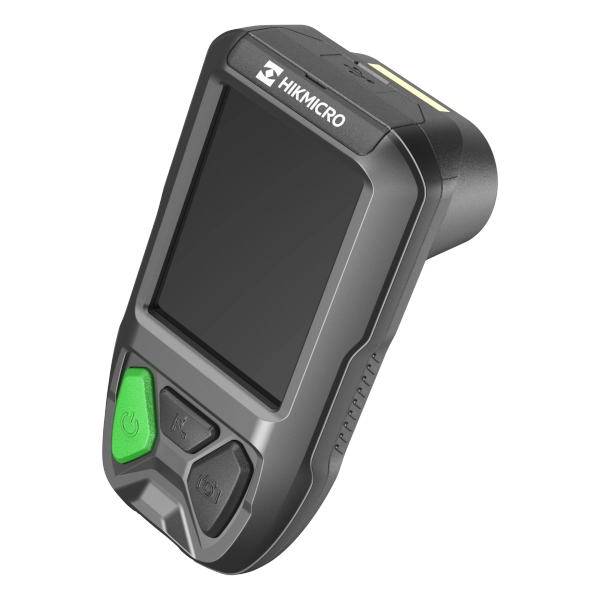

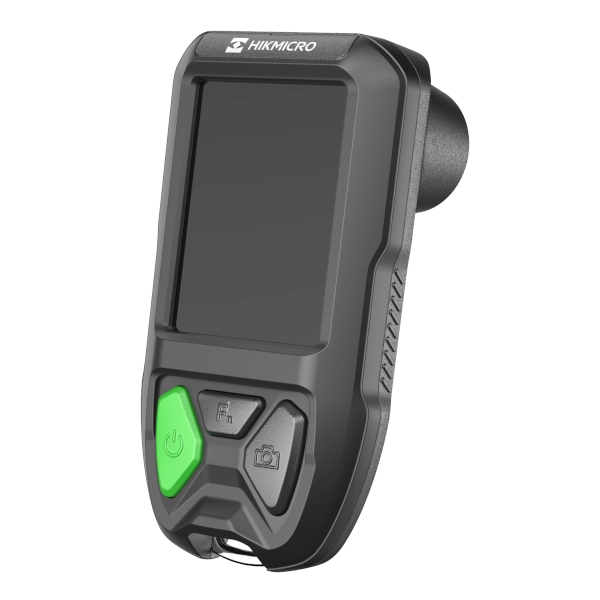

Big Clarity in a Pocket-Sized Form
Most portable imagers sacrifice display quality. FP Series delivers large-screen readability with true pocket-sized convenience—ideal for field teams needing fast deployment.
Scene-Adaptive Clarity in Every Frame
Automatic AGC
Most portable imagers sacrifice display quality. FP Series delivers large-screen readability with true pocket-sized convenience—ideal for field teams needing fast deployment.
Enhance outline of certain targets with ODE
False-color thermal overlays are based on temperature mapping, which flattens visual details in hot areas. ODE enhances clarity without altering the thermal data. HIKMICRO FP21 with this function enabled, target outline will be clearer, but noise of the image will be increased accordingly.

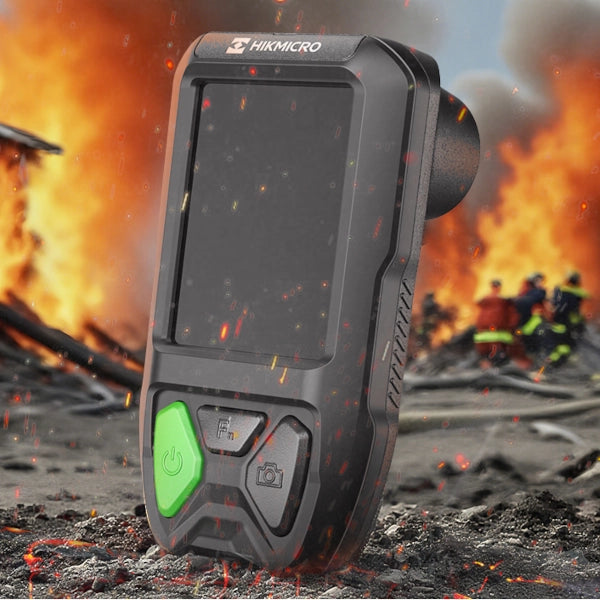

Rugged Reliability for Harsh Environments
FP Series is IP67-rated—fully dust-tight and water-resistant up to 1 meter submersion for 30 minutes. It is also certified to operate under extreme heat, while most devices shut down or degrade in extreme heat, the FP Series keeps running.
8 Color Palettes
