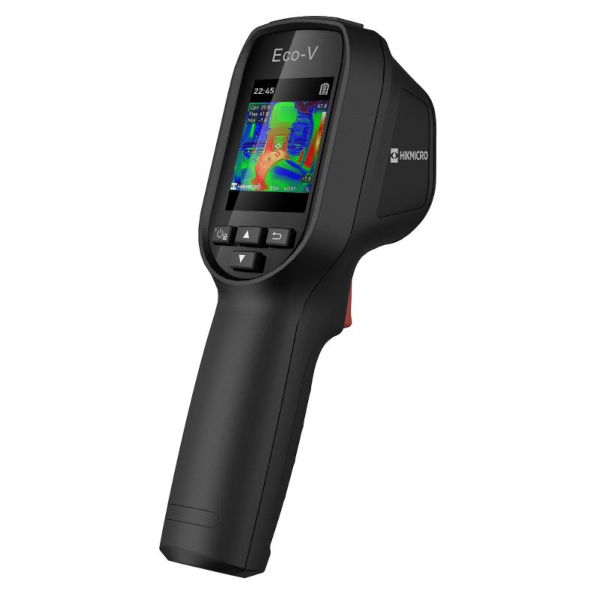

HIKMICRO Eco-V Handheld Thermography Camera
2.150,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Thermal resolution: 96 × 96 (9,216 pixels)
- 112:1 Distance to spot ratio (D:S)
- SuperIR: 240 × 240 (57,600 pixels)
- NETD: < 50 mK (@ 25°C, F# = 1.0)
- Measurement presets: center spot, hot spot, cold spot, off
- 25 Hz image frequency
- Laser pointer
- Built-in 4 GB flash memory: 30,000 pictures
- Up to 8 hours continuous running
- Thermal/Visual/Fusion
%0A%20%09112:1%20Distance%20to%20spot%20ratio%20(D:S)%0A%20%09SuperIR:%20240%20%C3%97%20240%20(57,600%20pixels)%0A%20%09NETD:%20%26lt;%2050%20mK%20(@%2025%C2%B0C,%20F%23%20=%201.0)%0A%20%09Measurement%20presets:%20center%20spot,%20hot...
){kind=link}
Discover the possibilities
More information
Description
HIKMICRO Eco-V Handheld Thermography Camera
The HIKMICRO Eco-V is a handheld thermal camera that is based on thermal technology, specially designed for the needs of temperaturemeasuring applications. People can quickly troubleshoot faults on-site.
IR Performance, Surprisingly Affordable, and Absolutely Brilliant
01. Enhanced Thermal Clarity with SuperIR
Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.
02. Dual-camera Thermal Imager
Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, and Fusion). "Fusion" blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity.
03. 50° Wide Angle Lens
Scan large areas quickly with the 50° wide angle lens to find issues like air infiltration, water leaks, and insulation issues.
04. Rugged and Durable
Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty.
Reliable Products that do the Tough Jobs
01. Full-screen Precise and Wide Temperature Measurement
Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
02. 8 Hrs. Continuous Runtime
Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (5/10/20 minutes) allow the camera up to 8 hours of continuous operation.
Thoughtful Functions for Your Efficient Workflow
01. Locate with Laser Pointer
Helps show the position of the center point on actual object.
02. 1-Click IR and Visual Image Storage
Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.
03. 7 Color Palettes
Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm 7 color palettes so you can choose the ideal color scale for your job
What's in the Box?
For more information: HIKMICRO
