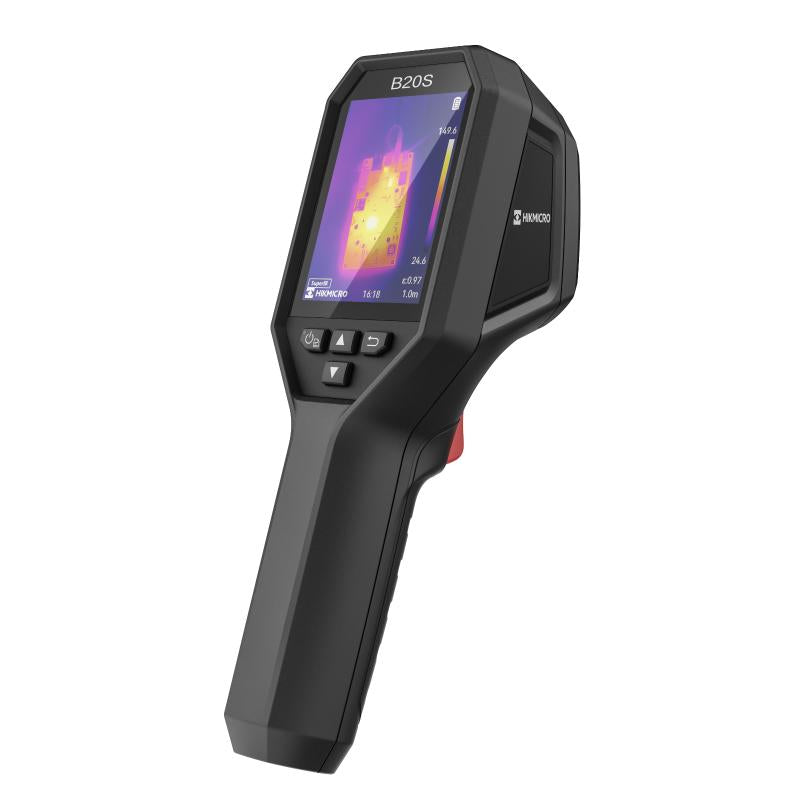

HIKMICRO B20S Handheld Thermography Camera
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- IR Resolution: 256 × 192 (49,152 pixels)
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Image Frequency: 25 Hz
- Detector Pitch: 12 µm
- Spectral Range: 7.5 to 14 µm
- Focal Length: 3.6 mm
- F-number: F1.0
- Field of View (FOV): 37.2° × 50.0°
- Spatial Resolution (IFOV): 3.3 mrad
- Focus Mode: Focus Free
- Min. Focus Distance: 0.3 m (0.98 ft)
%0ANETD:%20%26lt;%2040%20mK%20(@%2025%20%C2%B0C,%20F%23=1.0)%0AImage%20Frequency:%2025%20Hz%0ADetector%20Pitch:%2012%20%C2%B5m%0A%0ASpectral%20Range:%207.5%20to%2014%20%C2%B5m%0AFocal%20Length:%203.6%20mm%0AF-number:%20F1.0%0AField%20of%20...
){kind=link}
Discover the possibilities
More information
Description
High Image Quality
Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2" LCD screen with a crisp 640x480 resolution, capturing every detail with its 256x192 thermal resolution.
Enhanced Thermal Clarity with SuperIR
HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
* Real-time SuperIR is only available in thermal mode.
Experience the New and Improved Display
The B20S features a high-resolution display of 640x480. With the SuperIR , you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.
4 Images Modes
Thermal, Fusion, PIP, and Optical modes to suit your preferred view.
Full-screen Precise and Wide Temperature Measurement
The thermal imaging camera B20 supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.
Optional innovative macro mode
Using a clip-on macro lens, the B20S cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm
Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency
Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B20S provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
HIKMICRO Analyzer Software
Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Documents
Datasheet:
Options
Video
High Image Quality
Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2" LCD screen with a crisp 640x480 resolution, capturing every detail with its 256x192 thermal resolution.
Enhanced Thermal Clarity with SuperIR
HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
* Real-time SuperIR is only available in thermal mode.
Experience the New and Improved Display
The B20S features a high-resolution display of 640x480. With the SuperIR , you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.
4 Images Modes
Thermal, Fusion, PIP, and Optical modes to suit your preferred view.
Full-screen Precise and Wide Temperature Measurement
The thermal imaging camera B20 supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.
Optional innovative macro mode
Using a clip-on macro lens, the B20S cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm
Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency
Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B20S provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
HIKMICRO Analyzer Software
Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
