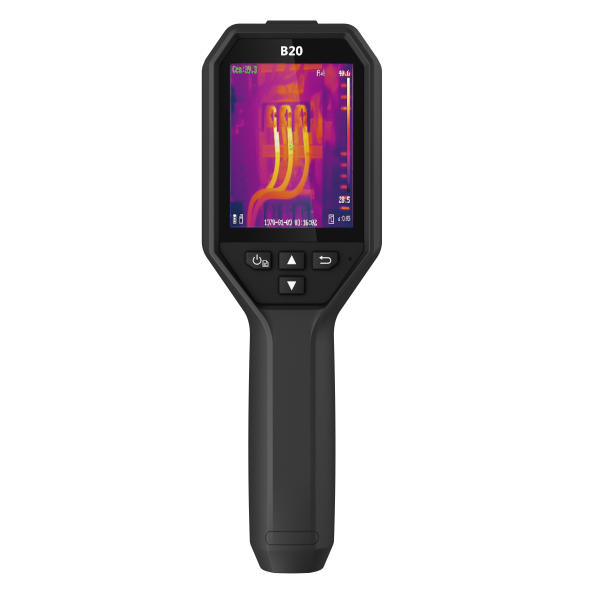

HIKMICRO B20 Handheld Thermography Camera
3.605,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- IR Resolution: 256 × 192 (49,152 pixels)
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Image Frequency: 25 Hz
- Detector Pitch: 12 µm
- Spectral Range: 7.5 to 14 µm
- Focal Length: 3.6 mm
- F-number: F1.0
- Field of View (FOV): 37.2° × 50.0°
- Spatial Resolution (IFOV): 3.3 mrad
- Focus Mode: Focus Free
- Min. Focus Distance: 0.3 m (0.98 ft)
%0ANETD:%20%26lt;%2040%20mK%20(@%2025%20%C2%B0C,%20F%23=1.0)%0AImage%20Frequency:%2025%20Hz%0ADetector%20Pitch:%2012%20%C2%B5m%0A%0ASpectral%20Range:%207.5%20to%2014%20%C2%B5m%0AFocal%20Length:%203.6%20mm%0AF-number:%20F1.0%0AField%20of%20...
){kind=link}
Discover the possibilities
More information
Description
HIKMicro B20 Handheld Thermography Camera
The HIKMICRO B20 is designed for temperature measurement to find invisible faults. It’s equipped with a 256 × 192 resolution HIKMICRO thermal detector and 2 MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F) which meets most situations. It helps the user to quickly find the fault according to accurate temperature measurement of subjekts. It provides the user with accurate measurement and increase the safety. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.Key Features
- Thermal resolution: 256 × 192 (49,152 pixels)
- NETD : < 40 mK (@ 25°C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F)
- Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2’’ LCD screen display
- Up to 6 hours continuous running
High Image Quality
A highly sensitive VOx detector (NETD < 40 mK) provides a distinct thermal vision of the subjekt.Multiple Image Modes
Thermal, Fusion, PIP and Optical modes to suit your preferred mode.Quick Temperature Measurement
Full screen measurement in virtue of different presets, checks everywhere at the very first sight. Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off.Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.Innovative Macro Mode
Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.High Temperature Alarm
Built-in speaker and flash light give the user audio and visual alerts to high temperatures.Fast Image Frequency
25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.3.2'' Color LCD
3.2'' LCD provides a 75% larger screen than other products in the category.HIKMICRO Analyzer Software
Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of saved pictures, and generate reports.For more information: HIKMICRO
Documents
HIKMicro B20 Handheld Thermography Camera
HIKMicro B20 DatasheetOptions
Video
HIKMicro B20 Handheld Thermography Camera
The HIKMICRO B20 is designed for temperature measurement to find invisible faults. It’s equipped with a 256 × 192 resolution HIKMICRO thermal detector and 2 MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F) which meets most situations. It helps the user to quickly find the fault according to accurate temperature measurement of subjekts. It provides the user with accurate measurement and increase the safety. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.Key Features
- Thermal resolution: 256 × 192 (49,152 pixels)
- NETD : < 40 mK (@ 25°C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F)
- Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2’’ LCD screen display
- Up to 6 hours continuous running
High Image Quality
A highly sensitive VOx detector (NETD < 40 mK) provides a distinct thermal vision of the subjekt.Multiple Image Modes
Thermal, Fusion, PIP and Optical modes to suit your preferred mode.Quick Temperature Measurement
Full screen measurement in virtue of different presets, checks everywhere at the very first sight. Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off.Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.Innovative Macro Mode
Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.High Temperature Alarm
Built-in speaker and flash light give the user audio and visual alerts to high temperatures.Fast Image Frequency
25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.3.2'' Color LCD
3.2'' LCD provides a 75% larger screen than other products in the category.HIKMICRO Analyzer Software
Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of saved pictures, and generate reports.For more information: HIKMICRO
