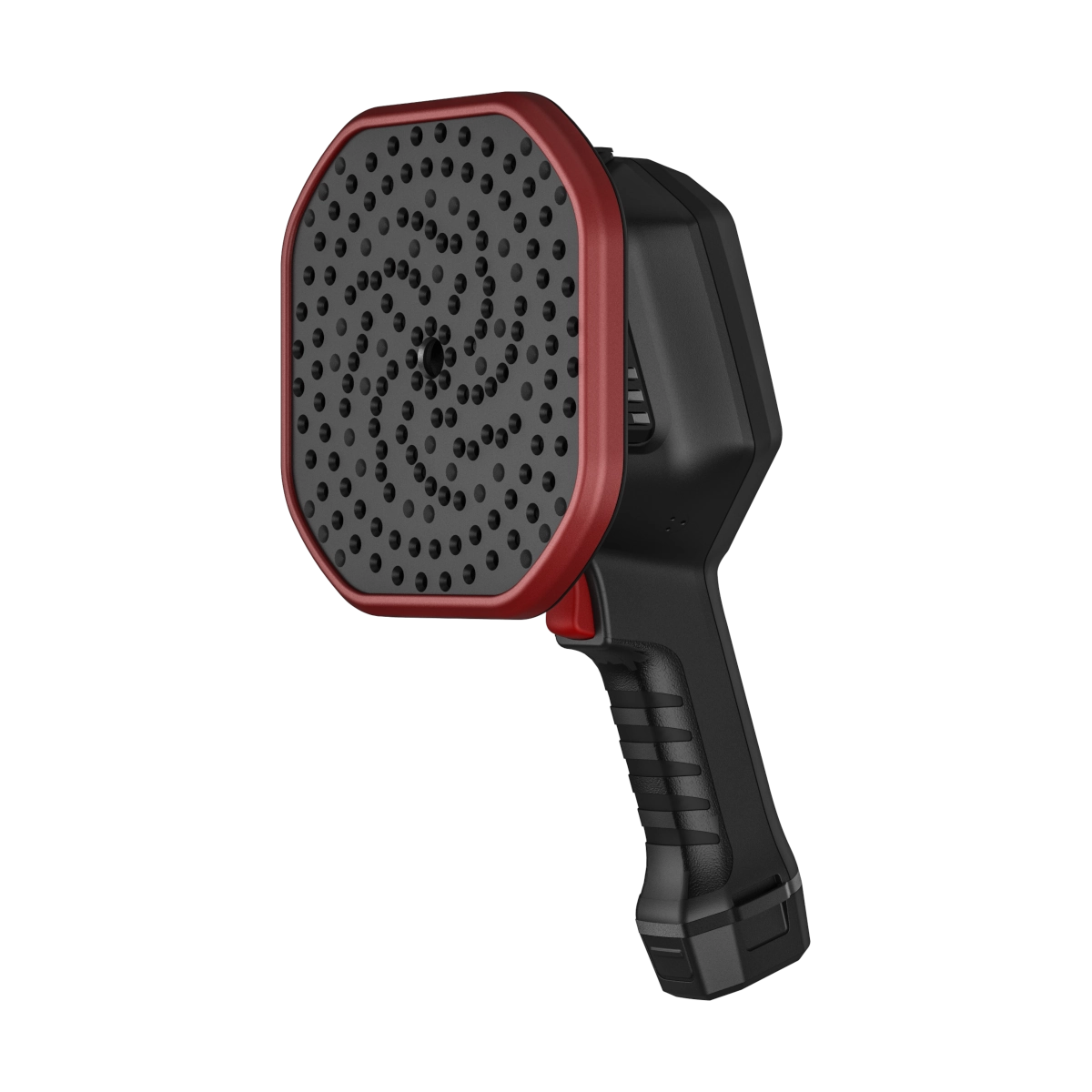

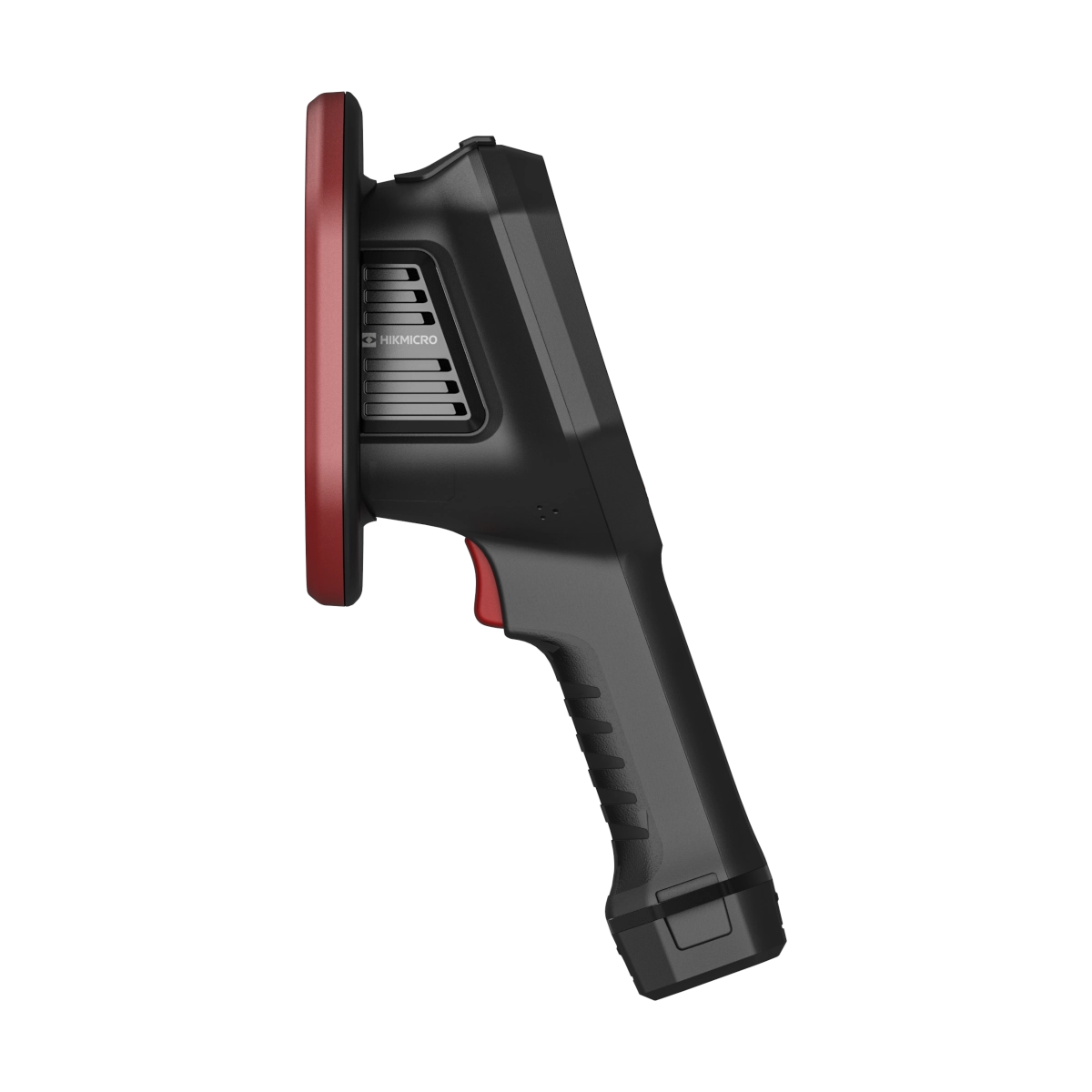

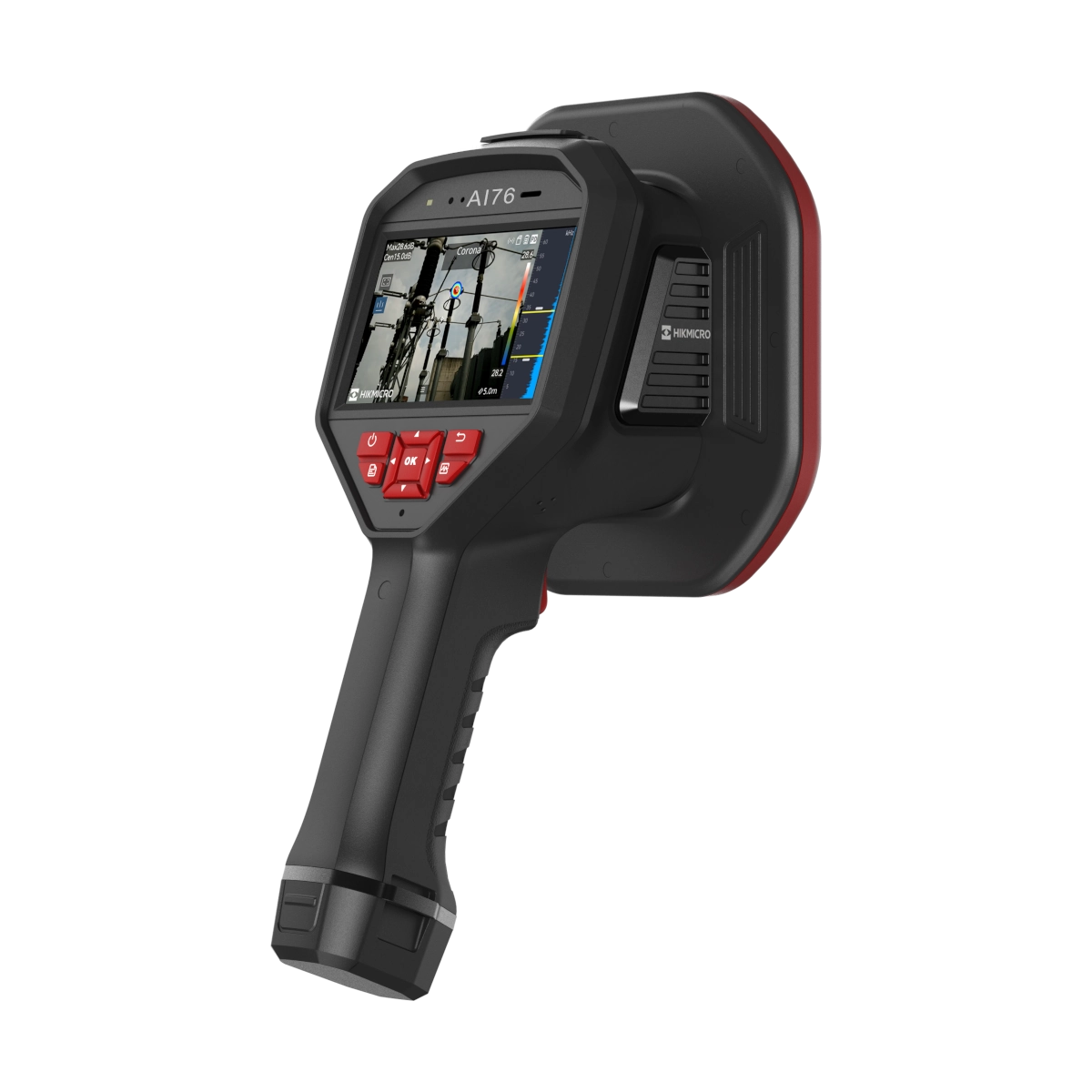

HIKMICRO AI76 Handheld Acoustic Camera
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Number of Microphones: 136
- Bandwidth: 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz
- Distance: 0.3m~150m
- Camera FOV: 50.2°× 35.4°
- Acoustic Image Resolution: 800 × 480
- Acoustic Image Palette: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red
- Leak Rate: >0.0047 l/min @ 6 bar from 0.5 m (1.64 ft), >0.0073 l/min @ 5 bar from 1 m (3.28 ft)
- Sound Intensity Display: Peak Point
- Acoustic Image Frame Rate: 25 fps
- Dynamic Range: Low Limit: <-15dB, High Limit: >120dB
- Discharge Detection: Automatic detection 50 / 60 Hz
- Discharge Type: Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge
Discover the possibilities
More information
Description
The HIKMICRO AI76 acoustic imaging camera is a professional product for gas leak detection and partial discharge detection. With 136 Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz, AI76 provides an easy and effective way to locate pressurized air leaks in industrial environments or detect partial discharge in electric systems. By using a large 4.3" LCD touch screen, the results presented on top of a digital picture allow you to quickly find the source of the problems. Analyzer Acoustic software can analyze images captured by acoustic imaging cameras and export reports. By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs for equipment failures and downtime.
Features 136 MEMS microphones for superior sensitivity in PD and gas leak detection. Engineered for reliability in critical utility and industrial maintenance.
AI76 with Mini3R
Combines AI76 136-MEMS-mic array for precise Partial Discharge (PD) detection with the optional Mini3R thermal module. Ideal for comprehensive electrical inspections - PD and thermal analysis in one device
Features
- 136 Low-noise MEMS Microphones, real-time sound source localization
- Real-time estimated leak rate, leak cost, and leak level for gas leak detection
- Partial discharge detection can identify corona, floating, surface, and particle discharges
- Analyzer acoustic software for analyzing images and export reports
- 800 × 480 Resolution, 4.3’LCD Touch Screen
- Supports 8 acoustic palettes
Low-noise MEMS Microphones and Adjustable Bandwidth
With Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz. The HIKMICRO AI series provides an easy and effective way to instantly locate gas leak detection and partial discharge from high-voltage systems.
Real-time Display of Leakage Data
The HIKMICRO AI series offers real-time estimated leak rate, leak cost for gas leak detection. AI series can filter noise to “visualize” sound with a large 4.3" LCD touch screen even in noisy environments.
Smart Partial Discharge Detection
When placed in Partial Discharge mode, the AI series identifies corona, floating, surface, or particle discharge on high voltage systems that can lead to equipment failure. This is instantly displayed onscreen and can be saved for documentation and reporting. (*AI56, AI76 only)
Analyzer Acoustic
Analyzer Acoustic for PC is included at no additional cost or recurring fees. Simply import images from the camera to quantify issues, analyze field images, highlight concerns, and create reports for repairs, field audits, or energy rebate programs.
Interchangeable Battery System
Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 10 hours with AI56, and 6 hours with AI76 of operation. You can stay powered up for even the longest inspections.
Voice & Text Annotations
In addition to supporting voice, text annotations to the image helps to improve inspection efficiency and productivity.
