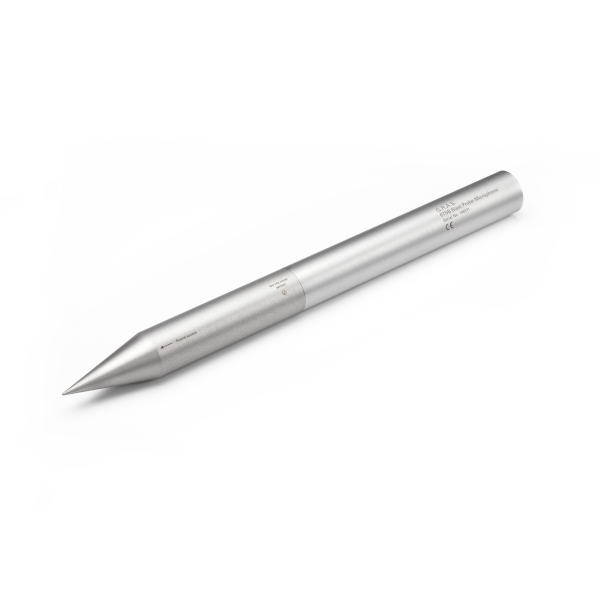

GRAS 67SB Blast Probe Microphone according to ANSI S12.42
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
The 67SB Blast Probe is designed as a reference microphone for impulse measurements according to the ANSI S12.42 standard. The 67SB can measure impulse signals with an A-duration of 0.5 ms ≤ impulse ≤ 2.0 ms, and it has a working range of 10 Hz – 20 kHz
Discover the possibilities
More information
Description
GRAS 67SB Blast Probe Microphone according to ANSI S12.42
The 67SB Blast Probe is designed as a reference microphone for impulse measurements according to the ANSI S12.42 standard. The 67SB can measure impulse signals with an A-duration of 0.5 ms ≤ impulse ≤ 2.0 ms, and it has a working range of 10 Hz – 20 kHz. The 1/8” reference microphone inside the 67SB is ideally suited for capturing impulsive signals with a very fine time resolution. This microphone has an upper limit of 174 dB in the dynamic range.The 67SB is equipped with a 1/8" reference microphone which is designed to capture impulsive noise with a very short duration. The 67SB is provided with a 1/4" threaded hole for monting the 67SB directly on a tripod e.g. AL0006.
The design and concept of the 67SB, and the microphone and preamplifier, comply with the following standards:
• ANSI S12.42 – “Methods for the Measurement of Insertion Loss of Hearing Protection Devices in Continuous or Impulsive Noise Using Microphone-in-Real Ear or Acoustic Test Fixture Procedures”
• IEC Standard 61094-1 – “Specifications for Laboratory Standard Microphones”
The 67SB has a length of 410 mm.
Documents
GRAS 67SB Blast Probe Microphone according to ANSI S12.42
GRAS 67SB Blast Probe Microphone according to ANSI S12.42 datasheetOptions
Video
GRAS 67SB Blast Probe Microphone according to ANSI S12.42
The 67SB Blast Probe is designed as a reference microphone for impulse measurements according to the ANSI S12.42 standard. The 67SB can measure impulse signals with an A-duration of 0.5 ms ≤ impulse ≤ 2.0 ms, and it has a working range of 10 Hz – 20 kHz. The 1/8” reference microphone inside the 67SB is ideally suited for capturing impulsive signals with a very fine time resolution. This microphone has an upper limit of 174 dB in the dynamic range.The 67SB is equipped with a 1/8" reference microphone which is designed to capture impulsive noise with a very short duration. The 67SB is provided with a 1/4" threaded hole for monting the 67SB directly on a tripod e.g. AL0006.
The design and concept of the 67SB, and the microphone and preamplifier, comply with the following standards:
• ANSI S12.42 – “Methods for the Measurement of Insertion Loss of Hearing Protection Devices in Continuous or Impulsive Noise Using Microphone-in-Real Ear or Acoustic Test Fixture Procedures”
• IEC Standard 61094-1 – “Specifications for Laboratory Standard Microphones”
The 67SB has a length of 410 mm.
