GRAS 48LX-1 UTP Microphone, Medium Pressure
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
48LX-1 is for low to medium level surface pressure measurements on planar and curved surfaces. Because of its low profile, it is ideal for measurements in boundary layers and turbulence, e.g, in
- Wind-induced noise measurement on vehicles
- Wind-tunnel testing
- Measurements in confined spaces
Discover the possibilities
More information
Description
GRAS 48LX-1 UTP Microphone, Medium Pressure
Introduction
48LX-1 is an Ultra-Thin Precision (UTP) surface microphone set for aeroacoustic testing.It is a 1/4" CCP medium-pressure condenser microphone set with a height of 1 mm.
The microphone set includes a preamplifier with TEDS.
The integrated cable connector is Microdot female. The total cable length is 3 meters.
Typical applications and use
48LX-1 is for low to medium level surface pressure measurements on planar and curved surfaces. Because of its low profile, it is ideal for measurements in boundary layers and turbulence, e.g, in- Wind-induced noise measurement on vehicles
- Wind-tunnel testing
- Measurements in confined spaces
Mounting

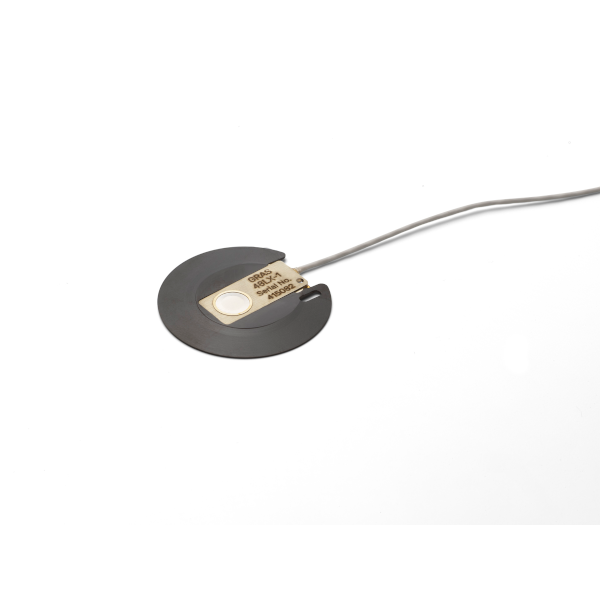

48LX-1 can be mounted using the RA4810 Hard Fairing for 48LA/48LX-1, with click mount, and the included double-sided adhesive mounting pad. The fairing has a locking mechanism that makes it possible to install and remove the microphone without removing the fairing. The fairing has an angle of 7.5 degrees.Field Verification
For sensitivity verification in the field using a sound calibrator, a special adapter is available, the RA4800 Adapter for Sensitivity Verification of Flush/Surface Microphones. RA4800 is furnished with a round, soft pad similar to those used on over-the-ear headphones. This pad ensures a sealed cavity for the calibration signal. Read more here.With this adapter, quick and convenient in-situ sensitivity verification is possible, and therefore it is possible to check the integrity of the measurement setup immediately before measurements.
Calibration
Accessories for sensitivity and frequency calibration are available.For sensitivity calibration, the RA4801 Adapter for Sensitivity Calibration of 48LA/48LX-1 is available. This adapter is suitable for use with a pistonphone or sound calibrator fitted with a 1/2" coupler.
For frequency calibration, the RA4802 Actuator for Frequency Calibration of 48LA/48LX is available. RA4801 and RA4802 are also available as a set, the RA4805.
48LX-1 is checked and calibrated before leaving the factory. An individual calibration chart is supplied with each microphone and includes an individual pressure frequency response.
Quality and warranty
GRAS microphone sets are made of components from our proven standard portfolio and are all manufactured of high-quality material and branded parts, which were chosen and processed to ensure life-long stability and robustness.All parts are manufactured and assembled at the factory in Denmark by skilled and dedicated operators in a verified clean-room environment.
The warranty period for the 48LX-1 microphones is 2 years.
The warranty covers defective materials, and workmanship for the sensor element, printed circuit board, and housing.
Cable and connectors are covered by a 6 months warranty period.
Service
Should you by mistake damage or destroy your microphone, we offer an exchange service at a reasonable cost and short turn-around time.GRAS Sound & Vibration continually strives to improve the quality of our products for our customers. Therefore, the specifications and accessories are subject to change.
Documents
GRAS 48LX-1 UTP Microphone, Medium Pressure
GRAS 48LX-1 UTP Microphone, Medium Pressure datasheetOptions
