GRAS 43AC-S5 High-Frequency Ear Simulator Kit CCP
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

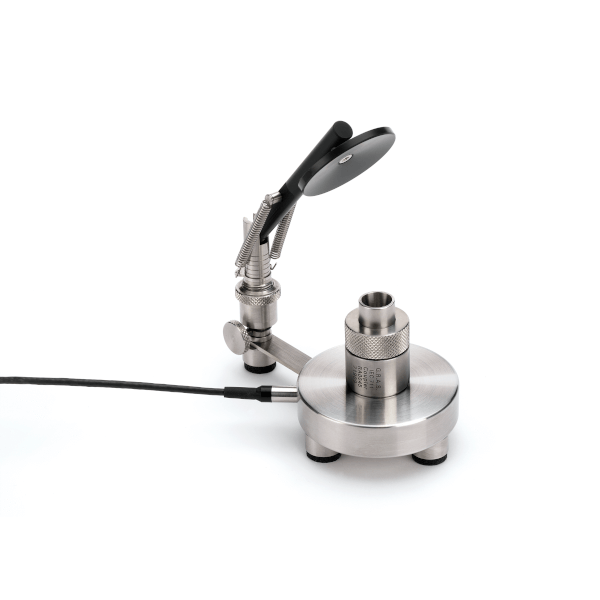

The GRAS 43AC-S5 Ear Simulator Kit is a complete test jig for acoustically testing earphones coupled to the ear via inserts such as tubes and ear moulds and complies with the following international requirements:
- IEC 60318-4: Occluded-ear simulator for the measurement of earphones coupled to the ear by ear inserts.
Discover the possibilities
More information
Description
GRAS 43AC-S5 High-Frequency Ear Simulator Kit CCP
The GRAS 43AC-S5 Ear Simulator Kit is a complete test jig for acoustically testing earphones coupled to the ear via inserts such as tubes and ear moulds and complies with the following international requirements:- IEC 60318-4: Occluded-ear simulator for the measurement of earphones coupled to the ear by ear inserts.
43AC-S5 uses the RA0402 High Resolution Ear Simulator which extends the useful frequency range to 20 kHz. Read more abot the RA0402 here.
The 43AC-S5 comprises:
- GRAS RA0402 Prepolarized High Resolution Ear Simulator
- GRAS 40AO 1/2" Pressure Microphone (included in RA0402)
- GRAS 26CB 1/4" Preamplifier
- GRAS RA0001 Right-angled Adapter
- GRAS RA0052 Test Jig
The Test Jig has an adjustable spring-loaded arm to exert a variable force on the test object.
An externally polarized version is available, GRAS 43AC-S4.
