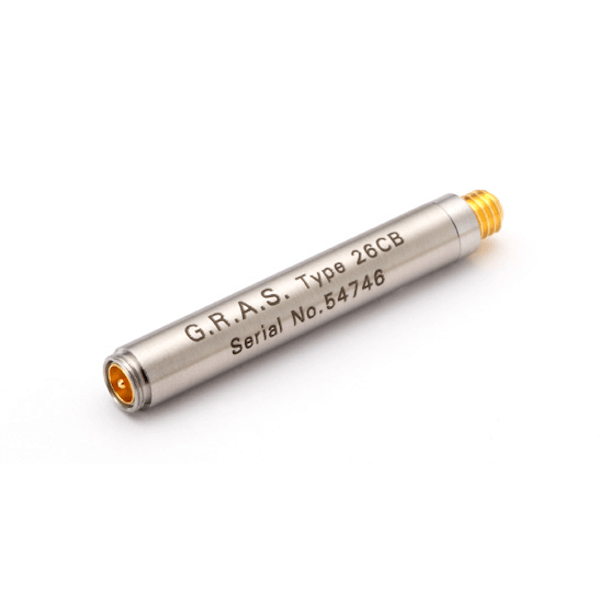

GRAS 26CB-HT 1/4" CCP Standard Preamplifier with Microdot Connector
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Its small ceramic thick-film substrate has a very high input impedance and is shielded by a guardring to minimize the influence of stray capacitance and microphonic interference.The GRAS 26CB is delivered with a built-in TEDS chip and can be programmed as a single unit with a microphone fitted.
Discover the possibilities
More information
Description
GRAS 26CB-HT 1/4" CCP Standard Preamplifier with Microdot Connector
Typical applications and use
- CCP inputs
- Prepolarized microphones
- 1/2"-inch precision microphones
- High levels and high frequencies
Design
Its small ceramic thick-film substrate has a very high input impedance and is shielded by a guardring to minimize the influence of stray capacitance and microphonic interference.The GRAS 26CB-HT is delivered with a built-in TEDS chip and can be programmed as a single unit with a microphone fitted.The diameter is 6.35 mm (1/4"), length 44 mm and weight 8g (0.3oz)
It can be used with all prepolarized microphones, such as GRAS 40BE and 40BD 1/4" microphone and GRAS 40AE, 40AD, and 40AQ 1/2" microphones using the included GRAS GR0010 Adapter for 1/4" preamplifier and 1/2" microphone. It has an integrated Microdot output connector. The casing is made of stainless steel for maximum strength and durability.
