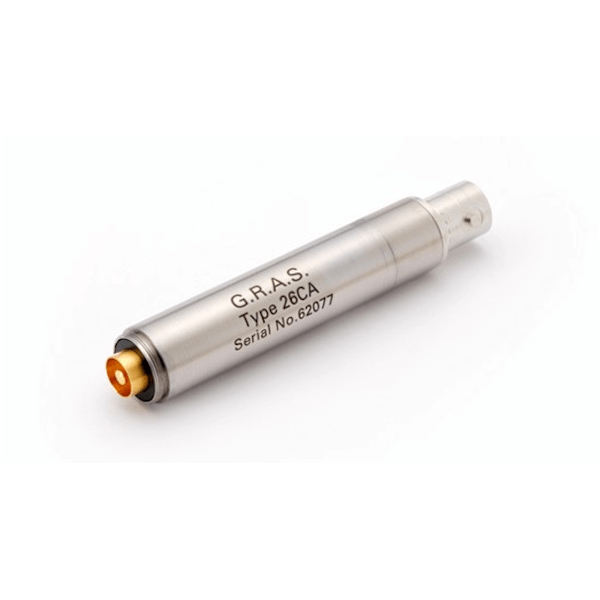

GRAS 26CA-HT 1/2'' CCP High Temperature Preamplifier with BNC Connector
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
The GRAS 1/2" Preamplifier 26CA-HT is similar to the GRAS 26CA Standard Preamplifier, but optimzed for use in high-temperature applications up to 120 °C (248 °F).
.
){kind=link}
Discover the possibilities
More information
Description
GRAS 26CA-HT 1/2'' CCP High Temperature Preamplifier with BNC Connector
Typical applications and use
Prepolarized microphonesOperating temperature up to 120 °C (248 °F)
Low noise floor and wide frequency range
Design
The GRAS 1/2" Preamplifier 26CA-HT is similar to the GRAS 26CA Standard Preamplifier, but optimzed for use in high-temperature applications up to 120 °C (248 °F).It uses a CCP (Constant Current Power) supply, e.g. GRAS 12AL 1-Channel CCP Power Module with A-weighting filter. It has a very low inherent noise level, a large dynamic range and a frequency response from below 2 Hz to above 200 kHz. Its small ceramic thick-film substrate has a very high input impedance, and is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference.
It has TEDS* according to IEEE P1451.4 for easy self identification and reading of calibration data.
It has an integrated BNC output connector and can be used with all GRAS prepolarized microphones. The casing is made of stainless steel for maximum strength and durability.
* Transducer Electronic Data Sheet
