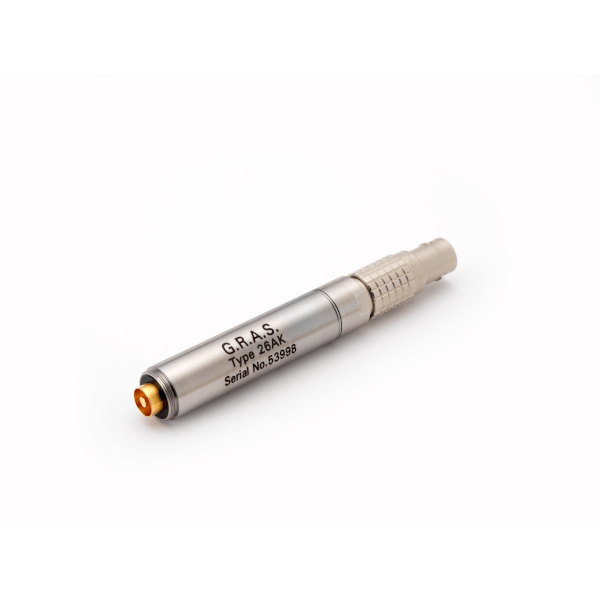

GRAS 26AK 1/2'' Standard Preamplifier with Integrated Connector
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
GRAS 26AK is a preamplifier designed for general purpose in the laboratory and field and accommodates directly all IEC 61094 standardized ½” externally polarized measurement microphones.
Discover the possibilities
More information
Description
GRAS 26AK 1/2'' Standard Preamplifier with Integrated Connector
Introduction
GRAS 26AK is a preamplifier designed for general purpose in the laboratory and field and accommodates directly all IEC 61094 standardized ½” externally polarized measurement microphones.It is rugged and reliable and can handle microphone signals up to 50 Vpeak within 0.5 Hz to 200 kHz. The printed circuit board is made by use of thick-film substrate technology and optimized with respect to maximum suppression of microphonics and moisture rejection.
The high-quality, standard 7-pin LEMO male connector is integrated into the preamplifier and ensures that only one type of connector and cable is required for both connection and extension.
26AK is factory calibrated individually and delivered with a calibration chart stating its A-weighted and linear self-noise.
Compatibility
26AK is compatible with ½-inch microphones as defined in international standard IEC1094 Measurement Microphones, Part 4: Specifications for working standard microphones. The mounting thread (11.7 mm - 60 UNS-2) is compatible with other available makes of similar microphone preamplifiers.GRAS 26AK is integrated with a 7-pin LEMO series 1B plug.
Connector
7-pin LEMO 1B male (ext. view)
