GRAS 26AJ 1/2'' SysCheck Preamplifier with integrated connector
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
All GRAS microphone preamplifiers are based on a small ceramic thick-film substrate with a very high input impedance. The ceramic substrate is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference.
Discover the possibilities
More information
Description

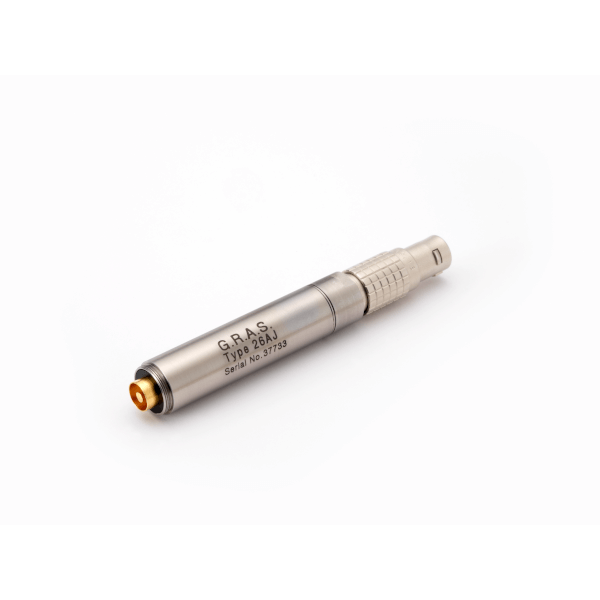

GRAS 26AJ 1/2'' SysCheck Preamplifier with integrated connector
Typical applications and use
Precision measurementsLow-pressure measurements
General-purpose preamplifiers
Design
All GRAS microphone preamplifiers are based on a small ceramic thick-film substrate with a very high input impedance. The ceramic substrate is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference. The casing is made of stainless steel for maximum strength and durability. The small dimensions of the 26AJ ensures reliable operation under humid conditions owing to the heat generated by internal power dissipation. A 1/4" alternative is available, GRAS 26AL. GRAS 26AJ has SysCheck for easy remote verification of the measurement chain. It allows you to send a test signal to an RC network in the preamplifier. This signal is applied to pin 1 of the 7-pin LEMO cable/connector. SysCheck does not result in a signal proportional to the microphone’s sensitivity, but it gives you a way to determine whether your system is stable. SysCheck cannot replace a proper acoustic calibration of the microphone.Compatibility
The preamplifier is compatible with 1/2" microphones as defined in international standard IEC1094 Measurement Microphones, Part 4: Specifications for working standard microphones. The mounting thread (11.7 mm - 60 UNS-2) is compatiblewith other available makes of similar microphone preamplifiers.Connector
26AJ has an integrated 7-pin LEMO series 1B connector.
7-pin LEMO 1B male (ext. view)
Documents
GRAS 26AJ 1/2'' SysCheck Preamplifier with integrated connector
GRAS 26AJ 1/2'' SysCheck Preamplifier with integrated connector datasheetOptions
Video
GRAS 26AJ 1/2'' SysCheck Preamplifier with integrated connector
Typical applications and use
Precision measurementsLow-pressure measurements
General-purpose preamplifiers
Design
All GRAS microphone preamplifiers are based on a small ceramic thick-film substrate with a very high input impedance. The ceramic substrate is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference. The casing is made of stainless steel for maximum strength and durability. The small dimensions of the 26AJ ensures reliable operation under humid conditions owing to the heat generated by internal power dissipation. A 1/4" alternative is available, GRAS 26AL. GRAS 26AJ has SysCheck for easy remote verification of the measurement chain. It allows you to send a test signal to an RC network in the preamplifier. This signal is applied to pin 1 of the 7-pin LEMO cable/connector. SysCheck does not result in a signal proportional to the microphone’s sensitivity, but it gives you a way to determine whether your system is stable. SysCheck cannot replace a proper acoustic calibration of the microphone.Compatibility
The preamplifier is compatible with 1/2" microphones as defined in international standard IEC1094 Measurement Microphones, Part 4: Specifications for working standard microphones. The mounting thread (11.7 mm - 60 UNS-2) is compatiblewith other available makes of similar microphone preamplifiers.Connector
26AJ has an integrated 7-pin LEMO series 1B connector.7-pin LEMO 1B male (ext. view)
