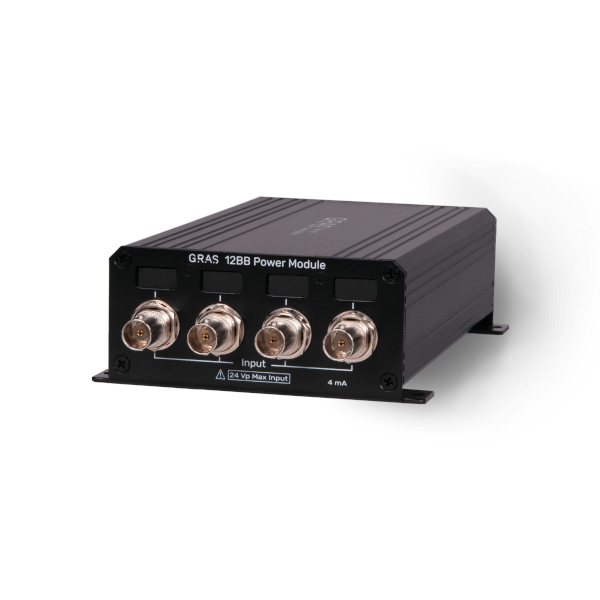

GRAS 12BB 4-Channel CCP Power Module with TEDS Support
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
The GRAS 12BB is a four-channel USB-powered CCP power module with TEDS support.
It provides power to four microphone sets without signal degradation, gain modification, or attenuation.
Discover the possibilities
More information
Description
GRAS 12BB 4-Channel CCP Power Module with TEDS Support
The GRAS 12BB is a four-channel USB-powered CCP power module with TEDS support.
It provides power to four microphone sets without signal degradation, gain modification, or attenuation.
It is intended as a simple and cost-effective interface between TEDS-enabled measurement microphones and any Audio Precision APx series analyzer which will automatically extract TEDS data for seamless integration.
However, it can also be used with other brands. In this case, a utility program provides access to TEDS data on a PC. It can be downloaded here.
Power for the 12BB is provided through a USB cable using a USB 2.0 or USB 3.0 port and a USB-C port on the power module.
A single-channel version is available, the 12BA.
Specifications
Type
Constant Current Power (CCP)
USB Interface
| Interface | Type A Peripheral Interface | |
| Version | USB C/USB 2.0 | |
| Power | USB +5 V, 500 mA max |
Microphone Channel
| Channel(s) | 4 x BNC | |
| Max input voltage (limited by 24 V microphone power) | Vpeak | 24 |
| Power | mA | 4 |
| Coupling | AC, 10 Hz high-pass filter |
General
| Bandwidth | Hz | 10 to 20 (±0.06 dB) 20 to 200 k (±0.03 dB) |
| Noise, input shorted, 10 Hz to 20 kHz | μV RMS | < 2.0 |
| Temperature range, operation | °C / F | 0 to +45 / 32 to 113 |
| Temperature range, storage | °C / F | -40 to +75 / -40 to 167 |
| Humidity | Up to 40 °C /104 F | 90%, non-condensing |
| EMC | EN 61326-1: 2013 Class B | |
| Safety | UL/EN/IEC 62368-1, Second Edition | |
| Dimensions, width x height x depth | mm inches | 108 x 44.2 x 193.8 4.25 x 1.74 x 7.63 |
| Weight | g/oz | 510/18 |
Documents
GRAS 12BB 4-Channel CCP Power Module with TEDS Support
GRAS 12BB 4-Channel CCP Power Module with TEDS Support datasheetOptions
Included
| GRAS 12BB | CCP Power Module with USB Connection |
| USB Cable |
Optional
| GRAS AA0033 | BNC-BNC cable, 1 meter |
| GRAS AA0034 | BNC-BNC cable, 2 meters |
| GRAS AA0035 | BNC-BNC cable, 3 meters |
