GRAS 12AX 4-Channel CCP Power Module with Gain
Introduction
The GRAS 12AX is a constant current power module for powering 4 CCP preamplifiers/microphone sets.It is optimized for integration into a production environment. The anodized enclosure is sturdy and offers good protection against dirt, dust, and moisture.
Except for the power switch, it has no external user controls. In this way unintended change of the gain settings is avoided.
Design

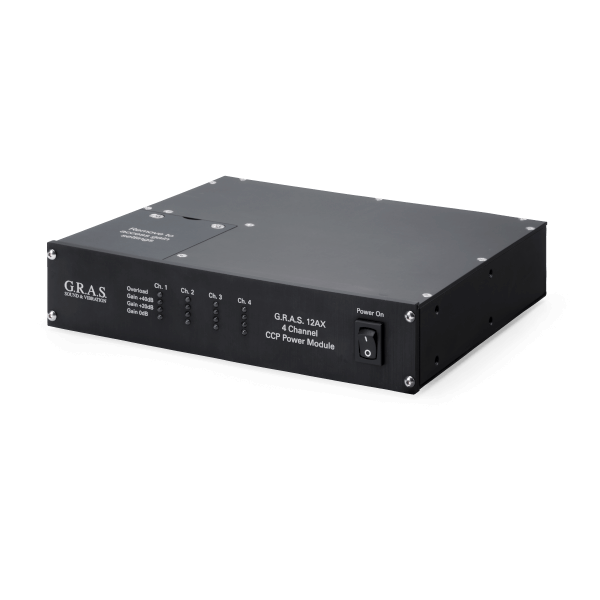

As the 12AX is a 4-channel unit, it has 8 BNC connectors, 4 for the input from the microphones and 4 for the output to the analyzer. All connectors are mounted on the rear panel.It provides 5 mA of constant current at +28 VDC compliance voltage level.
The gain is selectable individually for each channel by means of jumpers. These are accessible by removing a cover at the top plate. The gain can be set to 0, 20 or 40 dB. The chosen gain is indicated by green LEDs on the front panel.
It has error detection at the input and overload detection at the output. The error detection at the input warns against a DC error, typically a short or a broken connection. The overload detection is applied at the output. If the signal exceeds 22 VACp-p, the overload detection will warn about it. DC error and overload are indicated by red LEDs on the front panel, one for each channel.
It has a low noise floor and a wide frequency range: At 0 dB gain, the noise is 1.5 µV and the frequency range from 1 to 300 kHz (+1/-3 dB).
It can handle long cables without significant degradation of the frequency performance.
It operates from 9 - 18 VDC from a mains voltage adapter which is included.
