GRAS 12AB 2-Channel Power Module for GRAS Intensity Probes
Typical applications and use
- Sound-intensity measurements
- GRAS Sound Intensity Probe Type 50AI versions B, C, and D
Design

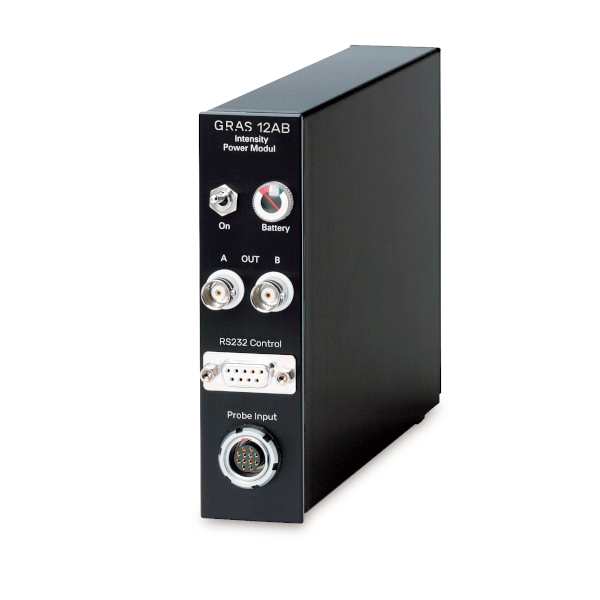

The 12AB is built into a sturdy anodized aluminum cabinet and can be powered either by internal standard batteries or an external DC supply (12 V-18 V), e.g. a mains/line adapter.The polarization voltage for the probe’s microphones can be set to 200 V * — for use with Type 50AI, or 0 V — for prepolarized microphones. The voltage supply for the probe’s preamplifiers can be set to 120 V * — for use with 50AI, or 28 V — for minimum power consumption.
The 12AB will run for up to 10 hours on fresh standard alkaline batteries. A Battery meter indicates the condition of the batteries.
The 12AB has a 9-pin D-sub socket wired up for connecting directly to the RS232 port of a computer; thus enabling software to make use of the remote control facilities of the GRAS 50AI Sound Intensity Probe. The input is a 12-pin LEMO socket on the front panel which is wired up for the GRAS 50AI Sound Intensity Probe versions B, C and D. This input is also connected to the 9 pin D-sub connector in order to:
a) Transmit the state (pressed/not pressed) of the two push buttons on the handle of the 50AI
When pressed: the blue-button transmits DSR, the grey button transmits CTS
b) Signal the responses via the two LEDs also on the handle of the 50AI
When lit: the red LED is signaling RTS, the white LED is signaling DTR
By suitably programming the computer’s software, measurements and data acquisition can be controlled interactively via these pushbuttons and LEDs.
The two output signals of the probe are directly available via two standard BNC connectors (A and B) on the front panel.
The cabinet of the 12AB is 1/12 of a standard 19-inch rack; meaning that up to 12 of these Power Modules can be mounted in a standard 19-inch rack using the AK0040 Rack-mounting System.
