EM TEST NX5 Compact Tester
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

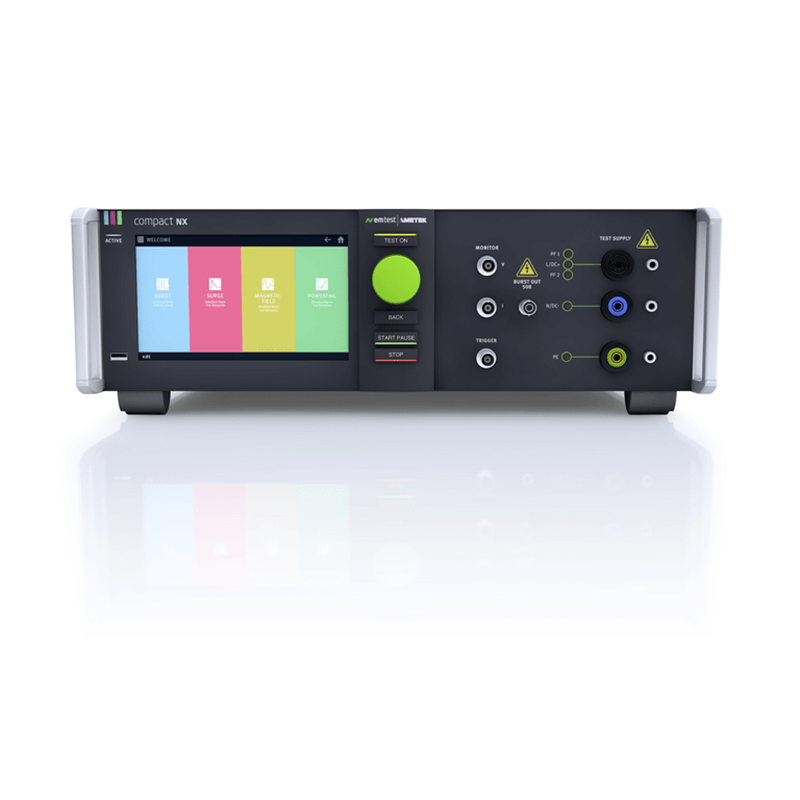

NX5 Multifunctional test generator for transients (EFT/Burst, Surge & Power Fail) up to 5.5 kV

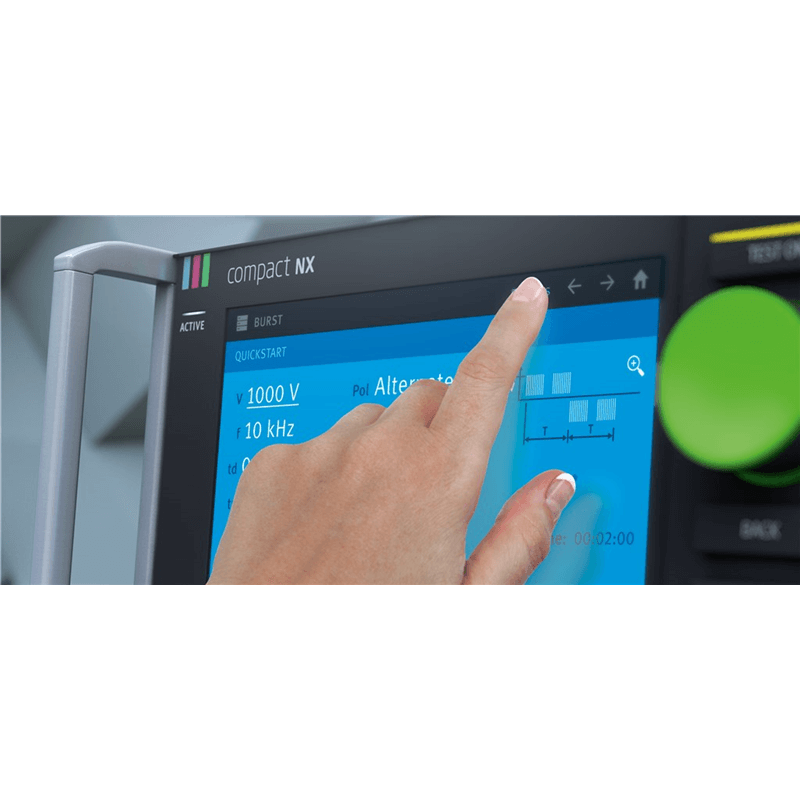

- Smallest compact generator with 7" touch screen
- Burst 5.5 kV, Surge 5.0 kV and Power Fail
- Built-in single phase CDN 400 V/32 A
- Manual front panel operation with setup pictures
- Separate key for START/STOP operation with LED
- Monitor outputs for peak voltage and current
- Opto-Link and Ethernet for remote control
%20up%20to%205.5%20kV%0A%C2%A0%0A%0ASmallest%20compact%20generator%20with%207%22%20touch%20screen%0ABurst%205.5%20kV,%20Surge%205.0%20kV%20and%20Power%20Fail%0ABuilt...
){kind=link}
Discover the possibilities
More information
Description
Compact Tester for EFT/Burst, Surge, Telecom-Surge and PowerFail
The compact Next Generation NX5 is the most versatile tester to address transient and power fail requirements for both international and commercial standards.

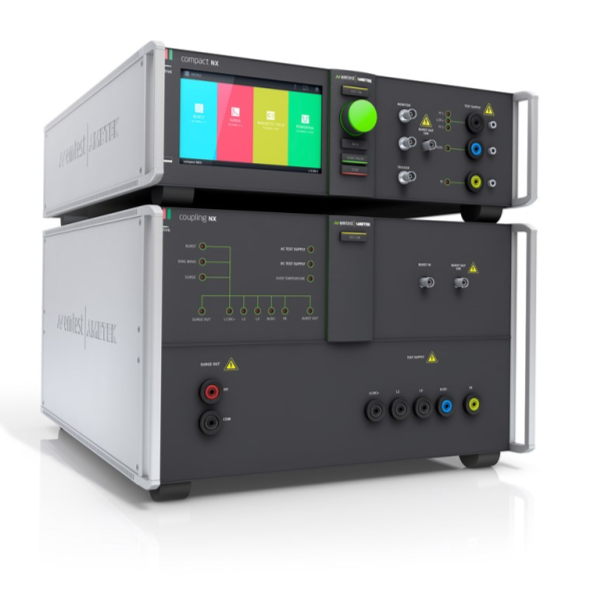

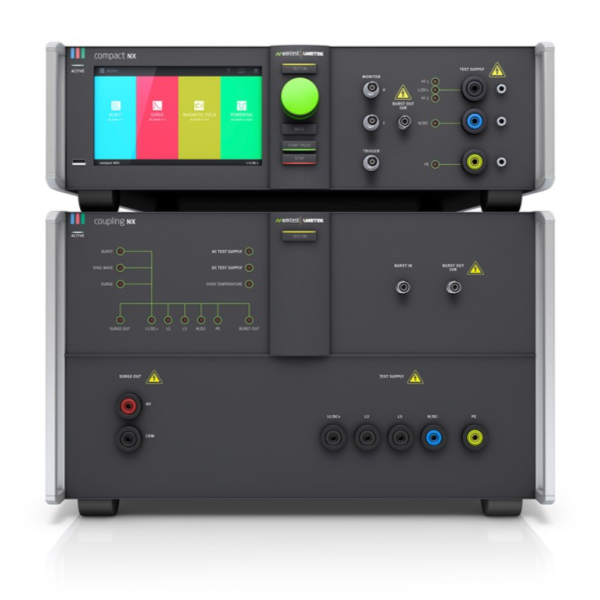

Featuring an easy-to-use color touch screen, the compact NX5 bspt series provides an economical solution for full-compliance testing and CE Marking. Its internal single-phase Coupling/Decoupling Network (CDN) can be extended for testing three-phase EUTs by means of an automatically controlled external CDN up to 200 A per phase. EM TEST supplies a large range of accessories for various applications such as magnetic field tests and more.
For tests according to:
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-8
IEC 61000-4-9
IEC 61000-4-11
IEC 61000-4-29
EN 61000-6-1
EN 61000-6-2
ECE-R10
EN 300329
EN 300340
EN 300342-1
EN 300386 V1.3.2
EN 301489-1
EN 50121
EN 55024
IEC 60255-22-5
FCC 97-270 (part 68)
IEC 61326
IEC 61850-3
Specifications
Documents
Options
Video
