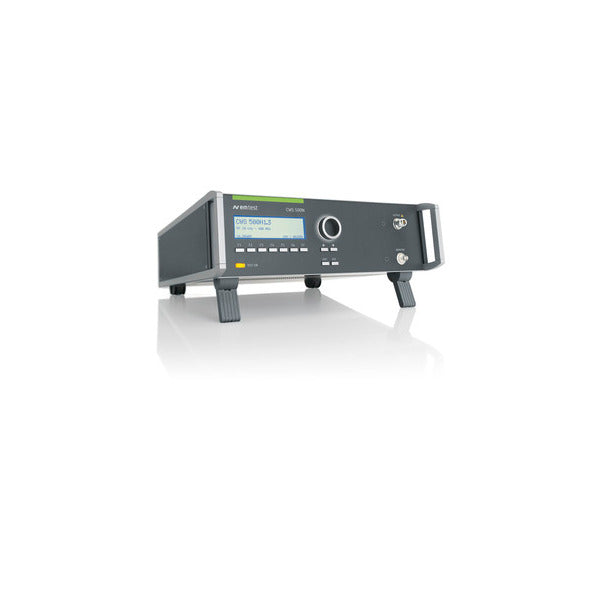

EM TEST CWS500N1.3 RF Conducted Test
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Continuous Wave Simulator, 80W
- Test procedure acc. IEC 61000-4-6 Ed. 4
- Built-in amplifier saturation and linearity check
- Built-in amplifier, 10 kHz to 400 MHz
- Built-in power meter, 9 kHz to 1 GHz
- Built-in dual directional coupler
Discover the possibilities
More information
Description
EM TEST CWS500N1.3 RF Conducted Test
CWS500N1.3 - The single box solution for rf conducted immunity TestingThe CWS 500N1.3 is the most compact single box test equipment for testing conducted rf immunity per IEC 61000-4-6 Ed. 3 and Ed. 4 and related standards with a frequency range of 10 kHz to 400 MHz. Apart from the 1 kHz 80 % AM signal the generator also generates a 2 Hz 80 % AM signal to test medical appliances and a 1 Hz PM signal with 50 % duty cycle required to test safety equipment like fire alarms. Equipped with a 1 GHz current monitor the CWS 500N1.3 can be used up to 1 GHz by means of an external amplifier. EM TEST supplies a large range of CDNs, EM clamp and current injection clamps as well as the corresponding calibration accessories. Full compliant levelling can be run from the front panel of the CWS 500N1.3 storing the results in 5 memory spaces is available.
