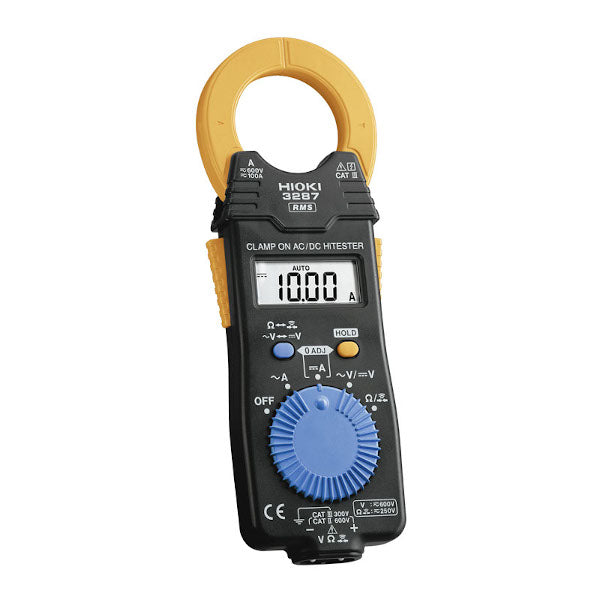

DEMO Hioki 3287 AC/DC Clamp Meter
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Accurately measure even small currents with 10 A range
- Voltage, resistance, and continuity check functions
Discover the possibilities
More information
Description
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage)
Key Features
• Accurately measure even small currents with 10 A range
• Voltage, resistance, and continuity check functions
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| DC Current range | 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|---|---|
| AC Current range | 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC Voltage range | 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)Basic accuracy: ±2.3 % rdg. ±8 dgt. |
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt |
| Crest factor | 2.5 or less (150 A, 1000 V max.) |
| Other functions | Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display | LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 25 hours |
| Core jaw dia. | φ 35 mm (1.38 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz) |
| Accessories | Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1 |
Documents
Datasheet
Options
Video
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage)
Key Features
• Accurately measure even small currents with 10 A range
• Voltage, resistance, and continuity check functions
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| DC Current range | 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|---|---|
| AC Current range | 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC Voltage range | 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)Basic accuracy: ±2.3 % rdg. ±8 dgt. |
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt |
| Crest factor | 2.5 or less (150 A, 1000 V max.) |
| Other functions | Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display | LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 25 hours |
| Core jaw dia. | φ 35 mm (1.38 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz) |
| Accessories | Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1 |
